Product Recognition | |
|---|
Certification Number | ZC10-21097049 |
|---|

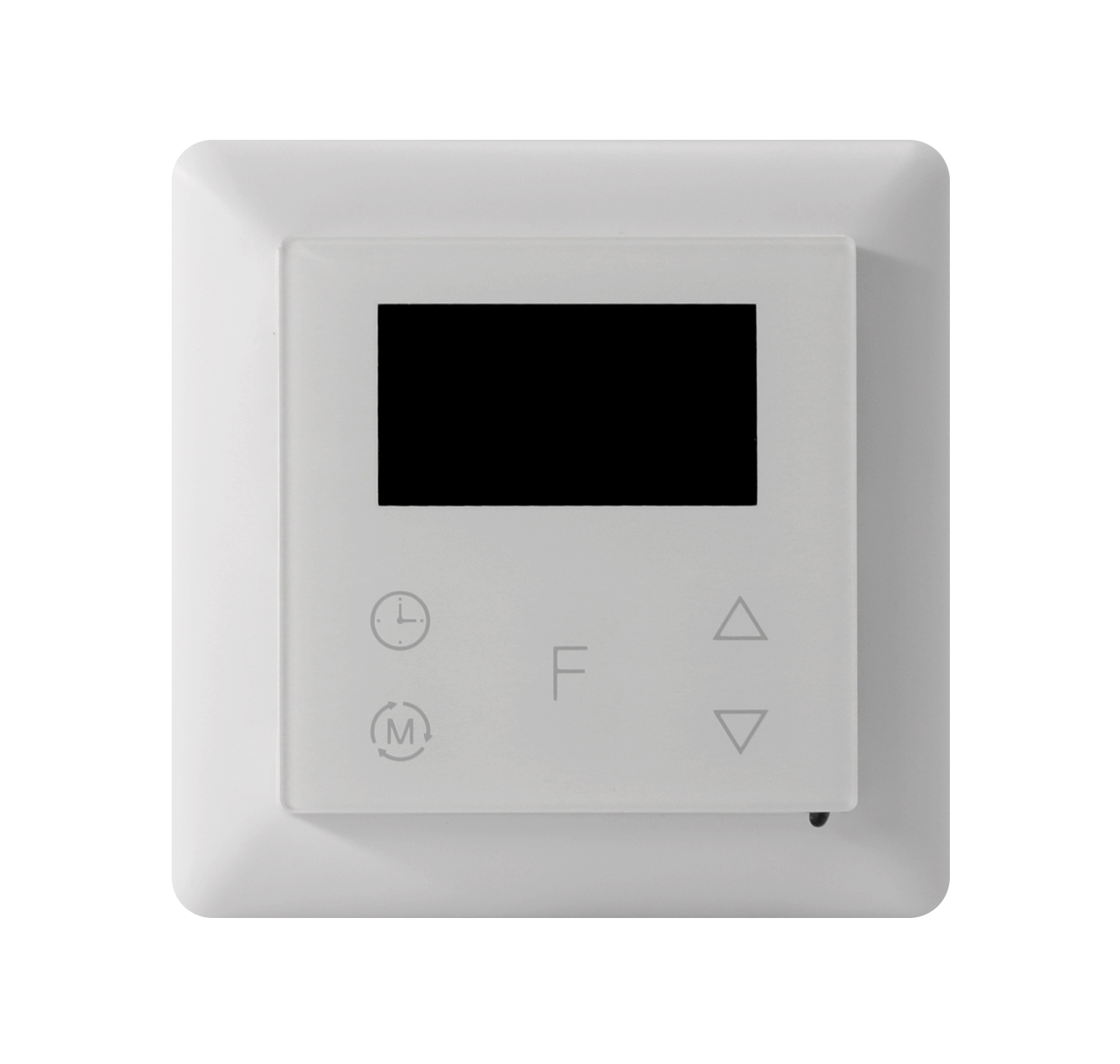

Name | Thermostat-Heating |
|---|
Short Description | The Z-Wave™ HVAC controller is a wireless thermostat for heating system, which complies to Z-Wave Plus™
wireless protocol standards. The thermostat has 4 operation modes which can be controlled manually and
locally or through remote controlled through Z-Wave primary controller (gateway) |
|---|
Long Description | Product features:
● OLED display and touch buttons
● also as remote control other thermostats for heating
● Internal sensor for room temperature , external Internal sensor for floor temperature
● Max Load 3680W @ 230V (resistive load),16A
● Alarm: over current, room temperature over heat
● Electric power measurement
● Internal overheating protection |
|---|
Brand | Sunricher |
|---|
Product Identifier | SR-ZV9092A-EU |
|---|
Product Line | SR-ZV9092A |
|---|
OEM Version | HW: 1 FW: 1.24 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.82.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Thermostat - HVAC |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0330 |
|---|
Product Type ID | 0x0200 |
|---|
Product ID | 0xD013 |
|---|
User Icon | 0x1200 |
|---|
Installer Icon | 0x1200 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Thermostats, HVAC |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_THERMOSTAT_OPERATING_STATE | Thermostat Operating State | 0x42 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V2 | Thermostat Setpoint V2 | 0x43 | 2 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_METER_V3 | Meter V3 | 0x32 | 3 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V2 | Thermostat Setpoint V2 | 0x43 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | | Manual_English | Product Manual in English | |
|
|---|
Features | Feature | Values |
|---|
Thermostat Modes | | Firmware Updatable | | Switch Load Capacity Current | | Switch Load Capacity Volt-Ampere | | Switch Load Capacity Watts | | Thermostat HVAC Systems Supported | | Thermostat Power Source | | Electric Load Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | Lifeline：same main report | 2 | 5 | 0 | Heat Set | 0x2001 | Transfer Command Class THERMOSTAT_SETPOINT_SET
，THERMOSTAT_MODE_SET to control other Thermostat when operation
changes |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
10 | Parameter 10 | Temperature control reference selection | 1 | 1 | 1 | 3 | 1 | From | To | Description |
|---|
1 | 1 | room sensor | 2 | 2 | floor sensor | 3 | 3 | room+floor sensor |
| 4 | Parameter 4 | Whether to recover to settings before power failure or power reset. | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | use default settings | 1 | 1 | recover to settings before power failure or power reset |
| 11 | Parameter 11 | ROOM SENSOR temperature compensation setting,unit is 0.5℃ | 1 | 1 | -10 | 10 | 0 | From | To | Description |
|---|
-10 | 10 | value is -5℃~5℃ |
| 23 | Parameter 23 | is parameter defines which sensor temperature will be displayed on Home page | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | indoor air temperature | 1 | 1 | external temperature (floor temperature) |
| 3 | Parameter 3 | Vibration level triggered by pressing buttons
| 1 | 1 | 0 | 2 | 1 | From | To | Description |
|---|
0 | 0 | disable vibration and buzzer | 1 | 1 | Low Level | 2 | 2 | High Level |
| 9 | Parameter 9 | Select floor temperature sensor type
| 1 | 1 | 1 | 4 | 1 | From | To | Description |
|---|
1 | 1 | NTC/10K B(25/50℃)=3950 | 2 | 2 | NTC/15K B(25/50℃)=3950 | 3 | 3 | NTC/50K B(25/50℃)=3950 | 4 | 4 | NTC/100K B(25/50℃)=3950 |
| 8 | Parameter 8 | Auto mode (Energy save mode) temperature schedule. | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | use schedule set by user | 1 | 1 | use Energy_Save_Heating temperature set by THERMOSTAT_SETPOINT_SET |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | page 4 ：Z-Wave Set Introduction
lf the user's gateway also supports smartstart, add the device by scanning the QR code,Smartstart allows
users to quickly add devices to the gateway by scanning the device's QR code.
After scanning to add the device, reset power of the device or waiting for a while, the device will be added to the
gateway automatically. Please find the QR code on the casing of the device. | 1 | Classic Inclusion | Adding to a Z-Wave Network (Inclusion)
Method 1: Select “Add”, then short press button , the device will send out inclusion request, “Status” will
show “Inclusion...”. If there is no response from a gateway within 30 seconds, or inclusion failed, “Status” will
show “Fail”. If included successfully, “Status” will show “Inclusion OK” and device ID.
Method 2: Operate the gateway into inclusion mode, make sure the device is already removed from previous
network, reset power of the device, the device will be included to the gateway automatically | 2 | Classic Exclusion | Removing from a Z-Wave Network (Exclusion)
Select “Remove”, then short press button , the device will send out exclusion request, “Status” will show
“Exclusion...”. If there is no response from a gateway within 30 seconds, or exclusion failed, “Status” will show
“Fail”. If excluded successfully, “Status” will show “Exclusion OK” and device ID will be showed as 0. | 5 | Factory Reset Procedure | Factory Reset (Reset)
Select “Reset”, then short press button F , the device will start reset, “Status” will show “Reset...”. If there is no response from a gateway within 6 seconds, or exclusion failed, “Status” will show “Fail”. If reset
successfully, “Status” will show “Reset OK” |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | Heat sensor status: Overheat detected | Power Management | Over-current status: Over-current detected |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
