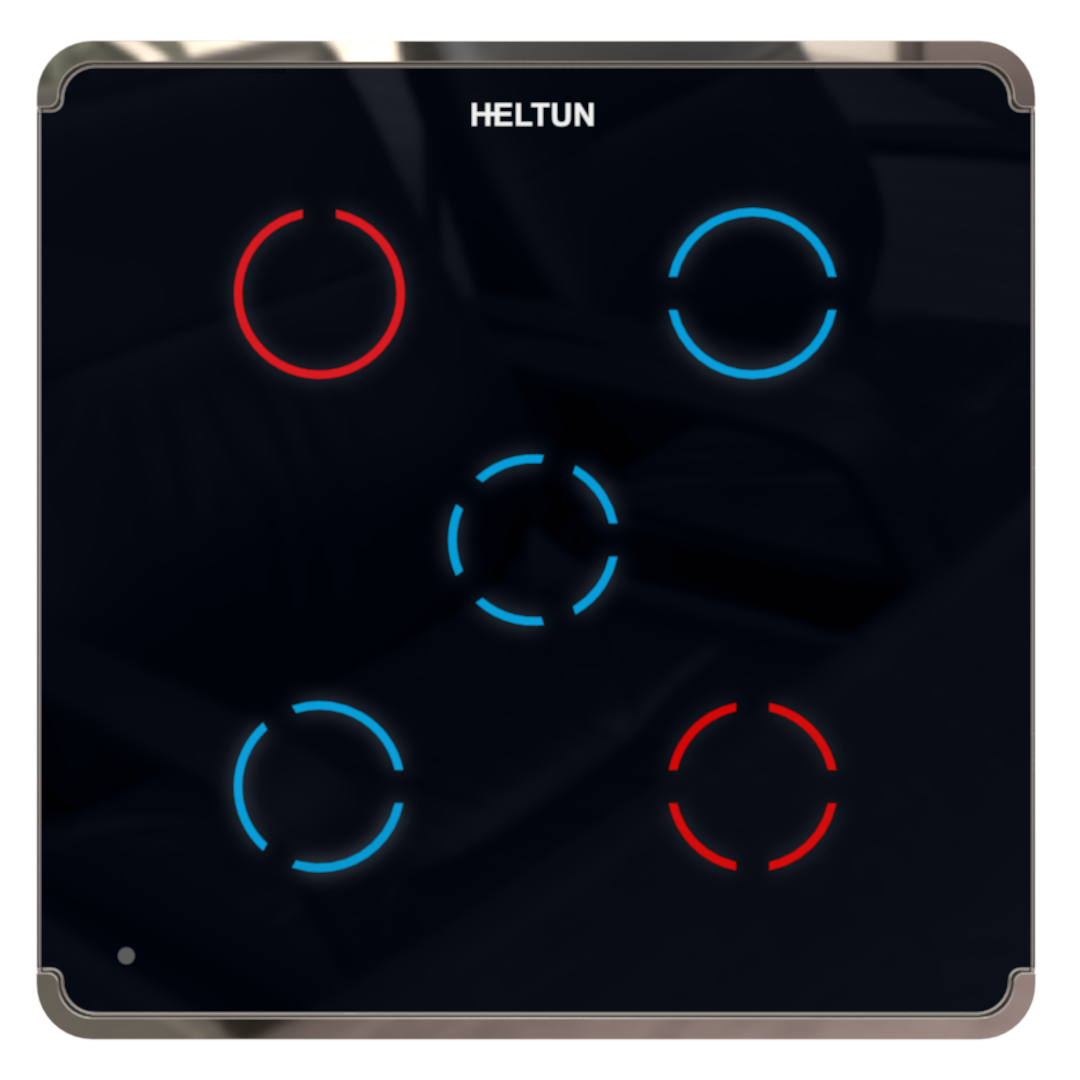

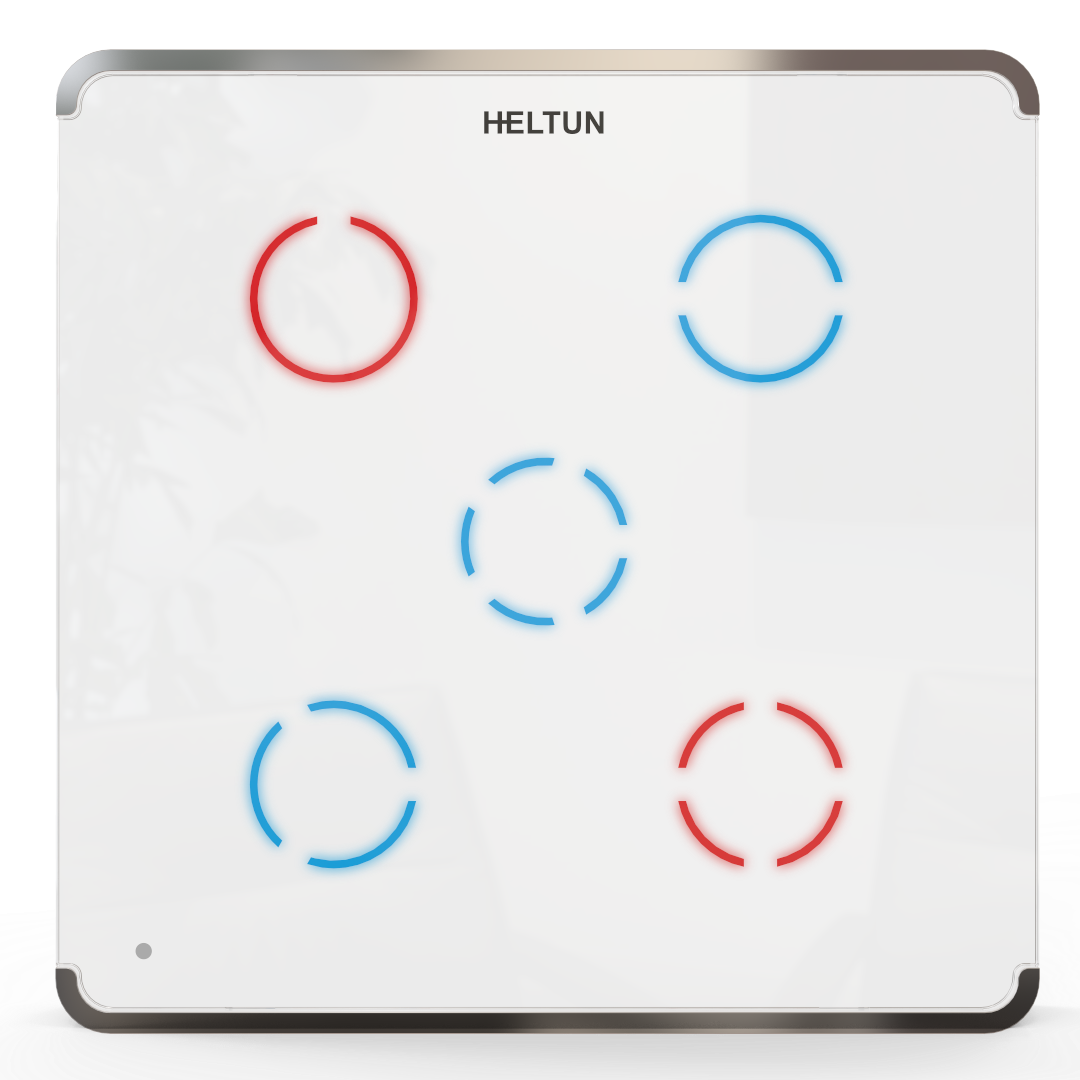

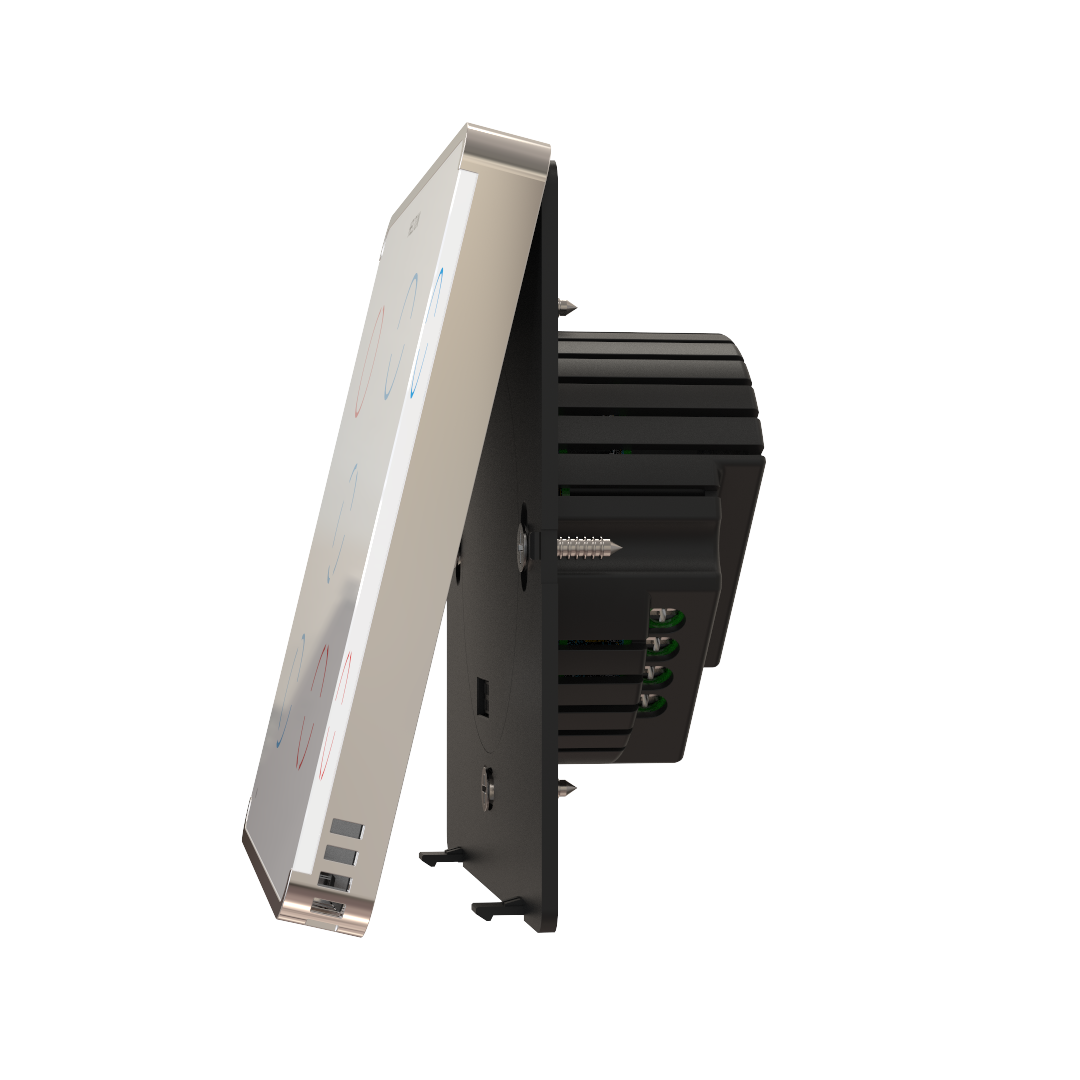

HELTUN HE-TPS05 Touch Panel Switch (Black glass Chrome frame)

Product Recognition

Certification Number

ZC12-20030039

Name

Touch Panel Switch

Short Description

Advanced Programmable Z-Wave Plus v2 Wall Touch Panel Switch—with S2 security and SmartStart on the Z-Wave 700 platform.

Long Description

The HELTUN HE-TPS05 is an advanced programmable Z-Wave Plus v2 touch panel switch that controls many devices, including lights, dimmers, blinds, curtains, door locks, motorized valves, roller shutters, and more. Features: • Five-channel 5-amp relays with dry contact inputs • Five programmable touch buttons with two-color backlights • All buttons fully customizable to control one to five relays • Five modes configurable for each button • Each relay may be controlled by a timer or on a week schedule • Separate relays & backlights control from gateway or associated devices • Controls Scenes of gateway by touch buttons (pressed, held, released) • Built-in light, temperature, and humidity sensors • Power Consumption logic monitors energy usage • 20 association groups • Incorporates HELTUN Advanced Zero-Cross Technology • ‘Impossibly thin’ at only 9mm The HELTUN HE-TPS05 is part of an entire line of smart, connected products designed to provide the best technology has to offer without compromising stylish living.

Brand

HELTUN

Product Identifier

HE-TPS05

Product Line

Wall Touch Panel Switch

OEM Version

HW: 28 FW: 2.01

Hardware Platform

ZGM130

Z-Wave Version

7.11.1

Library Type

SLAVE_ENHANCED_232

Device Type

Central Scene Device

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0344

Product Type ID

0x0004

Product ID

0x0003

User Icon

0x1600

Installer Icon

0x1600

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

All Lighting Devices, On/Off Switches/Devices

Countries / Regions

European Union

Supported Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Features

Association Groups

Group Number	Maximum Nodes Supported	End Point ID	Group Name	Profile	Description
6	1	0	Touch 3 Basic Set	0x2003	Group 4 – “Touch 3 Basic Set”: is assigned to touch N3. Is used to send Basic Set ON (value 255) and Basic Set OFF (value 0) commands to the associated devices.
2	1	0	Touch 1 Basic Set	0x2001	Group 2 – “Touch 1 Basic Set”: is assigned to touch N1. Is used to send Basic Set ON (value 255) and Basic Set OFF (value 0) commands to the associated devices.
4	1	0	Touch 2 Basic Set	0x2002	Group 4 – “Touch 2 Basic Set”: is assigned to touch N2. Is used to send Basic Set ON (value 255) and Basic Set OFF (value 0) commands to the associated devices.
3	1	0	Touch 1 Multilevel Set	0x2001	Group 3 – “Touch 1 Multilevel Set”: is assigned to touch N1. It sends MULTILEVEL SWITCH command class frame when touch N1 was held. Is used to send UP/DOWN command to the associated devices.
1	1	0	Lifeline	0x0001	This is the Lifeline Group 1 which sends status (lifeline) reports to the primary controller.
5	1	0	Touch 2 Multilevel Set	0x2002	Group 5 – “Touch 2 Multilevel Set”: is assigned to touch N2. It sends MULTILEVEL SWITCH command class frame when touch N1 was held. Is used to send UP/DOWN command to the associated devices.
10	1	0	Touch 5 Basic Set	0x2005	Group 10 – “Touch 5 Basic Set”: is assigned to touch N5. Is used to send Basic Set ON (value 255) and Basic Set OFF (value 0) commands to the associated devices.
8	1	0	Touch 4 Basic Set	0x2004	Group 8 – “Touch 4 Basic Set”: is assigned to touch N4. Is used to send Basic Set ON (value 255) and Basic Set OFF (value 0) commands to the associated devices.
7	1	0	Touch 3 Multilevel Set	0x2003	Group 7 – “Touch 3 Multilevel Set”: is assigned to touch N3. It sends MULTILEVEL SWITCH command class frame when touch N1 was held. Is used to send UP/DOWN command to the associated devices.
11	1	0	Touch 5 Multilevel Set	0x2005	Group 11 – “Touch 5 Multilevel Set”: is assigned to touch N5. It sends MULTILEVEL SWITCH command class frame when touch N1 was held. Is used to send UP/DOWN command to the associated devices.
9	1	0	Touch 4 Multilevel Set	0x2004	Group 9 – “Touch 4 Multilevel Set”: is assigned to touch N4. It sends MULTILEVEL SWITCH command class frame when touch N1 was held. Is used to send UP/DOWN command to the associated devices.
17	1	6	Relay 1 Basic Set	0x200B	Group 17 – “Relay 1 Basic Set”: is assigned to relay N1. Is used to send Basic Set ON (value 255) and Basic Set OFF (value 0) commands to the associated devices.

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

TIME CORRECTION

Time correction by controller

From	To	Description
0	0	Switch off auto-correction
1	0	If TPS05 is connected to a Z-Wave gateway, the time and day will be periodically polled and corrected from the gateway

TEMPERATURE REPORT THRESHOLD

Temperature difference to send to controller, value X 10

100

From	To	Description
0	0	Stop sending the reports
1	100	Temperature report threshhold (in °C)

WEEKDAY

The day of the week (starting from Monday)

From	To	Description
5	0	Friday
6	0	Saturday
7	0	Sunday
1	0	Monday
2	0	Tuesday
3	0	Wednesday
4	0	Thursday

HOUR

Time Hour

From	To	Description
0	23	Time Hour in 24 hour format

MINUTE

Time Minute

From	To	Description
0	59	Manual adjustment of time minutes (60 minutes)

HUMIDITY REPORT THRESHOLD

Humidity difference to send to controller, value X 10

From	To	Description
0	0	Stop sending the reports
1	25	Humidity difference to send to controller, value X 10

LIGHT REPORT THRESHOLD

Luminance difference to send to controller in %

From	To	Description
0	0	Stop sending the reports
10	90	The percentage (%) change in ambient illumination that results in a light sensor report being sent to the gateway

TEMP SENSOR CORRECTION

Temperature sensor calibration, x10

-100

100

From	To	Description
-100	100	Air temperature offset value (°C x 10)

CLICK2 CONTROL MODE

Click control mode for touch button 2

From	To	Description
0	0	Click function disabled
1	1	Relay inverts state (toggles ON to OFF, OFF to ON).
2	2	Relay inverts state (toggles ON to OFF, OFF to ON) according to the button backlight state.
3	3	Relay switches to ON state only.
4	4	Relay switches to OFF state only.
5	5	Timer: On>Off Mode: Relay output switches to ON state (contacts are closed) then after a specified time switches back to OFF state (contacts are open). The time is specified in parameters 35-39.
6	6	Timer: OFF>ON Mode: Relay output switches to OFF state (contacts are open) then after a specified time switches back to ON state (contacts are closed). The time is specified in Parameters 35-39.

BACKLIGHT3 CONTROL SOURCE

Backlight 3 control source

From	To	Description
1	0	Controlled by touch button
0	0	Backlight is disabled (both color LEDs are turned off)
2	0	Controlled by gateway or associated device

RELAY4 CONTROL SOURCE

Relay 4 control source

From	To	Description
5	5	Controlled by touch button N5 (Center)
0	0	Controlled by gateway or associated device
1	1	Controlled by touch button N1 (Top Left)
2	2	Controlled by touch button N2 (Top Right)
3	3	Controlled by touch button N3 (Bottom Left)
4	4	Controlled by touch button N4 (Bottom Right)

RELAY5 CONTROL SOURCE

Relay 5 control source

From	To	Description
0	0	Controlled by gateway or associated device
1	1	Controlled by touch button N1 (Top Left)
2	2	Controlled by touch button N2 (Top Right)
3	3	Controlled by touch button N3 (Bottom Left)
4	4	Controlled by touch button N4 (Bottom Right)
5	5	Controlled by touch button N5 (Center)

HOLD1 CONTROL MODE

Hold control mode for touch button 1

From	To	Description
1	1	Operate like click
2	2	When the button is held the relay output state is ON, as soon as the button is released the relay output state changes to OFF (momentary switch).
3	3	When the button is held the relay output state is OFF, as soon as the button is released the relay output state changes to ON (momentary switch).
0	0	Hold function is disabled

RELAY CONTROL SCENARIO1

Relays control by sensors Group 1 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)

53112359

From	To	Description
0	0	Scenario function is disabled
1	53112359	Behavior according to the encoded scenario

RELAY CONTROL SCENARIO2

Relays control by sensors Group 2 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)

53112359

From	To	Description
0	0	Scenario function is disabled
1	53112359	Behavior according to the encoded scenario

RELAY CONTROL SCENARIO4

Relays control by sensors Group 4 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)

53112359

From	To	Description
1	53112359	Behavior according to the encoded scenario
0	0	Scenario function is disabled

RELAY CONTROL SCENARIO3

Relays control by sensors Group 3 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)

53112359

From	To	Description
1	53112359	Behavior according to the encoded scenario
0	0	Scenario function is disabled

RELAY CONTROL SCENARIO5

Relays control by sensors Group 5 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)

53112359

From	To	Description
0	0	Scenario function is disabled
1	53112359	Behavior according to the encoded scenario

RELAY CONTROL SCENARIO6

Relays control by sensors Group 6 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)

53112359

From	To	Description
0	0	Scenario function is disabled
1	53112359	Behavior according to the encoded scenario

RELAY CONTROL SCENARIO9

Relays control by sensors Group 9 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)

53112359

From	To	Description
1	53112359	Behavior according to the encoded scenario
0	0	Scenario function is disabled

RELAY CONTROL SCENARIO8

Relays control by sensors Group 8 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)

53112359

From	To	Description
0	0	Scenario function is disabled
1	53112359	Behavior according to the encoded scenario

RELAY CONTROL SCENARIO10

Relays control by sensors Group 10 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)

53112359

From	To	Description
1	53112359	Behavior according to the encoded scenario
0	0	Scenario function is disabled

RELAY1 LOAD POWER

Power load consumption (in Watts) Relay channel 1 in order to calculate total energy consumption relative to the time each relay is ON.

1100

From	To	Description
0	1100	Power load consumption (in Watts)

TOUCH4 ASSOCIATION MODE

Touch control mode for associations with touch button 4. This parameter is intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9, & 11) have been activated. Defines the logic of values changing if one the touch button has been held for more than one second.

From	To	Description
0	0	On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices.
1	0	On each hold event, the “UP (brighten)” command will be sent to associated devices.
2	0	On each hold event, the “DOWN (dim)” command will be sent to associated devices.

RELAY2 LOAD POWER

Power load consumption (in Watts) Relay channel 2 in order to calculate total energy consumption relative to the time each relay is ON.

1100

From	To	Description
0	1100	Power load consumption (in Watts)

TOUCH2 ASSOCIATION MODE

Touch control mode for associations with touch button 2. This parameter is intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9, & 11) have been activated. Defines the logic of values changing if one the touch button has been held for more than one second.

From	To	Description
0	0	On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices.
1	0	On each hold event, the “UP (brighten)” command will be sent to associated devices.
2	0	On each hold event, the “DOWN (dim)” command will be sent to associated devices.

RELAY3 LOAD POWER

Power load consumption (in Watts) Relay channel 3 in order to calculate total energy consumption relative to the time each relay is ON.

1100

From	To	Description
0	1100	Power load consumption (in Watts)

RELAY5 LOAD POWER

Power load consumption (in Watts) Relay channel 5 in order to calculate total energy consumption relative to the time each relay is ON.

1100

From	To	Description
0	1100	Power load consumption (in Watts)

TOUCH3 ASSOCIATION MODE

Touch control mode for associations with touch button 3. This parameter is intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9, & 11) have been activated. Defines the logic of values changing if one the touch button has been held for more than one second.

From	To	Description
0	0	On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices.
1	0	On each hold event, the “UP (brighten)” command will be sent to associated devices.
2	0	On each hold event, the “DOWN (dim)” command will be sent to associated devices.

TOUCH5 ASSOCIATION MODE

Touch control mode for associations with touch button 5. This parameter is intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9, & 11) have been activated. Defines the logic of values changing if one the touch button has been held for more than one second.

From	To	Description
0	0	On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices.
1	0	On each hold event, the “UP (brighten)” command will be sent to associated devices.
2	0	On each hold event, the “DOWN (dim)” command will be sent to associated devices.

RELAY4 LOAD POWER

Power load consumption (in Watts) Relay channel 4 in order to calculate total energy consumption relative to the time each relay is ON.

1100

From	To	Description
0	1100	Power load consumption (in Watts)

TOUCH1 ASSOCIATION MODE

Touch control mode for associations with touch button 1. This parameter is intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9, & 11) have been activated. Defines the logic of values changing if one the touch button has been held for more than one second.

From	To	Description
1	0	On each hold event, the “UP (brighten)” command will be sent to associated devices.
0	0	On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices.
2	0	On each hold event, the “DOWN (dim)” command will be sent to associated devices.

RELAY CONTROL SCENARIO7

Relays control by sensors Group 7. 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)

53112359

From	To	Description
0	0	Scenario function is disabled
1	53112359	Behavior according to the encoded scenario

Texts

Supported / Controlled Meter Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
