TRF-ZW10 – Z-Wave Alliance Product Catalog

Back to Listing

Product Recognition

Certification Number

ZC12-21080300

Name

TRF-ZW10

Short Description

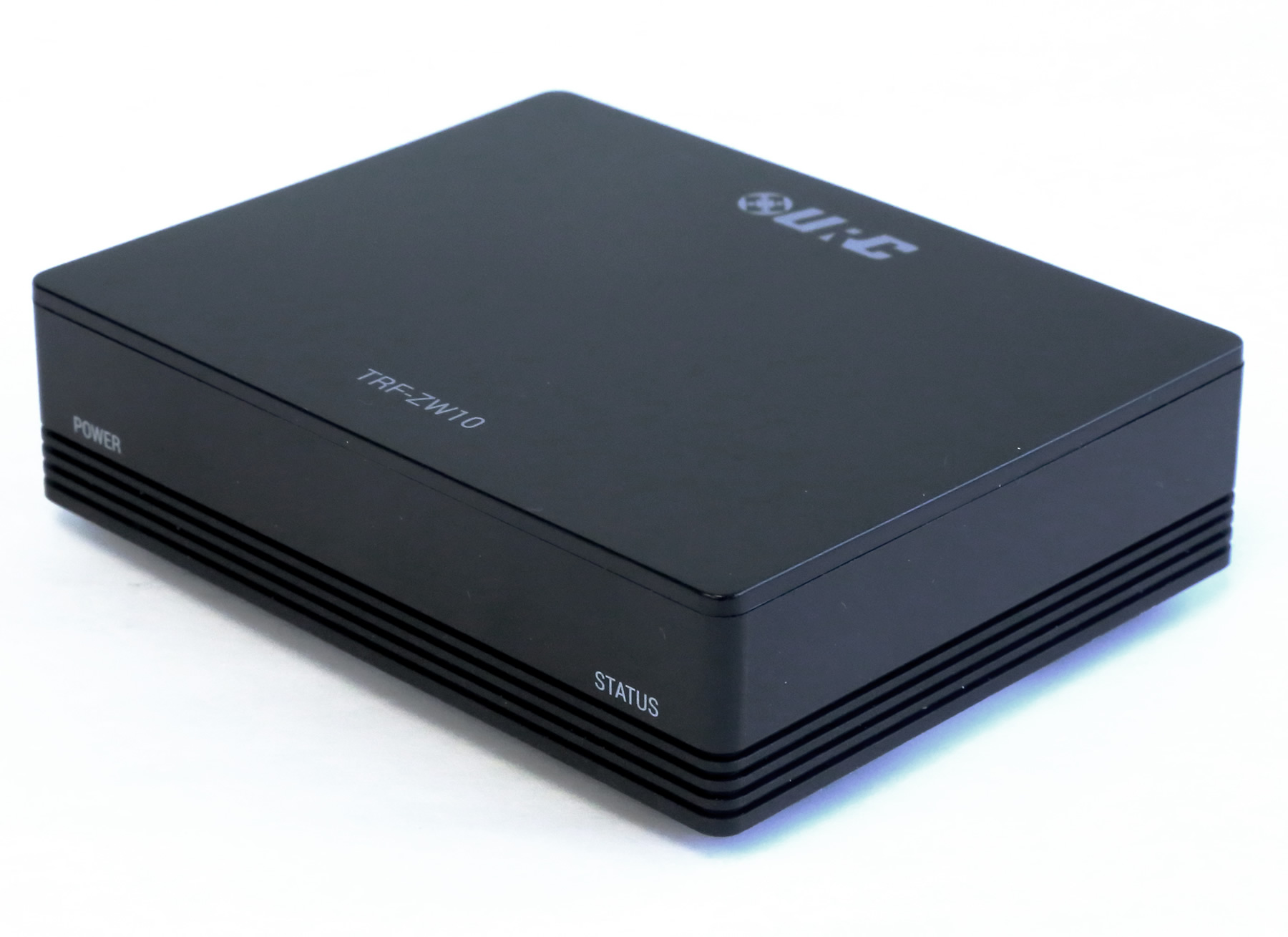

The TRF-ZW10 Z-Wave™ controller allows for seamless integration of Z-Wave devices into the URC Total Control ecosystem.

Long Description

The TRF-ZW10 is a Z-Wave™ controller that seamlessly integrate s into URC's premium control system "Total Control". The TRF-ZW10 utilizes the latest Z-Wave chipset (700 Series) to create a reliable, robust, and easy to use system. Combined with the URC Z-Wave lighting solution a user can scale from a few lights to whole house control with ease. Installation requires the URC Accelerator software. The TRF-ZW10 can be powered via a DC input or with Power Over Ethernet for a clean and easy installation.

Brand

Universal Remote Control, Inc.

Product Identifier

TRF-ZW10

Product Line

Total Control

OEM Version

HW: 1 FW: 7.15:07.15

Hardware Platform

ZGM130

Z-Wave Version

7.15.2

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x0445

Product Type ID

0x0020

Product ID

0x0001

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

All Controllers, Computer Controller Interfaces

Countries / Regions

United States of America, Colombia

Supported Command Classes

Controlled Command Classes

Identifier	Name	Key	Version
COMMAND_CLASS_NODE_PROVISIONING	Node Provisioning	0x78	1
COMMAND_CLASS_NETWORK_MANAGEMENT_INSTALLATION_MAINTENANCE_V2	Network Management Installation and Maintenance V2	0x67	2
COMMAND_CLASS_SWITCH_BINARY_V2	Switch Binary V2	0x25	2
COMMAND_CLASS_POWERLEVEL	Powerlevel	0x73	1
COMMAND_CLASS_THERMOSTAT_FAN_MODE_V4	Thermostat Fan Mode V4	0x44	4
COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2	Thermostat Operating State V2	0x42	2
COMMAND_CLASS_INCLUSION_CONTROLLER	Inclusion Controller	0x74	1
COMMAND_CLASS_DOOR_LOCK_V4	Door Lock V4		0
COMMAND_CLASS_ASSOCIATION_V3	Association V3		0
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V4	Multi-Channel Association V4		0
COMMAND_CLASS_INDICATOR_V3	Indicator V3	0x87	3
COMMAND_CLASS_BATTERY	Battery	0x80	1
COMMAND_CLASS_APPLICATION_STATUS	Application Status	0x22	1
COMMAND_CLASS_TIME	Time	0x8A	1
COMMAND_CLASS_TIME_PARAMETERS	Time Parameters	0x8B	1
COMMAND_CLASS_CRC_16_ENCAP	CRC16 Encapsulation	0x56	1
COMMAND_CLASS_SECURITY	Security S0	0x98	1
COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2	Thermostat Fan State V2	0x45	2
COMMAND_CLASS_THERMOSTAT_MODE_V3	Thermostat Mode V3	0x40	3
COMMAND_CLASS_THERMOSTAT_SETPOINT_V3	Thermostat Setpoint V3	0x43	3
COMMAND_CLASS_TRANSPORT_SERVICE_V2	Transport Service V2	0x55	2
COMMAND_CLASS_WAKE_UP_V2	Wake Up V2	0x84	2
COMMAND_CLASS_DEVICE_RESET_LOCALLY	Device Reset Locally	0x5A	1
COMMAND_CLASS_ZWAVEPLUS_INFO_V2	Z-Wave Plus Info V2	0x5E	2
COMMAND_CLASS_ANTITHEFT_UNLOCK	Anti-Theft Unlock		0
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5	Firmware Update Meta-Data V5	0x7A	5
COMMAND_CLASS_MULTI_CHANNEL_V4	Multi-Channel V4	0x60	4
COMMAND_CLASS_SWITCH_MULTILEVEL_V4	Switch Multilevel V4	0x26	4
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3	Association Group Information V3	0x59	3
COMMAND_CLASS_NETWORK_MANAGEMENT_INCLUSION_V3	Network Management Inclusion V3	0x34	3
COMMAND_CLASS_NOTIFICATION_V8	Notification V8	0x71	8
COMMAND_CLASS_BASIC_V2	Basic V2	0x20	2
COMMAND_CLASS_SECURITY_2	Security S2	0x9F	1
COMMAND_CLASS_METER_V5	Meter V5	0x32	5
COMMAND_CLASS_NETWORK_MANAGEMENT_BASIC_V2	Network Management Basic V2	0x4D	2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11	Sensor Multilevel V11	0x31	11
COMMAND_CLASS_VERSION_V3	Version V3	0x86	3
COMMAND_CLASS_CENTRAL_SCENE_V3	Central Scene V3	0x5B	3
COMMAND_CLASS_SUPERVISION	Supervision	0x6C	1
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2	Manufacturer Specific V2	0x72	2
COMMAND_CLASS_MULTI_CMD	Multi-Command	0x8F	1

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL

Documents

Association Groups

Texts

ID	Description	Value
8	Where to find S2 DSK on product	The TRF-ZW10’s DSK can be found on the bottom of the TRF-ZW10 and also on the bottom of the product packaging.
3	Controller Learn Mode	Learn Mode: Places the TRF-ZW10 into “learn mode” so a 3rd party controller can include it. After Learn Mode is activated, the TRF's Learn Mode DSK will be advertised in the application log. Enter it on the including controller side.
10	Controller Replication	Controller Replication: Controller Replication is the process of updating network information from a primary controller to secondary controllers, such as the node list and routing information. These steps are usually not required unless you have a multiple controllers on the network. 1. Start Add Mode on the primary controller. 2. Start Learn Mode on the secondary controller. 3. All Z-Wave network relevant information will be updated for the secondary controller
25	Controller Provisioning List	SmartStart Provisioning List The SmartStart provisioning list provides the status of all SmartStart devices that have been or are ready for inclusion. When excluding a SmartStart device, one must first remove the device from the provisioning list or it may automatically be added back to the network. To access the provisioning list, perform the following: 1. Select Tools from the Devices tab. 2. Select SmartStart Inclusion. 3. Select the device to be removed from the provisioning list and click Delete Selected. Repeat this step for each device to be removed. 4. The device has been removed from the provisioning list and can now be excluded from the network. Select Close to exit the provisioning list.
5	Factory Reset Procedure	Resets the memory of the TRF-ZW10 to factory settings. All existing programming is erased. The gateway requires a download from the URC software in order to be programmed again. If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. To factory default the TRF-ZW10, turn the gateway over and locate the Reset button. Using a thin object, press and hold the button down for fifteen (15) seconds. WARNING! Only use this button when instructed by URC’s Technical Support team
9	Capability Rediscovery	When a node needs to have its capabilities rediscovered, the node must be excluded and then re-included to the network for any new or changed capabilities to be recognized
23	Controller Classic Inclusion	TRF-ZW10 Programming - Including Devices Including a device on the TRF-ZW10 enables the gateway and Total Control the ability to control and view the status of that device. Prior to including a Z-Wave device, assure that the device has not been included to another gateway and that the device has been properly installed (if applicable). If the Z-Wave device inclusion fails, try to exclude the device first (instructions on page 36) and then attempt to include the device. Perform the following steps to include a Z-Wave device: 1. Select Step 10: URC Subsystems. 2. Select the TRF-ZW10 sub-step. 3. Click on the Devices tab. 4. Select Include Node. 5. The New Device window displays, perform the following: A. Name: Enter a custom label (Dining Room Lights) for the Z-Wave device, this name is displayed on the user interface. B. Room: Use the available drop-down menu to select an available room (i.e. Dining Room) in the Total Control system. This Z-Wave device is available for control within the interface of the selected room. C. Select OK. 6. The Include a Node window displays indicating the TRF-ZW10 gateway is in Inclusion Mode. Locate the Include Device to Z-Wave Network button the physical Z-Wave device and press it to begin the inclusion process. 7. If supported, the Security 2 Accept window displays. This message only displays if the Z-Wave device supports S2 Security. Below are the types of S2 authentications that are supported: • S2 Unauthenticated: Does not require a pin code. • S2 Authenticated: A pin code is required; however, if one is not provided the gateway includes the device as if it were S2 unauthenticated. • S2 Controlled: Requires a pin code and if one is not provided the device does not get included. Click Yes to configure the device using S2 and enter the security code in the next window that displays. The DSK security code determines if the device is S2 Authenticated or Controlled. 8. Wait till the inclusion process completes. Once done, select Close. 9. Repeat these steps for each Z-Wave device that needs to be included.
11	Controller SmartStart Inclusion	SmartStart Inclusion SmartStart enabled products can be added into a Z-Wave network by entering the DSK labeled on the product. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network’s vicinity. This requires a SmartStart compatible Z-Wave device, follow the steps below: 1. Select Step 10: URC Subsystems. 2. Select the TRF-ZW10 sub-step. 3. Click on the Devices tab. 4. Click on Refresh Node Info. This tells Accelerator to connect to the TRF-ZW10 and request all available node information. 5. Select Tools. The Gateway Tools window is displayed. 5. Click on SmartStart Inclusion. 6. Select Include New Z-Wave Device. The New Device window is displayed. URC software does NOT support the use of QR code scanning for SmartStart inclusion. The full DSK must be used. 7. Perform the following: A. Provide the SmartStart device with a custom name, this label is how the device displays on any URC interface. B. Using the available drop-down menu, select the Room where the SmartStart device should be placed. Generally, this is where the device is physically located. C. Select OK. 8. The Enter the DSK window appears, enter the unique DSK value that is physically found on the SmartStart device and click Apply. The devices have been added to the SmartStart Provisioning List. After a device DSK has been entered, the device can be powered up in order to be automatically included by the TRF. The TRF-ZW10’s DSK can be found on the bottom of the TRF-ZW10 and also on the bottom of the product packaging.
24	Controller Classic Exclusion	TRF-ZW10 Programming - Excluding Devices Excluding a device permanently removes it from the TRF-ZW10. Once a device has been excluded from the gateway, it needs to be re-included in order for the TRF-ZW10 to control it again. In some circumstances, the Z-Wave device must first be excluded prior to being included on the TRF-ZW10. Perform the following steps to exclude a Z-Wave device: 1. Select Step 10: URC Subsystems. 2. Select the TRF-ZW10 sub-step. 3. Click on the Devices tab. 4. Select Exclude Node. When a node needs to have its capabilities rediscovered, the node must be excluded and then re-included to the network for any new or changed capabilities to be recognized. 5. View the Exclude a Node window. This screen informs the programmer when the TRF-ZW10 has entered Exclusion mode. 6. Enable “Exclude Mode” for the device you want to exclude. Each device has its own method entering “Exclude Mode”, so please consult the owner’s manual for each device to be excluded. For excluding SmartStart devices, it is recommended to remove the node from the Provisioning List before removing it from the network, otherwise it may be added back to the network automatically by SmartStart. To remove or edit the SmartStart Provisioning List, refer to page 36.

Supported / Controlled Meter Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
