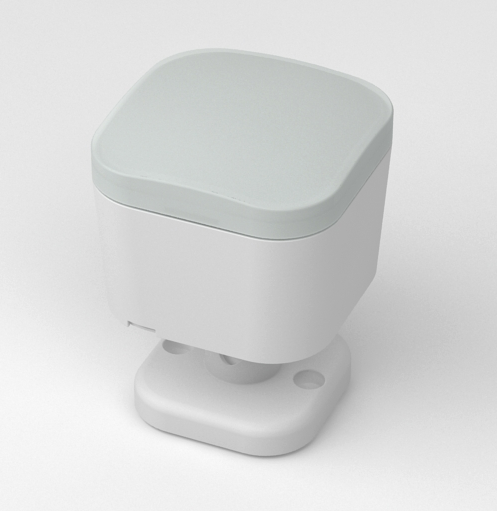

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Firmware Update Meta-Data V4

0x7A

4

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_SENSOR_BINARY_V2

Sensor Binary V2

0x30

2

COMMAND_CLASS_SENSOR_MULTILEVEL_V7

Sensor Multilevel V7

0x31

7

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_WAKE_UP_V2

Wake Up V2

0x84

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_BASIC

Basic

0x20

1

Manual_Primary_Lang

Product or Owner's Manual

Battery Type

Color

Sensors

Supported Notification Types

Battery Quantity

2

5

0

Group 2 is controlling group, all nodes associated in this group will be controlled through BASIC_SET command by the device when device detects a movement event. Basic Set Value is decided by Configuration Parameter 6. CommandClass: COMMAND_CLASS_BASIC (HomeSecurity) Command: BASIC_SET

1

5

0

Group 1 is lifeline group; all nodes which associated in this group will receive the messages sent by device throughlifeline. CommandClass: COMMAND_CLASS_NOTIFICATION COMMAND_CLASS_SENSOR_BINARY COMMAND_CLASS_SENSOR_MULTILEVEL COMMAND_CLASS_BATTERY COMMAND_CLASS_DEVICE_RESET_LOCALLY Command: NOTIFICATION_REPORT SENSOR_BINARY_REPORT SENSOR_MULTILEVEL_REPORT BATTERY_REPORT DEVICE_RESET_LOCALLY_NOTIFICATION

3

5

0

Group 3 is controlling group, all nodes associated in this group will be controlled through BASIC_SET command by the device when device detects an ambient temperature alarm (Decided by Configuration Parameter 7). CommandClass: COMMAND_CLASS_BASIC(Temperature) Command: BASIC_SET

3

Motion Sensitivity

This parameter is configured the sensitivity that motion detect. 0 – PIR sensor disabled. 1 – Lowest sensitivity. 11– Highest sensitivity.

0

1

0

0

11

4

Binary Sensor Report Enable

‘0’ –Disable sensor binary report when motion event is detected or cleared. ‘1’ –Enable sensor binary report when motion event is detected or cleared.

0

1

0

0

0

6

Basic Set Value Settings for Group 2

‘0’ – Send BASIC_SET = 0xFF to devices associated in Group 2 when motion event is triggered, send BASIC_SET = 0x00 to devices associated in group 2 when motion event is cleared. ‘1’– Send BASIC_SET = 0x00 to devices associated in Group 2 when motion event is triggered, send BASIC_SET = 0xFF to devices associated in group 2 when motion event is cleared. ‘2’ – Send BASIC_SET = 0xFF to devices associated in Group 2 when motion event is triggered. ‘3’ – Send BASIC_SET = 0x00 to devices associated in Group 2 when motion event is triggered. ‘4’ – Send BASIC_SET = 0x00 to devices associated in Group 2 when motion event is cleared. ‘5’ – Send BASIC_SET = 0xFF to devices associated in Group 2 when motion event is cleared.

0

1

0

0

0

7

Temperature Alarm Value

This parameter is configured the threshold value that alarm level for temperature. When the current ambient temperature value is larger than this configuration value, device will send a BASIC_SET = 0xFF to nodes associated in group 3. If current temperature value is less than this value, device will send a BASIC_SET = 0x00 to nodes associated in group 3. Value = [Value] × 0.1(Celsius / Fahrenheit)

0

2

0

0

239

10

Led Indicate Disable

This parameter is configured the Led light on disable or enable. ‘1’ – Enable Led Blink when device detects a motion event. ‘0’ – Disable Led Blink. This configuration is not affect inclusion, exclusion and reset.

0

1

0

0

1

2

Motion Clear Time

This parameter is configured the time to clear motion event after a motion event detected. Time to motion clear, the device will send a clear event report to controller and send BASIC_SET = 0x00 to nodes associated in group 2. Unit: Second.

0

2

0

0

240

11

Led Color For Motion Event Report ‘0’ – Disable.

‘0’ – Disable. ‘1’ – Red. ‘2’ –Green. ‘3’ – Blue. ‘4’ – Yellow. ‘5’ – Pink. ‘6’ – Cyan. ‘7’ – Purple. ‘8’ – Orange.

0

1

0

0

2

23

Temperature Sensor Report Interval

This parameter is configured the time interval for temperature sensor report. This value is larger, the battery life is longer. And the temperature value changed is not obvious. Unit: Second.

0

2

0

0

3600

24

Light Sensor Report Interval

This parameter is configured the time interval for light sensor report. This value is larger, the battery life is longer. And the light intensity changed is not obvious. Unit: Second.

0

2

0

0

3600

31

Light Intensity Offset Value

The current measuring light intensity value can be add and minus a value by this setting.

0

2

0

0

0

100

Light Sensor Calibrated Coefficient

This configuration defines the calibrated scale for ambient light intensity. Because the method and position that the sensor mounted and the cover of sensor will bring measurement error, user can get more real light intensity by this parameter setting. User should run the steps as blows for calibrating 1) Set this parameter value to default (Assumes the sensor has been added in a Z- Wave Network). 2) Place a digital luxmeter close to sensor and keep the same direction, monitor the light intensity value (Vm) which report to controller and record it. The same time user should record the value (Vs) of luxmeter. 3) The scale calibration formula: k = Vm / Vs. 4) The value of k is then multiplied by 1024 and rounded to the nearest whole number. 5) Set the value getting in 5) to this parameter, calibrate finished. For example, Vm = 300, Vs = 2600, then k = 2600 / 300 = 8.6667 k = 8.6667 * 1024 = 8874.7 ≈ 8875 The parameter should be set to 8875.

0

2

0

0

1024

5

Disable BASIC_SET to Associated nodes

This parameter is configured the enabled or disabled send BASIC_SET command to nodes that associated in group 2 and group 3. 0 – Disabled All Group Basic Set Command 1 – Enabled Group 2 Basic Set Command, Group 3 Basic Set Command is disabled. 2 – Enabled Group 3 Basic Set Command, Group 2 Basic Set Command is disabled. 3 – Enabled Group 2 and Group 3 Basic Set Command.

0

1

0

0

3

1

Inclusion

Press once TriSensor’s Action Button. If it is the first installation, the yellow LED will keep solid until whole network processing is complete. If successful, the LED will flash white -> green -> white -> green, after 2 seconds finished. If failed, the yellow LED lasts for 30 seconds, then the green LED flashes once. If it is the S2 encryption network, please enter the first 5 digits of DSK.

2

Exclusion

Press once TriSensor’s Action Button, the Purple LED will keep solid until whole network processing is complete. If the exclusion is successful, the LED will flash white -> green - >white -> green and then LED will pulse a blue. If failed, the yellow LED lasts for 30 seconds, then the green LED flashes once.

4

Device Wake-Up

Press and hold the button at least 2s until Red Led is on and then release the button,device will send wakeup notification to controller if device is in a Z-Wave network.

5

Factory Reset

1. Power up the device. 2. Press and hold the button for 15s until Red Led is blinking,then release the button. Note: Please use this procedure only when the network primary controller is missing or otherwise inoperable.

Home Security

(Refer to parameters): State idle

Air temperature

General purpose

Illuminance
