Product Recognition | |
|---|
Certification Number | ZC14-24010383 |
|---|

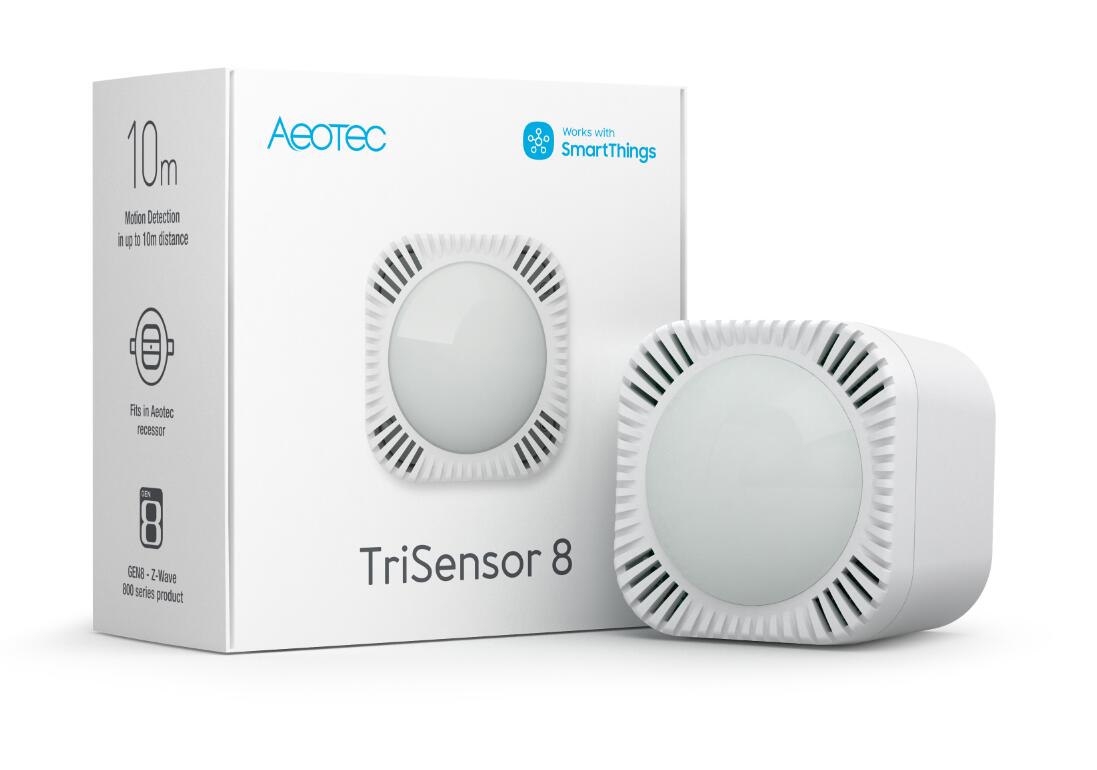

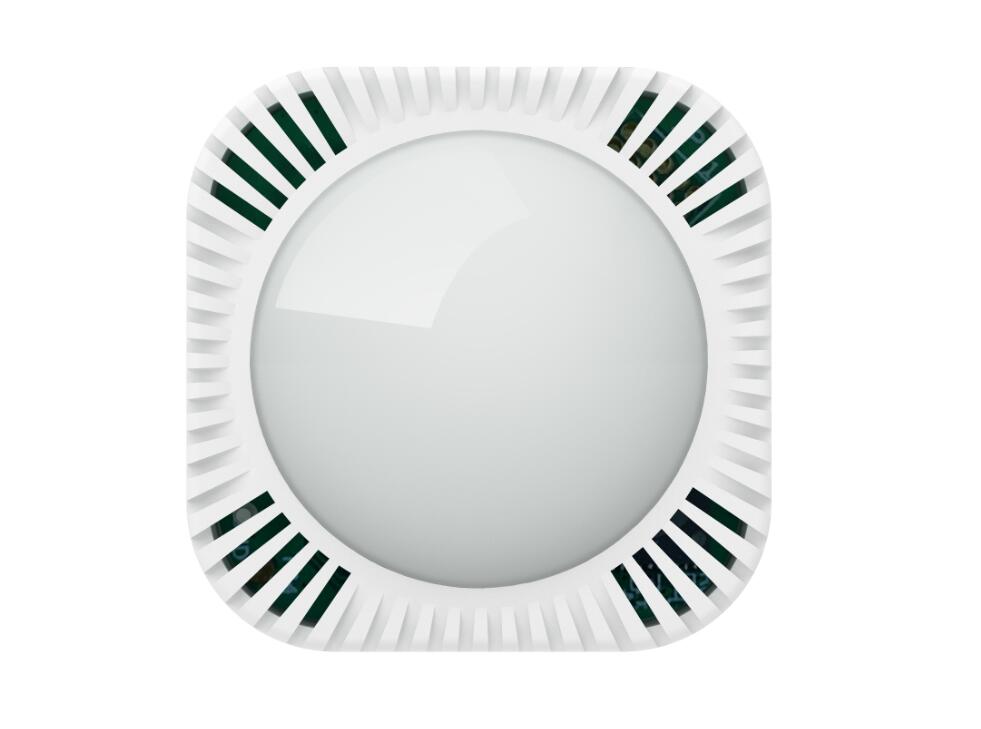

Name | TriSensor 8 |
|---|
Short Description | Aeotec TriSensor 8 |
|---|
Long Description | Aeotec TriSensor 8 with integrated temperature and light sensors. Experience ultimate control and peace of mind with precise motion detection, environmental monitoring, and seamless compatibility with your smart home ecosystem. Elevate your home automation game today! |
|---|
Brand | Aeotec |
|---|
Product Identifier | ZWA045-A |
|---|
Product Line | Z-Wave Product Line |
|---|
OEM Version | HW: 01 FW: 02.06 |
|---|
Hardware Platform | EFR32ZG23A |
|---|
Z-Wave Version | 7.18.3 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Notification Sensor DT |
|---|
Role Type | ROLE_TYPE_END_NODE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0371 |
|---|
Product Type ID | 0x0102 |
|---|
Product ID | 0x002D |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz, US_LR: 912.00MHz, 920.00MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | British Virgin Islands, Canada, Mexico, Trinidad and Tobago, United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Multilevel Sensor V11 | 0x31 | 11 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
Documents | Category | File |
|---|
Manual_English | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | 2 | 5 | 0 | Motion | 0x7107 | 3 | 5 | 0 | Over Heat | 0x3101 | 4 | 5 | 0 | Under Heat | 0x3101 | 5 | 5 | 0 | Over Light | 0x3103 | 6 | 5 | 0 | Under Light | 0x3103 | 7 | 5 | 0 | Temperature | 0x3101 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
3 | Motion Untrigger Time | Motion Untrigger Time | 1 | 2 | 0 | 0 | 0x003C | 4 | Motion Sensitivity | Motion Sensitivity | 1 | 1 | 0 | 0 | 0x02 | 7 | Motion Group Control | Motion Group Control | 2 | 1 | 0 | 0 | 0x00 | 8 | Motion Group Value Setting | Motion Group Value Setting | 1 | 2 | 0 | 0 | 0xFF00 | 9 | Motion Group Control Requirement | Motion Group Control Requirement | 1 | 2 | 0 | 0 | 0x7530 | 10 | Over Heat Group Threshold | Over Heat Group Threshold | 0 | 2 | 0 | 0 | 0x0326 | 11 | Under Heat Group Threshold | Under Heat Group Threshold | 0 | 2 | 0 | 0 | 0x0258 | 17 | Lux Threshold | Lux Threshold | 1 | 2 | 0 | 0 | 0x00FA | 23 | Set lux lower limit level | Set lux lower limit level | 1 | 2 | 0 | 0 | 0x0064 | 24 | Temperature Scale | Temperature Scale | 2 | 1 | 0 | 0 | 0x01 | 25 | Automatic Interval Time | Automatic Interval Time | 1 | 2 | 0 | 0 | 0x0E10 |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | Page 14 in the operation manual | 1 | Classic Inclusion | 1. Turn your main Controller/ Gateway into adding mode.
2. Press the Action Button on product 3 times. | 2 | Classic Exclusion | 1. Turn your main Controller/ gateway into removing mode.
2. Press the Action Button on product 3 times. | 4 | Wake-Up Procedure | Press and hold the Action Button on product for 3 seconds. | 5 | Factory Reset Procedure | Press and hold the Action Button on product for 12 seconds and then release. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | Motion sensor status: Motion detection | Home Security | (Refer to parameters): State idle | Power Management | Battery maintenance status: Replace battery soon | Power Management | Battery maintenance status: Replace battery now | System | SW status: System software failure (manufacturer proprietary failure code provided) | System | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Illuminance |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
Radio Range Z-Wave LR (m) | 400 |
|---|
