Product Recognition | — |
|---|---|
Certification Number | ZC08-13050018 |

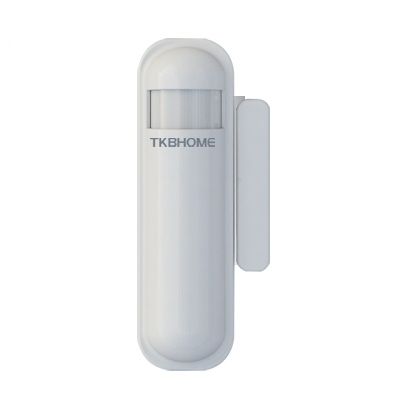

Name | TSM02 Multi-Sensor |
Long Description | PIR, door/window, temperature and illumination, 4 sensors function in one.
- (1)Door/window (2)PIR (3)illumination and (4)temperature functions in one sensor
- Adopt newest Z-wave 400 series chip, support multichannel operation and higher data rate (9.6/40/100kbps)
- Higher output power (+2.5dBm output power as compared to -2.5dBm 300 series Z-wave module) to enhance the communication range
- 1500mA CR123A lithium battery to guarantee 2 year battery life
- Built in light sensor while applied to light control
- Adopt Z-Wave protocol to secure the success of wireless two way communication
- With Tamper proof protection
- Easy install
- Low battery indication
- Auto report the open/close status and battery status
- FCC part15.249 / EN300 220-1/ certification
- NCC |
Brand | TKB Home |
Product Identifier | TSM02 |
OEM Version | v1.0 |
Hardware Platform | ZM4101 |
Z-Wave Version | 6.02 |
Library Type | SLAVE_ROUTING |
Device Type | Not Z-Wave Plus |
Manufacturer ID | 0x0118 |
Product Type ID | 0x0002 |
Product ID | 0x0002 |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | Sensors |
Countries / Regions | European Union |
Controlled Command Classes | |
Documents |
