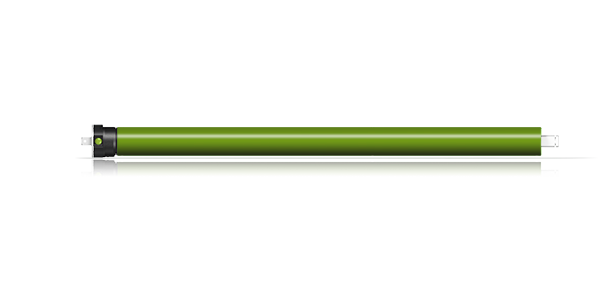

Tubular motor

Short Description

Z-Wave integrated A/C powered tubular motor.

Long Description

Features: Percentage control Position feedback Electronic Limit Switch Direction Stall Protection Built-in Receiver Preferred Stop Position Low-noise Jog & Lift Mode

Brand

Dooya

Product Identifier

DM35E/F-6/28;DM35E/F-10/17;DM35E/F-13/14

Product Line

Z-Wave Product Line

OEM Version

HW: 144 FW: 1.14:01.00

Hardware Platform

ZM5304

Z-Wave Version

6.81.04

Library Type

SLAVE_ENHANCED_232

Device Type

Window Covering - Pos/End Aware

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x030A

Product Type ID

0x0103

Product ID

0x0090

User Icon

0x1A00

Installer Icon

0x1A00

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Window Covering

Countries / Regions

South Africa

Supported Command Classes

Identifier	Name	Key	Version
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4	Firmware Update Meta-Data V4	0x7A	4
COMMAND_CLASS_POWERLEVEL	Powerlevel	0x73	1
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3	Multi-Channel Association V3	0x8E	3
COMMAND_CLASS_SWITCH_BINARY	Switch Binary	0x25	1
COMMAND_CLASS_BASIC	Basic	0x20	1
COMMAND_CLASS_CONFIGURATION	Configuration	0x70	1
COMMAND_CLASS_SECURITY	Security S0	0x98	1
COMMAND_CLASS_TRANSPORT_SERVICE_V2	Transport Service V2	0x55	2
COMMAND_CLASS_VERSION_V2	Version V2	0x86	2
COMMAND_CLASS_DEVICE_RESET_LOCALLY	Device Reset Locally	0x5A	1
COMMAND_CLASS_ZWAVEPLUS_INFO_V2	Z-Wave Plus Info V2	0x5E	2
COMMAND_CLASS_SWITCH_MULTILEVEL_V3	Switch Multilevel V3	0x26	3
COMMAND_CLASS_ASSOCIATION_V2	Association V2	0x85	2
COMMAND_CLASS_ASSOCIATION_GRP_INFO	Association Group Info	0x59	1
COMMAND_CLASS_SECURITY_2	Security S2	0x9F	1
COMMAND_CLASS_SUPERVISION	Supervision	0x6C	1
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2	Manufacturer Specific V2	0x72	2

S2 Classes

S2_UNAUTHENTICATED

Documents

Category	Description	File
Manual_English	Product Manual in English	DM35ECB-F.pdf
Manual_Primary_Lang	Product Manual in English	DM35ECB-F.pdf

Features

Feature
Window Covering Control Features

Association Groups

Group Number	Maximum Nodes Supported	End Point ID	Group Name	Profile	Description
2	5	0	GROUP 2	0x2001	GROUP 2 allows for Send Multilevel Report to associated devices in this group. This Group Support: SWITCH_MULTILEVEL_REPORT_V3
1	5	0	The lifeline group	0x0001	GROUP 1 is lifeline service assigned to the motor position. It enables the motor to send reports to Z-Wave Controller or Z-Wave Gateway whenever the motor is starting or stopped. The Group Support: SWITCH_MULTILEVEL_REPORT_V3 DEVICE_RESET_LOCALLY_NOTIFICATION

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Touch-start setting

This parameter is used to set the touch-start setting. Value: Enable touch-start function: 0 Disable touch-start function: 1

From	To	Description
1	1	Disable touch-start function
0	0	Enable touch-start function

Strong electric switch mode

This parameter is used to set the need for strong electric switch mode. Value: Double-button non-reboundable: 0 Hotel mode: 1 Double-button reboundable: 2

From	To	Description
0	2	Switch mode selection

Position limits status

Position limits status (Read-only) Value: No limits: 0 Limits had been set: 1

From	To	Description
0	1	Limit setting status

Weak electric switch mode

This parameter is used to set the weak electric switch mode. Value: Double-button reboundable switch: 1 Double-button non-reboundable switch: 2 DC246 switch: 3 Single-button cyclic switch: 4

From	To	Description
1	4	Switch mode selection

Open borders

Open borders Value: Enable open boarders: 1 Close open boarders: 0

From	To	Description
1	1	Enable open boarders
0	0	Close open boarders

Motor rotation direction

This parameter is used to set the motor rotation direction. Value: Clockwise: 0 Anticlockwiseset: 1

From	To	Description
1	1	Anticlockwise
0	0	Clockwise

Delete the limit position

127

From	To	Description
127	127	Delete the limit position

Power supply type

Power supply type (Read-only) Value: Mains power: 0 Battery power: 1

From	To	Description
1	1	Powered by Battery
0	0	Powered by Mains supply

Close borders

Close borders Value: Enable close boarders: 1 Close close boarders: 0

From	To	Description
1	1	Open close boarders
0	0	Close close boarders

Texts

ID	Description	Value
2	Classic Exclusion	Press the motor setting button three times within 1.5 seconds. (Press P1(1 beep), Press P1(1 beep), Press P1(1 beep and 1 jog))
24	Controller Classic Exclusion	Press the motor setting button three times within 1.5 seconds. (Press P1(1 beep), Press P1(1 beep), Press P1(1 beep and 1 jog))
23	Controller Classic Inclusion	Press the motor setting button three times within 1.5 seconds. (Press P1(1 beep), Press P1(1 beep), Press P1(1 beep and 1 jog))
5	Factory Reset Procedure	Press and hold P1 for 10S (Press and hold P1 button for 2S, the motor will long beep once and jog once; for 5S, 3 beeps and jog once if no limits; for 10S, 3 beeps and jog once; release the P1 button, 16 beeps and jog once.) Please use this procedure only when the network primary controller is missing or otherwise inoperable.
1	Classic Inclusion	Press the motor setting button three times within 1.5 seconds. (Press P1(1 beep), Press P1(1 beep), Press P1(1 beep and 1 jog))

Supports NWI

Yes

Supports Explorer Frames

Yes

Radio Range Z-Wave (m)
