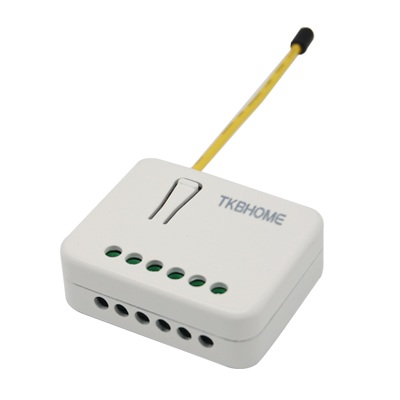

| Long Description | In Wall Dual Relay (1 Way) Switch Module.
World first two relay Z-wave 400 series module in a very slim case.
- Input voltage AC100~240V / DC24~60V.
- Adopt Z-Wave protocol to secure the success of wireless two way communication.
- Slim design, easy install.
- Adopt newest Z-wave 400series chip, support multichannel operation and higher data rate (9.6/40/100kbps).
- Higher RF output power (+2.5dBm output power as compared to -2.5dBm 300 series Z-wave module) to enhance the communication range.
- Resistive load 1500W X 2.
- Two dry contact relay.
- Z-Wave V6.02
- Very low electricity consumption, meet Europe year 2012 energy-related products requirement directive 2009/125/EC no. 1275/2008.
- LVD:EN 60669-2-1:2004+A1:2009+A12:2010,
- EN 60669-2-2 :2006
- EN 60669-1:1999+A1:2002+A2:2008+IS1:2009
- R&TTE: EN 301489, EN 300200, |
|---|
