| Product Recognition | — |
|---|---|
| Certification Number | ZC08-11040006 |

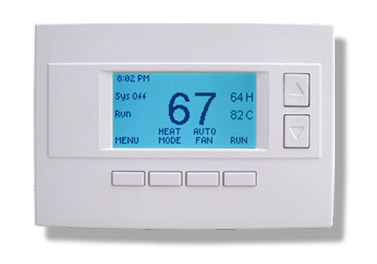

| Name | TZ45 Z-Wave Thermostat |
| Long Description | Z-Wave Thermostat.Separate Heat and Cool Setpoints Up to 3 Stage Heat, 2 Stage Cool Remote control of most functions via Zwave Two part design or New 1 piece design Backlit LCD Wall Display Unit For standard gas/electric or heat pump HVAC systems Replaces existing 4 or more wire thermostats without the need for additional wiring (TZ16/TZ40) Optional Remote Temperature Sensor Power: 24VAC supplied from HVAC system Supports the ZWave thermostat device class |
| Brand | RCS |
| Product Identifier | TZ45 |
| OEM Version | v0 |
| Hardware Platform | ZM3102 |
| Z-Wave Version | 4.52 |
| Library Type | SLAVE_ROUTING |
| Device Type | Not Z-Wave Plus |
| Manufacturer ID | 0x0010 |
| Product Type ID | 0x0001 |
| Product ID | 0x0009 |
| Frequency Plans | US: 916.00MHz, 908.40MHz |
| Categories | Thermostats |
| Countries / Regions | United States of America |
| Controlled Command Classes | |
| Documents |
