Product Recognition
Certification Number	ZC10-16125352

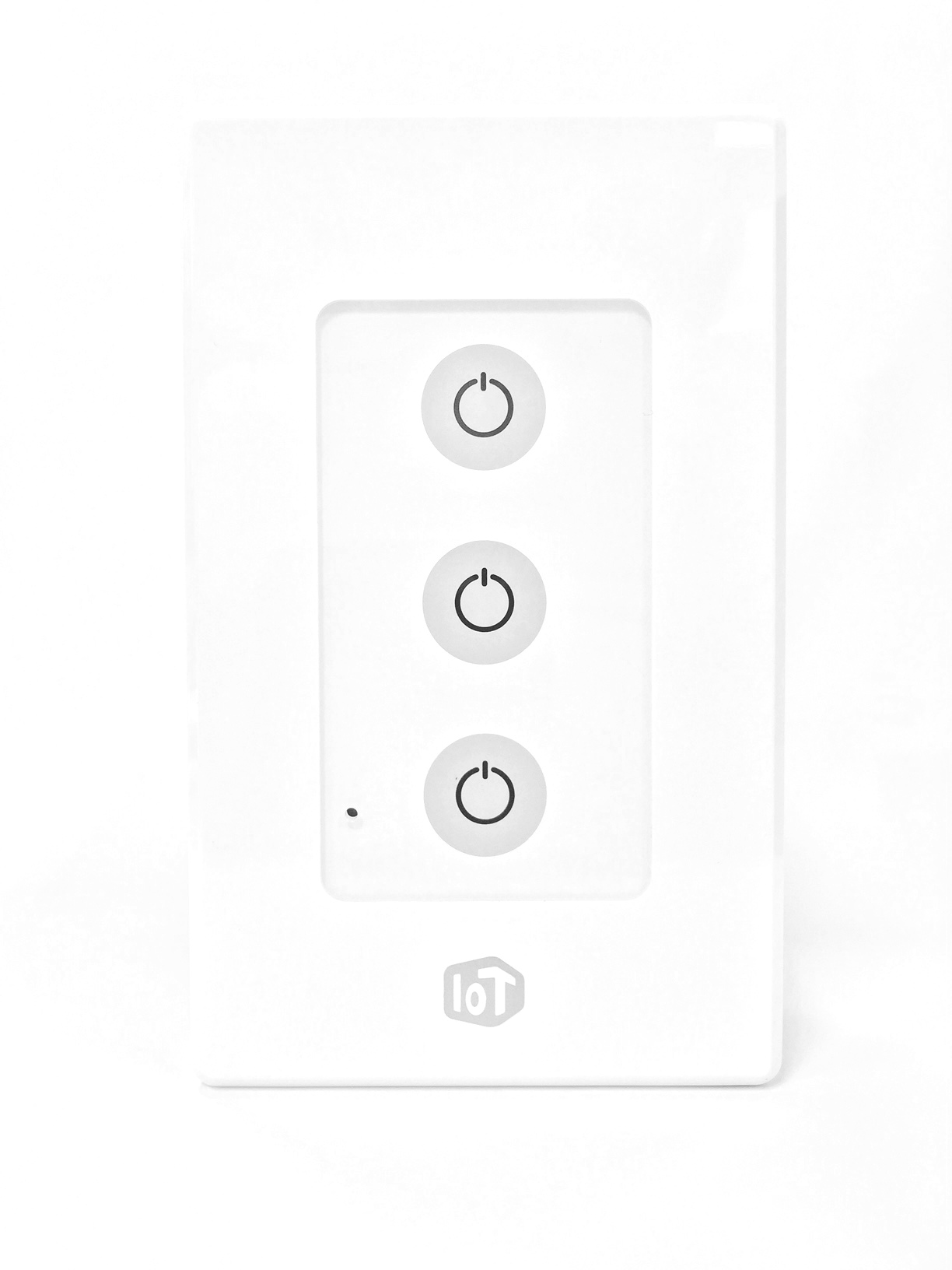

Name	U+ Switch
Short Description	Remote monitoring and control of Light
Long Description	U+ Switch enables Light ON/OFF remotely with capacitive touch buttons and wireless connection(Z-Wave)
Brand	LG Uplus
Product Identifier	SSE-303
OEM Version	HW: 19 FW: 39.216
Hardware Platform	ZM5101
Z-Wave Version	6.61.00
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0233
Product Type ID	0x004C
Product ID	0x0002
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	KR: 920.90MHz, 921.70MHz, 923.10MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	Republic of Korea
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Switch_Product_Manual.pdf
Features	Feature Values Color Value White Electric Load Type Value Incandescent Fluorescent LED Firmware Updatable Value Updatable by Consumer by RF Switch Load Capacity Current Value 6A Switch Load Capacity Volt-Ampere Value 220V Switch Load Capacity Watts Value 1,140W Neutral Wire Required
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 1 Inclusion 1) Prepare the controller for enabling inclusion 2) Keep touching the lamp low button, then after 5 seconds elapsed, 3 beep sounds can be heard. At that time, withdraw touching the button and then inclusion will be commenced. 2 Exclusion 1) Make sure the switch is in inclusion mode. 2) Keep touching the lamp low button, then after 5 seconds elapsed, 3 beep sounds can be heard. At that time, withdraw touching the button and then exclusion will be started. 5 Factory Reset (* Use this procedure only when the network primary controller is missing or otherwise inoperable.) 1) Hold the low touch button for 10 seconds - Keep holding the button, then at 5 second, 3 beeps will come out, and keep holding - 10 seconds later, 5 beep sounds can be heard, and then withdraw touching the low button, so that factory reset should be started. 2) After factory reset is done, all the lamps will be turned off and all variables will be initialized to default values. 4 Device Wake-Up Light Switch is always wake up status.
Supports NWI	Yes
Supports Explorer Frames	Yes
