Certification Number | ZC10-19046458 |
|---|
Name | Ultimate Thermostat |
|---|
Short Description | LinkedGo thermostat is work with radiator, floor heating, and fan coil. It has dry contact and RS485 connect to heat pump or gas boiler for linkage control. |
|---|

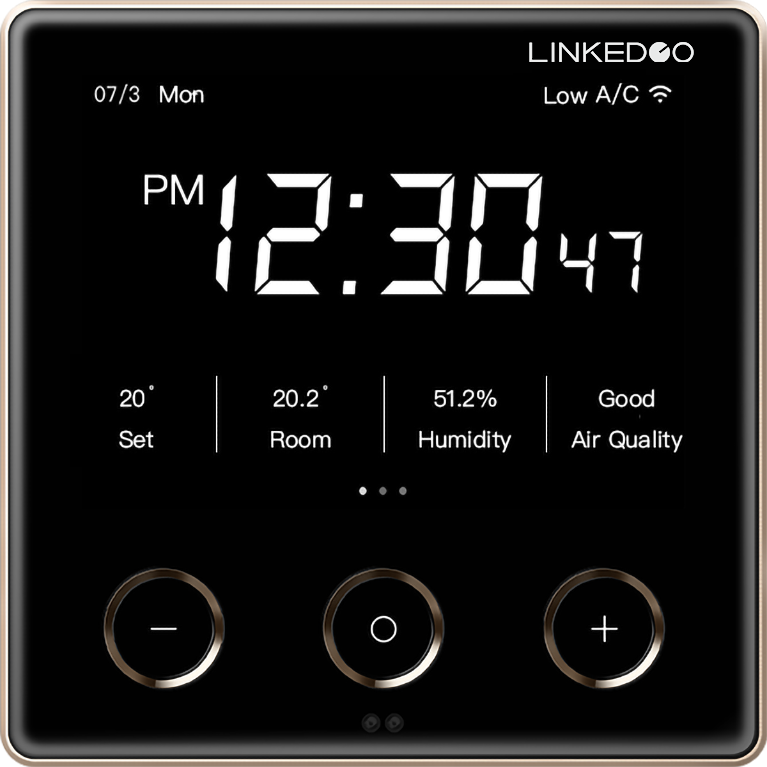

Long Description | LinkedGo's Ultimate Thermostat has built-in temperature and humidity sensor to control room environment more comfortable. And it has 3.5 inch TFT display, resolution is 320*480. User interface and human-computer interaction is very friendly.
We also have fashionable appearance, the depth only 0.39 inch (10mm). |
|---|
Brand | LinkedGO |
|---|
Product Identifier | ST1000EZ0 |
|---|
OEM Version | HW: 255 FW: 4.01:03.69 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.81.02 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Thermostat - HVAC |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0391 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0024 |
|---|
User Icon | 0x1200 |
|---|
Installer Icon | 0x1200 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors, Thermostats, All Lighting Devices, On/Off Switches/Devices, HVAC, Fan Control |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_THERMOSTAT_FAN_MODE_V4 | Thermostat Fan Mode V4 | 0x44 | 4 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V2 | Thermostat Setpoint V2 | 0x43 | 2 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_SENSOR_MULTILEVEL_V9 | Sensor Multilevel V9 | 0x31 | 9 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Communications Connections | Value |
|---|
RS-485 (Serial) | Ethernet (Wireless/WiFi) |
| Thermostat Modes | Value |
|---|
Heat | Cool | Auto | Resume | Fan Only | Dry Air | Energy Save Heat | Energy Save Cool |
| Thermostat Power Source | Value |
|---|
Mains powered (120V/240V) |
| Communications Protocol | Value |
|---|
Manufacturer's Open/Documented Protocol |
| Firmware Updatable | Value |
|---|
Updatable by Professional/Technician |
| Neutral Wire Required | | Sensors | Value |
|---|
Air Temperature | Humidity | Dew Point | Time |
| Supported Notification Types | | Thermostat HVAC Systems Supported | Value |
|---|
Simple Relay | Heat Only | Cool Only | Humidity Control | Ventilation Control | Single Stage | Multi Stage | Heat Pump |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Thermostat supports 1 association group (0x01), which can include five Node ID. A gateway is suggested to associate with this group. Then if any changes happen, such as: temperature, working mode, fan status etc., the thermostat will report to this associated device (gateway). All the reports sent via Lifeline group.
Commands sent via Lifeline:
COMMAND_CLASS_THERMOSTAT_MODE,
COMMAND_CLASS_THERMOSTAT_SETPOINT,
COMMAND_CLASS_THERMOSTAT_FAN_MODE,
COMMAND_CLASS_SENSOR_MULTILEVEL,
COMMAND_CLASS_CONFIGURATION,
COMMAND_CLASS_DEVICE_RESET_LOCALLY
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
9 | Summer temperature difference calibration | Value range:-50~50(-50 means △T=-5℃) Precision:1 Calibration for the temp.sensor in summer | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | -10 | The temperature probe should be calibrated -1 degree C. |
| 10 | Algorithm enable | Disable | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | Enable |
| 17 | Theme style | 0-classic | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | weather | 1 | 2 | Digital clock | 2 | 3 | Rome clock | 3 | 4 | Cartoon clock |
| 25 | Winter temperature difference calibration | Value range:-50~50(-50 means △T=-50℃) Precision:1 Calibration for the temp.sensor in winter | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 10 | The temperature probe should be calibrated +1 degree C. |
| 84 | Local weather | 0-sunny Show local weather on the display | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | windy | 1 | 2 | snow | 2 | 3 | rain | 3 | 4 | cloudy | 4 | 5 | partly cloudy |
| 85 | PM2.5 level | Excellent | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | Good | 1 | 2 | Light pollution | 2 | 3 | Heavy pollution |
| 4 | Custom mode | 0-standard mode | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 2 | Sleeping night mode | 2 | 3 | Sleeping noon mode |
| 5 | Heating method | 0-Heating by fan coil only | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | Floor heating only | 1 | 2 | Fan coil and floor heating both |
| 6 | Master and slave setting | Slave-it can be switched on/off by Master unit. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | Master |
|
|
|---|
Texts | ID | Description | Value |
|---|
6 | Additional Special Features | Support different style background theme. Go to ""Theme"" choose your favourite one. | 1 | Inclusion | Hold the ""+"" button 5 seconds, until the display show ""Add"". | 2 | Exclusion | Hold the ""-"" button 5 seconds, until the display show ""Remove"". | 5 | Factory Reset | Go to the third page, find ""About"", select ""Reset all settings"", and confirm.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Clock | (Refer to parameters): State idle | Weather Alarm | Freeze alarm status: Freeze alarm | Weather Alarm | Unknown event/state |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Humidity | Dew point | Time |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
