COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Firmware Update Meta-Data V4

0x7A

4

COMMAND_CLASS_SENSOR_MULTILEVEL_V5

Sensor Multilevel V5

0x31

5

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_SWITCH_BINARY

Switch Binary

0x25

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_MULTI_CHANNEL_V4

Multi-Channel V4

0x60

4

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_VERSION_V3

Version V3

0x86

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_BASIC

Basic

0x20

1

Manual_Primary_Lang

Product Manual

Firmware Updatable

Battery Type

Battery Quantity

Color

3

5

0

Alarm IN2

Mirror of endpoint 2

2

5

0

Alarm IN1

Mirror of endpoint 1

4

5

0

Alarm IN3

Mirror of endpoint 3

1

5

0

Lifeline

1.When its battery level drops to unacceptable level, a Battery report will be sent to Lifeline group. 2.When performing Factory Reset, a Device Reset Locally Notification will be sent to Lifeline group. 3.When relays at OUT1~3 turns on/off. (For automatic turn off, there will be a 2 secs delay after the turn off is complete), a Switch Binary Report will be sent to Lifeline group. 4. When Voltage level at Signal Input (periodic report), a Sensor Multilevel report will be sent to Lifeline group.

11

IN3 Mode

Size =1, Default Value = 0x40 Bit 7：Corresponds to values in Config 14, 15 - 0 = Trigger on when voltage under Low-threshold, Trigger off when over Hi-threshold - 1 = Trigger on when voltage over Hi-threshold, Trigger off when under Low-threshold Bit 6：IN3 3.3V pull-high On/Off , 0 = Off, 1 = On Bit 5-4 : Fixed at 0. Bit 3：1 = Activate OUT3 relay when IN3 trigger Bit 2：1 = Activate OUT2 relay when IN3 trigger Bit 1：1 = Activate OUT1 relay when IN3 trigger Bit 0：Fixed at 0.

1

1

-128

127

64

1

IN1 Mode

Size =1, Default Value = 0x40 Bit 7：Corresponds to values in Config 4, 5 - 0 = Trigger on when voltage under Low-threshold, Trigger off when over Hi-threshold - 1 = Trigger on when voltage over Hi-threshold, Trigger off when under Low-threshold Bit 6：IN1 3.3V pull-high On/Off , 0 = Off, 1 = On Bit 5-4 : Fixed at 0. Bit 3：1 = Activate OUT3 relay when IN1 trigger Bit 2：1 = Activate OUT2 relay when IN1 trigger Bit 1：1 = Activate OUT1 relay when IN1 trigger Bit 0：Fixed at 0.

1

1

-128

127

64

2

OUT1 relay Trigger ON time

Size =1, Default Value = 0x05 (500ms) Step of 100ms, ‘0’ = remain on

1

1

-128

127

5

3

Group 2 turn on time when triggered by IN1

Size =1, Default Value = 0xB4 (Off after 180 secs) Step of 1 sec, ‘0’ = remain on

1

1

-128

127

-76

17

Tamper Mode

Size =1, Default Value = 0x00 Bit 3：1 = Activate OUT3 Relay when Tamper Bit 2：1 = Activate OUT2 Relay when Tamper Bit 1：1 = Activate OUT1 Relay when Tamper

1

1

0

7

0

6

IN2 Mode

Size =1, Default Value = 0x40 Bit 7：Corresponds to values in Config 9, 10 - 0 = Trigger on when voltage under Low-threshold, Trigger off when over Hi-threshold - 1 = Trigger on when voltage over Hi-threshold, Trigger off when under Low-threshold Bit 6：IN2 3.3V pull-high On/Off , 0 = Off, 1 = On Bit 5-4 : Fixed at 0. Bit 3：1 = Activate OUT3 relay when IN2 trigger Bit 2：1 = Activate OUT2 relay when IN2 trigger Bit 1：1 = Activate OUT1 relay when IN2 trigger Bit 0：Fixed at 0.

1

1

-128

127

64

4

IN1 Hi-threshold Voltage Trigger Level

Size =1, Default Value = 0x19 (IN1 trigger off when over 2500mV). Step of 100mV.

1

1

-128

127

25

5

IN1 Low-threshold Voltage Trigger Level

Size =1 Default Value = 0xA (IN1 trigger on when under 1000mV)

1

1

-128

127

10

9

IN2 Hi-threshold Voltage Trigger Level

Size =1, Default Value = 0x19 (IN2 trigger off when over 2500mV). Step of 100mV.

1

1

-128

127

25

8

Group 3 turn on time when triggered by IN2

Size =1, Default Value = 0xB4 (Off after 180 secs) Step of 1 sec, ‘0’ = remain on

1

1

-128

127

-76

7

OUT2 relay Trigger ON time

Size =1, Default Value = 0x05 (500ms) Step of 100ms, ‘0’ = remain on

1

1

-128

127

5

10

IN2 Low-threshold Voltage Trigger Level

Size =1 Default Value = 0xA (IN2 trigger on when under 1000mV)

1

1

-128

127

10

1

Classic Inclusion

1.Put the Z-Wave Controller into inclusion mode. 2.Press the Link button 3 times within 1.5 seconds to put the unit into inclusion mode.

2

Classic Exclusion

1. Put the Z-Wave Controller into exclusion mode. 2. Press the Link button 3 times within 1.5 seconds to put the unit into exclusion mode.

5

Factory Reset Procedure

1. Press the Link button 3 times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press the Link button again and hold for 5 seconds. 3. Node ID is excluded. The unit reverts to factory default state. (This procedure should only be used when the controller is inoperable.)

8

Where to find S2 DSK on product

If you are connecting this unit to a Z-Wave Controller that utilizes the S2 security protocol, you may be asked by your controller to enter a 5-digit PIN that is unique to each unit. This can be found in one of two places: - on the QR code label on the back of the unit - on the insert card inside the packaging.

6

Other Special Features

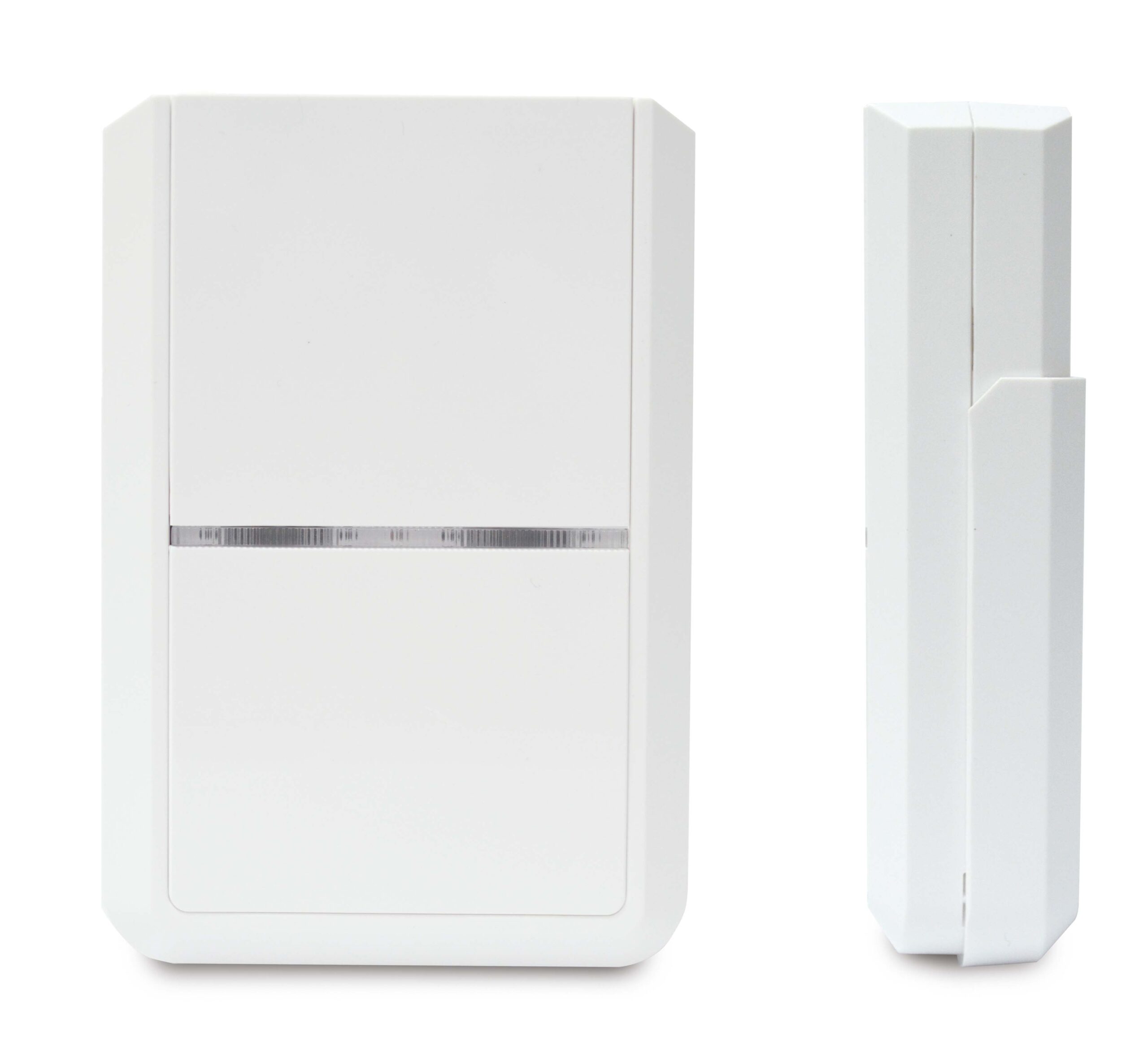

Main features:  3 sets of input terminals, supporting dry contact or analog input  Threshold level can be set for each input  Notifies controller when input triggers  3 sets of relay output terminals, delivering NC/NO dry contact output*  Output can be set to activate automatically when input terminals trigger  Backup battery during power loss  Notifies controller if power loss/recovers and when backup battery becomes low  Tamper switch to detect removal from its mount  Supports Z-Wave S2 security protocol with security-enabled Controller

Access Control

Manual lock operation

Access Control

Manual unlock operation

Home Security

Cover status: Tampering, product cover removed

Power Management

Power status: Power has been applied

Power Management

Mains status: AC mains disconnected

Power Management

Mains status: AC mains re-connected

System

Cover status: Tampering, product cover removed

Voltage
