Product Recognition | |
|---|
Certification Number | ZC12-19100017 |
|---|
Name | UPowerSwitch |
|---|

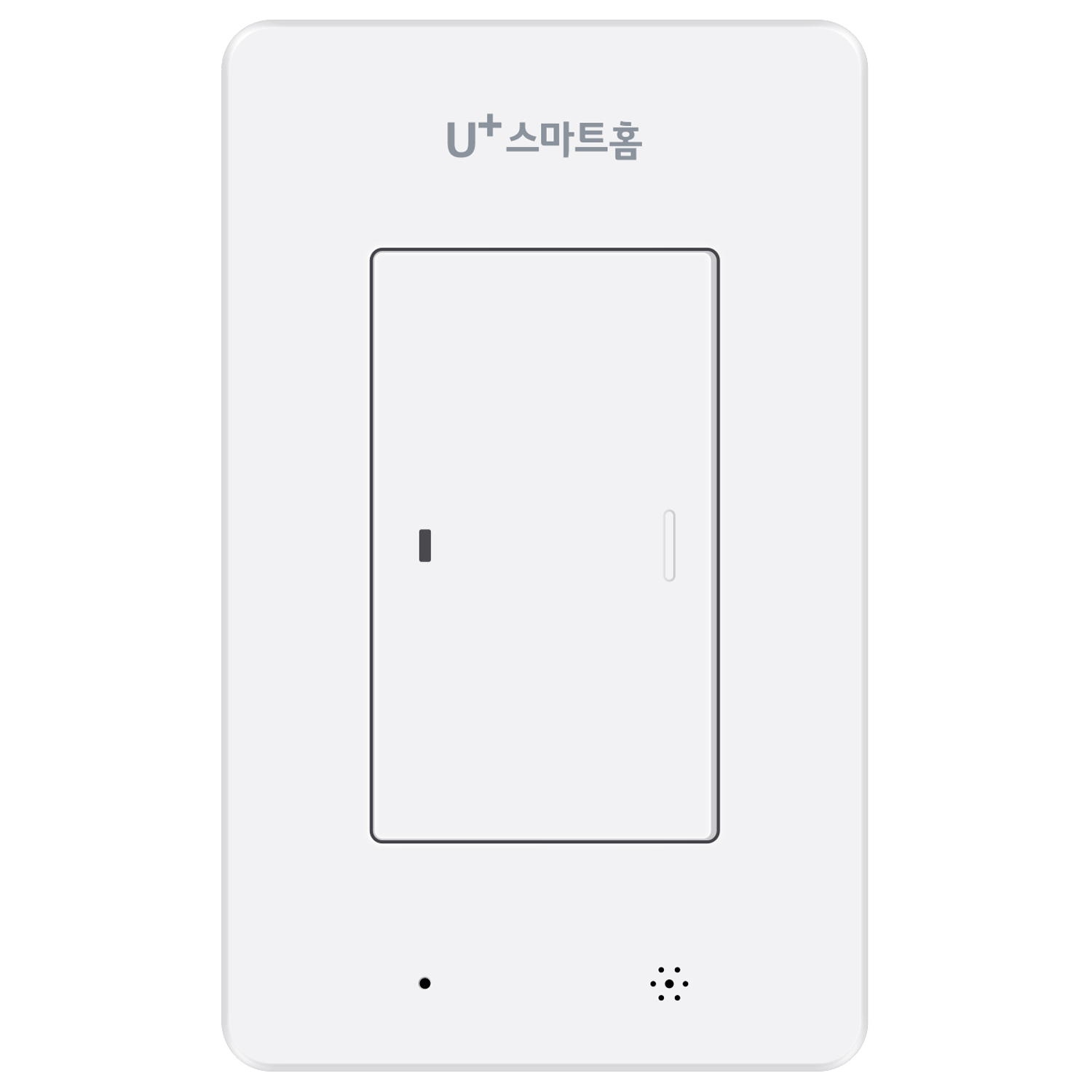

Short Description | This is a smart light switch. |
|---|
Long Description | This is a smart light switch. It has 1 button, using 1 wire AC line. You can control the light from the remote or manually. Input AC power:220V. |
|---|
Brand | LG U+ |
|---|
Product Identifier | UPowerSwitch |
|---|
Product Line | LG U+ IOT Power Switch |
|---|
OEM Version | HW: 1 FW: 10.11 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.11.0 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Binary Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0357 |
|---|
Product Type ID | 0x0057 |
|---|
Product ID | 0x0002 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | Republic of Korea |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_SWITCH_BINARY_V2 | Switch Binary V2 | 0x25 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual In Korean | | Manual_English | Product Manual in English | |
|
|---|
Features | Feature | Values |
|---|
Color | | Electric Load Type | Value |
|---|
Incandescent | Fluorescent | LED |
| Firmware Updatable | Value |
|---|
Updatable by Manufacturer Representative |
| Outdoor Use | | Switch Load Capacity Current | | Switch Load Capacity Volt-Ampere | | Switch Load Capacity Watts | | Switch Type | Value |
|---|
Push Button with Indicator |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 3 | 0 | Lifeline | 0x0001 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | PeriodOfReport | Time period of Multi Level Sensor Report by second. | 2 | 2 | 60 | 3600 | 600 | From | To | Description |
|---|
60 | 3600 | Setting a value in this range means to set the period value of the report. For example, 600 means that the reporting period is 600 seconds. |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | Press the 1st button for above 5 seconds. Then, red color LED blinks every 0.5 second 6 times. At this time released the button during the red color LED blinking. Then, Z-Wave Add / Remove operation is started. | 8 | Where to find S2 DSK on product | page7: 스위치 본체 또는 제품 상자에 부착된 QR코드를 통해 DSK 키 정보를 확인할 수 있습니다. | 1 | Classic Inclusion | Press the 1st button for above 5 seconds. Then, red color LED blinks every 0.5 second 6 times. At this time released the button during the red color LED blinking. Then, Z-Wave Add / Remove operation is started. | 4 | Wake-Up Procedure | The device can be woken up by pressing a button manually or sending a software command. If there is no action within 2s after wake-up, it will re-enter sleep. | 5 | Factory Reset Procedure | Hold the button for 10 seconds.
-Keep holding the button, then at 5 second,red LED of the button is blinking 6 times, and keep holding.
The red LED blinking 6 times after 10 seconds. When you release your hand, the LED will stop blinking and return to the factory settings
NOTES: Use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | Heat sensor status: Overheat detected | Heat Alarm | Heat sensor status: Under heat detected | Heat Alarm | Rapid temperature rise | System | SW status: System software failure (manufacturer proprietary failure code provided) |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
