| Product Recognition | |
|---|
| Certification Number | ZC10-16035030 |
|---|

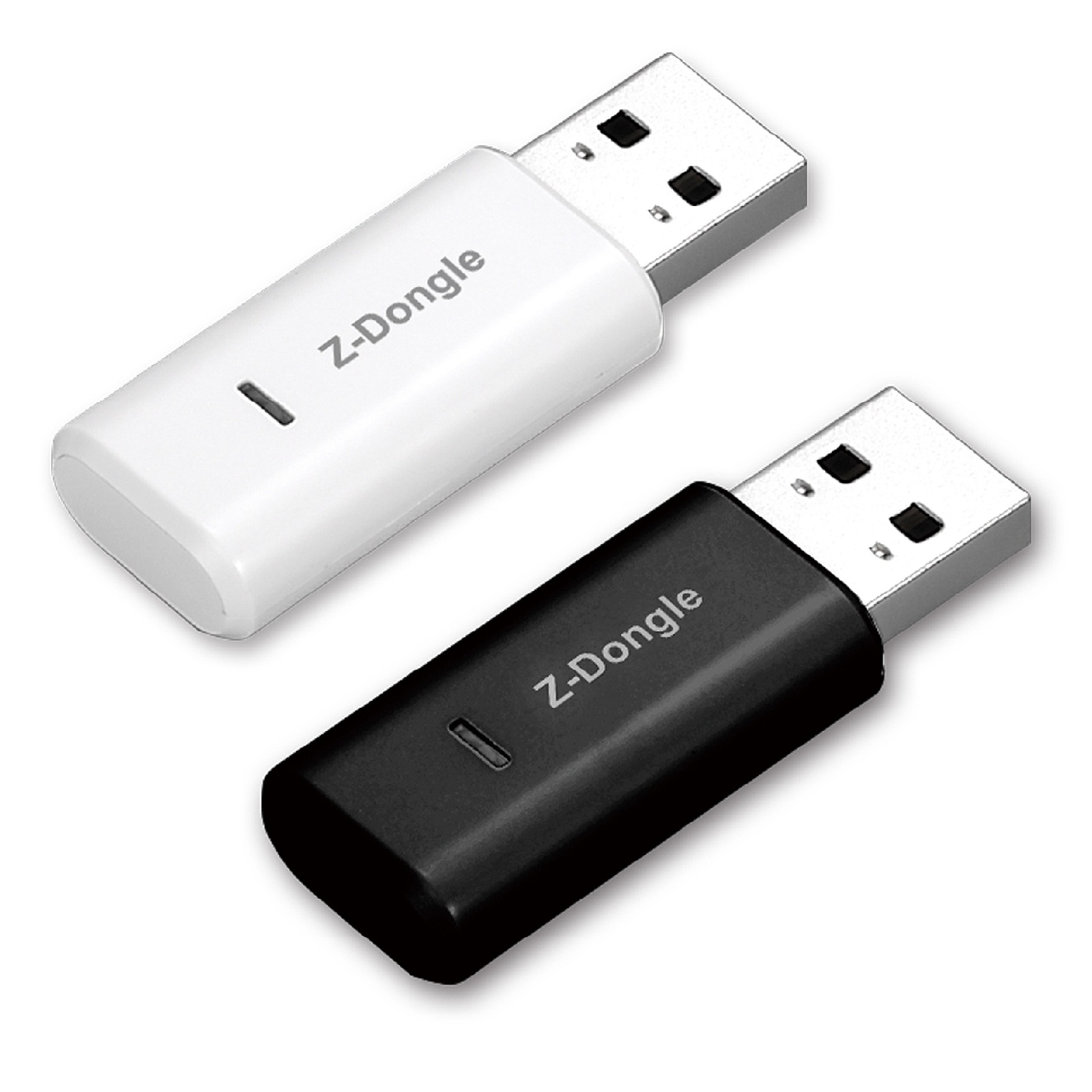

| Name | USB Stick |
|---|
| Short Description | USB Stick |
|---|
| Long Description | 1. Simply Plug in PC/Gateway USB Port With drive Installation
2. USB 2.0 Interface Package
3. Support NWI(Network Wide Inclusion) Mode.
4. Support Multiple OS drive |
|---|
| Brand | Good Way Technology, Co., Ltd |
|---|
| Product Identifier | USB Stick |
|---|
| Hardware Platform | ZM5101 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | CONTROLLER_STATIC |
|---|
| Device Type | Central Controller |
|---|
| Role Type | ROLE_TYPE_OTHER |
|---|
| Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
| Categories | All Controllers, Computer Controller Interfaces |
|---|
| Countries / Regions | European Union |
|---|
| Documents | |
|---|
| Texts | | ID | Description | Value |
|---|
| 23 | Controller Inclusion | Inclusion mode: Blue LED Blinking slowly 5 sec. | | 24 | Controller Exclusion | Exclusion mode:Blue LED Blinking fast 5 sec. | | 3 | Learn Mode (adding another controller) | Green LED Blinking/Solid:
When sending or receiving the Z-Wave command, the time the light remains on is determined by the size of the Z-Wave command packet
Red Solid:
Z-Wave USB dongle is activating,when it is ready, the light will be off. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
