| Product Recognition | |
|---|
| Certification Number | ZC10-16045045 |
|---|

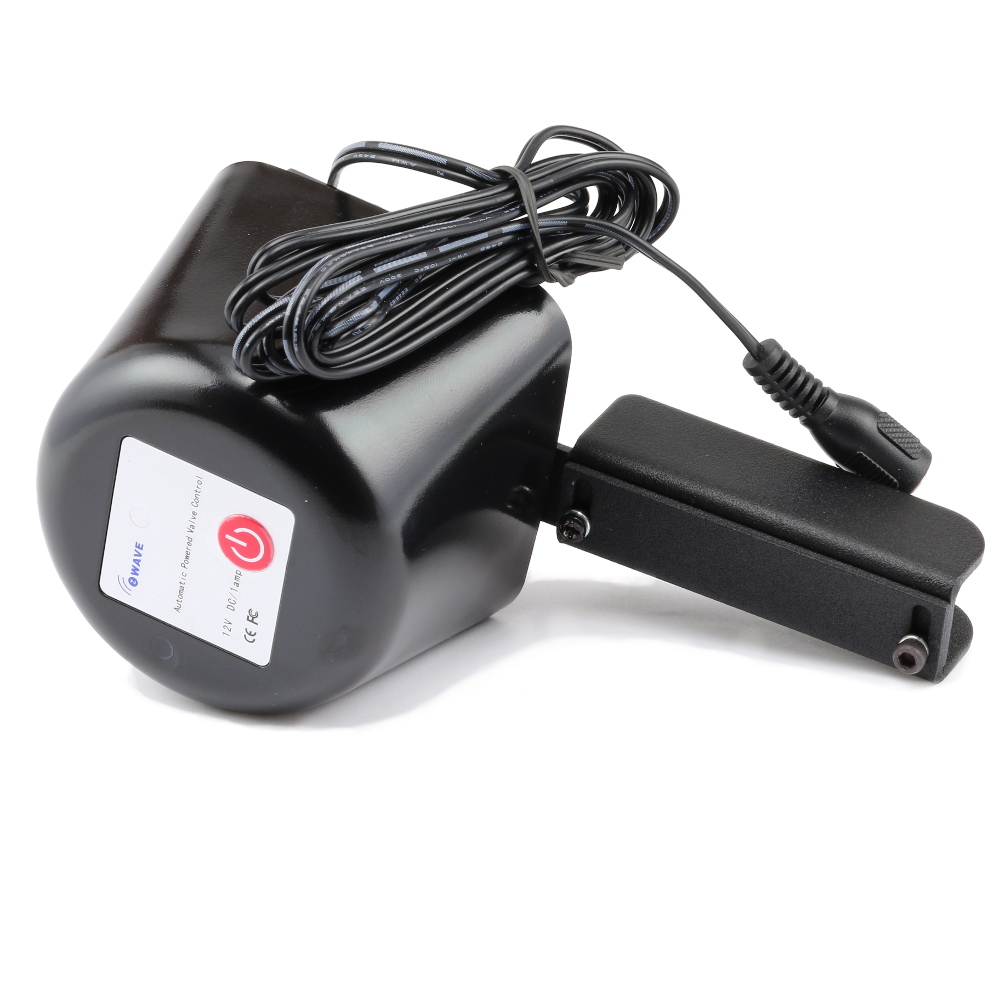

| Name | Valve Control |
|---|
| Short Description | Z-Wave water / gas valve controller for home automation systems (Z-Wave gateway controller needed). DIY, easy installation, no plumbing required. |
|---|
| Long Description | Once the Z-Wave valve control is added to your network, you are able to close and open the valve from your mobile device or a computer. Depending on your Z-Wave gateway's home automation software you may be able to associate Z-Wave valve control device in groups with other Z-Wave devices to schedule scenes or create events. Example: if a water sensor detects water your gateway will send a signal to shut the water valve off. Or, you'll be able to turn your vacation home water valve on or off remotely.
- Indoor installation only!
- Adjustable bracket fits all standard ball valves.
- Compatible with standard Z-Wave home automation systems supporting binary switch command.
- Z-Wave Plus with improved 500 chip for faster and safer wireless communication.
- Built-in Z-Wave signal repeater. |
|---|
| Brand | Zooz |
|---|
| Product Identifier | ZAC03 |
|---|
| OEM Version | HW: 2 FW: 0.02 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Valve - Open/Close |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x027A |
|---|
| Product Type ID | 0x0003 |
|---|
| Product ID | 0x0512 |
|---|
| User Icon | 0x1500 |
|---|
| Installer Icon | 0x1500 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | Water Valves & Irrigation |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | 1. Plug the valve control in within 3 feet from your controller.
2. Put your Z-Wave controller in inclusion mode.
3. Press the red power button on the valve control THREE times quickly.
4. A new on-off device should appear on your controller's dashboard. | | 2 | Exclusion | 1. Plug the valve control in within 3 feet from your controller.
2. Put your Z-Wave controller in exclusion mode.
3. Press the red power button on the valve control THREE times quickly.
4. The device should disappear from your controller's dashboard. | | 5 | Factory Reset | If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To complete the reset process manually, please press and hold the red power button for 10 seconds. The LED indicator on the device will flash to indicate the process has been successfully completed.
NOTE: All previously recorded activity and custom settings will be erased from the device’s memory. | | 6 | Additional Special Features | MANUAL OPERATION:
In case of power failure, device malfunction, or other emergency,
you may need to manipulate valve handle manually: pull and hold
the clutch down while simultaneously turning the rocker arm to
the side to open or close valve. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
