Product Recognition | |
|---|
Certification Number | ZC10-19056474 |
|---|

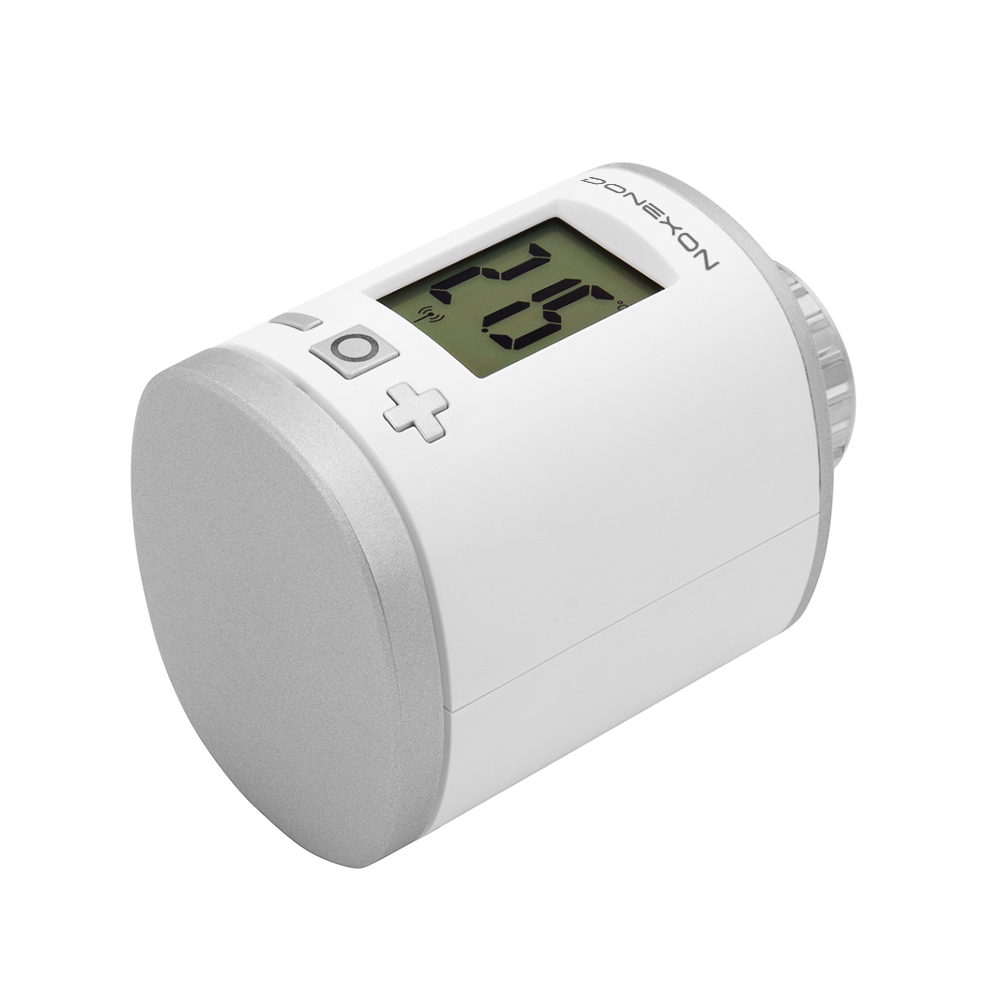

Name | varmo TZ eco |
|---|
Short Description | • The varmo TZ eco radiator valve regulates your radiator with energy-saving Z-Wave wireless standard. This will allow you to add an additional component to your Z-Wave Smart Home network. |
|---|
Long Description | • The varmo TZ eco radiator valve regulates your radiator with energy-saving Z-Wave wireless standard. Thus, you can add a component to your Z-Wave Smart Home network.
• Thanks to the FLiRS (Frequently Listening Receiver Slave), the heating valve responds to incoming commands without any major delays, for example changing the temperature.
Design covers are available in various colors, so you can change them according to your wishes and interior design.
• The varmo TZ eco radiator valve is easy to operate, has an orange backlit display and an extra large temperature display. Heating periods are programmable, the daily and weekly times are individually programmable and the valve detects when a window is open. The manual adjustment is of course possible at any time.
• In addition, the valve has a child safety lock and various security levels, a frost and lime protection function and fits on many common radiator valves.
• The display can be rotated 180 degrees. |
|---|
Brand | DONEXON |
|---|
Product Identifier | 4251660900025 |
|---|
OEM Version | HW: 49 FW: 0.16:00.10 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Thermostat - HVAC |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0148 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0004 |
|---|
User Icon | 0x1200 |
|---|
Installer Icon | 0x1200 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Thermostats, HVAC |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SWITCH_MULTILEVEL | Switch Multilevel | 0x26 | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 | Thermostat Setpoint V3 | 0x43 | 3 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_PROTECTION | Protection | 0x75 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Sensors | | Supported Notification Types | Value |
|---|
Power Management | System |
| Thermostat HVAC Systems Supported | | Thermostat Modes | Value |
|---|
Heat | Energy Save Heat |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | LCD invert | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Normal orientation | 1 | 1 | LCD content inverted |
| 3 | Backlight | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Backlight disabled | 1 | 1 | Backlight enabled |
| 4 | Battery report | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Battery reporting disabled | 1 | 1 | Battery reporting enabled |
| 5 | Measured temperature report | 0 | 1 | 0 | 0 | 5 | From | To | Description |
|---|
0 | 0 | Reporting disabled | 1 | 50 | Reporting Delta in 1/10 Celcius |
| 6 | Valve percentage report | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Reporting disabled | 1 | 100 | Reporting Delta in percent |
| 7 | Window open detection | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
0 | 0 | Detection disabled | 1 | 3 | Sensitivity level |
| 8 | Measured temperature offset | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
-128 | 0 | Temperature is supplied externaly | -50 | 50 | Offset in 1/10 Celcius |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Start Inclusion mode of your primary Z-Wave Controller.
Press the Boost-Button.
varmo TZ eco will show the assigned NodeID. | 5 | Factory Reset | Remove batteries.
Press and hold boost button.
While still holding boost button insert batteries.
The LCD shows RES. Release boost button.
To perform the factory reset press boost button.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 2 | Exclusion | Start Exclusion mode of your primary Z-Wave Controller.
Now press and hold the boost button of the varmo TZ eco for at least 5 seconds. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | (Refer to parameters): State idle | System | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
