Product Recognition

Certification Number

ZC10-22127118

Name

Venture WISE Window Sensor

Short Description

Long Description

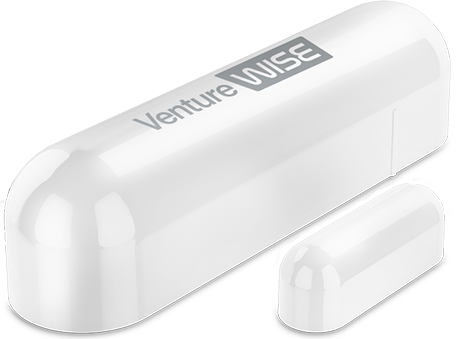

Venture WISE Window Sensor is a wireless, battery powered Hall effect contact sensor, compatible with the Z-Wave Plus™ standard. Changing the device’s status will automatically send signal to the Z-Wave™ controller and associated devices. Sensor can be used to trigger scenes and wherever there is a need for information about opening or closing of doors, windows, garage doors, etc. Opening is detected by separating the sensor’s body and the magnet. In addition the Sensor is equipped with a built-in temperature sensor. Main features of Sensor: - Compatible with any Z-Wave™ or Z-Wave Plus™ Controller, - Supports protected mode (Z-Wave™ network Security Mode) with AES-128 encryption, - Door/window opening detected through separation of Sensor’s body and a magnet, - Built-in temperature sensor, - Detects tampering, when detached or opened, - Easily mounted on doors, windows, garage gates and roller blinds, - Battery powered, - Visual LED indicator signaling status of the device, - 7 color variations.

Brand

Venture WISE

Product Identifier

FGDW-002

Product Line

WISE

OEM Version

HW: 2 FW: 3.02

Hardware Platform

ZM5101

Z-Wave Version

6.51.09

Library Type

SLAVE_ENHANCED_232

Device Type

Notification Sensor

Role Type

ROLE_TYPE_SLAVE_SLEEPING_REPORTING

Manufacturer ID

0x010F

Product Type ID

0x0702

Product ID

0x1000

User Icon

0x0C06

Installer Icon

0x0C06

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Sensors

Countries / Regions

European Union

Supported Command Classes

Controlled Command Classes

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Flag Advanced

Size

Min Value

Max Value

Default Value

Parameter Values

Door window state

This parameter allows to set in what state is door window when the magnet is close to the sensor. 0 - closed when magnet near 1 - opened when magnet near

Yes

From	To	Description
1	1	opened when magnet near
0	0	closed when magnet near

Associations in Z-Wave network Security Mode

This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network Security Mode. It does not apply to 1st group Lifeline.

From	To	Description
1	1	2nd group On-Off sent as secure
2	2	3rd group Tamper sent as secure
3	3	2nd and 3rd group sent as secure
0	0	none of the groups sent as secure

Visual LED indications

This parameter defines events indicated by the visual LED indicator. Disabling events might extend battery life. 1 - indication of opening-closing status change 2 - indication of wake up (1 x click or periodical) 4 - indication of device tampering NOTE Parameter 2 values may be combined, e.g. 1+2=3 means that in -dications for opening/ closing and waking up are enabled.

From	To	Description
4	4	indication of device tampering
0	0	no indication
1	1	indication of opening/closing status change
6	6	indication of wake up (1 x click or periodical) and indication of device tampering
7	7	indication of indication of opening/closing status change, wake up (1 x click or periodical) and indication of device tampering

2nd association group triggers

Parameter defines events which result in sending on/off commands to devices added to the 2nd association group. These commands are sent alternately to switch the devices on and off.

From	To	Description
0	0	switch after opening and closing
1	1	switch after opening (parameter 12)
2	2	switch after closing (parameter 13)

Temperature reports threshold

This parameter defines the change of temperature in comparison with last reported, resulting in temperature report being sent to the main controller. NOTE Parameter 51 is active only if parameter 50 is not set to 0. Temperature measurement is performed before sending any report (regardless of parameter no. 50). Excessive reporting can affect battery lifetime. Reporting on the basis of temperature change (parameter no. 51) is recommended.

300

From	To	Description
0	0	temperature reports based on threshold disabled
1	300	temperature threshold (0.1 °C - 30 °C, 0.1 °C step)

Tamper - reporting alarm cancellation

Reporting cancellation of tamper alarm to the controller and 3rd association group.

From	To	Description
1	1	send tamper cancellation report
0	0	do not send tamper cancellation report

Interval of temperature measurements

This parameter defines how often the temperature will be measured. The shorter the time, the more frequently the temperature will be measured, but the battery life will shorten.

32400

300

From	To	Description
5	32400	time in seconds
0	0	temperature measurements disabled

High temperature alarm threshold

If temperature is higher than set value, overheat notification will be sent and high temperature scene will be triggered (if activated).

600

350

From	To	Description
1	600	(0.1 - 60 °C, 0.1 °C step)

Interval of temperature reports

This parameter determines how often the temperature reports will be sent to the main controller (regardless of parameters 50 and 51).

32400

From	To	Description
0	0	periodic temperature reports disabled
300	32400	time in seconds

Temperature offset

The value to be added to the actual temperature, measured by the sensor (temperature compensation).

-1000

1000

From	To	Description
-1000	1000	(-100 – 100 °C, 0.1 °C step)

Low temperature alarm threshold

If temperature is lower than the set value, underheat notification will be sent and low temperature scene will be triggered (if activated).

599

100

From	To	Description
0	599	(0 - 59.9 °C, 0.1 °C step)

Temperature alarm reports

Temperature alarms reported to the Z-Wave controller. Thresholds are set in parameters 55 and 56.

From	To	Description
0	0	temperature alarms disabled
1	1	high temperature alarm
2	2	low temperature alarm
3	3	high and low temperature alarms enabled

Texts

ID	Description	Value
5	Factory Reset Procedure	Resetting the Sensor: Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. In order to reset the device: 1. Open the cover. 2. Remove the battery. 3. Install the battery while holding both TMP buttons. 4. Visual LED indicator will be flashing slowly for 5 seconds - keep holding the buttons. 5. Release one button when the LED indicator starts flashing quickly. 6. Click released button once to confirm launching of reset procedure. 7. Wait a few seconds until a long blink of the LED indicator. Do not remove the battery. 8. Visual LED indicator will blink 5 times quickly to confirm the reset.
4	Wake-Up Procedure	Waking up the Sensor: The Sensor needs to be woken up to receive information about the new configuration from the controller, like parameters and associations. To wake up the sensor manually, click one of the TMP buttons (while the other button is pressed).
2	Classic Exclusion	Removing (Exclusion) - Z-Wave device learning mode, allowing to remove the device from existing Z-Wave network. To remove the device from the Z-Wave network: 1. Place the Sensor within the direct range of your Z-Wave controller. 2. Set the main controller into remove mode (see the controller’s manual). 3. Quickly, three times press one of the TMP buttons (while the other button is pressed). 4. Wait for the removing process to end. 5. Successful removing will be confirmed by the Z-Wave controller’s message.
1	Classic Inclusion	Adding (Inclusion) - Z-Wave device learning mode, allowing to add the device to existing Z-Wave network. To add the device to the Z-Wave network: 1. Place the Sensor within the direct range of your Z-Wave controller. 2. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 3. Quickly, three times press one of the TMP buttons (while the other button is pressed). 4. Wait for the adding process to end. 5. Successful adding will be confirmed by the Z-Wave controller’s message.

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes
