Product Recognition | — |
|---|---|
Certification Number | ZC08-13040016 |

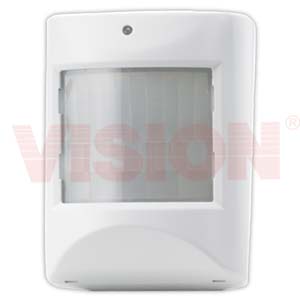

Name | Vision PIR Sensor ZP3102IN |
Long Description | Features:
*Passive Infrared Sensor (PIR)
*2~10 meter Motion Range
*120 Degree Horizontal Angle Coverage
*Temperature Function
*Low battery detection
*Panasonic CR123A Battery
*Tamper Switch
*Z-Wave 5.02 SDK
*100ft line of sight
*LED Status Indicator
*Operating temp: -15oC~40oC
*Working Voltage: 3V
*Dimensions: 84*62*50mm
*Z-wave Certification #US ZC08-11040004 / EU ZC08-12100006
*Frequency Available: US/EU/JP/IN/BR Version Available
*On Japan Telec Certification Process
*Taiwan NCC Approved |
Brand | Vision |
Product Identifier | ZP3102IN |
OEM Version | v03 |
Hardware Platform | ZM3102 |
Z-Wave Version | 4.54 |
Library Type | SLAVE_ROUTING |
Device Type | Not Z-Wave Plus |
Manufacturer ID | 0x0109 |
Product Type ID | 0x2002 |
Product ID | 0x0203 |
Frequency Plans | IN: 865.20MHz |
Categories | Sensors |
Countries / Regions | India |
Controlled Command Classes | |
Documents | |
Supports Explorer Frames | Yes |
