Product Recognition | |
|---|
Certification Number | ZC10-18096241 |
|---|

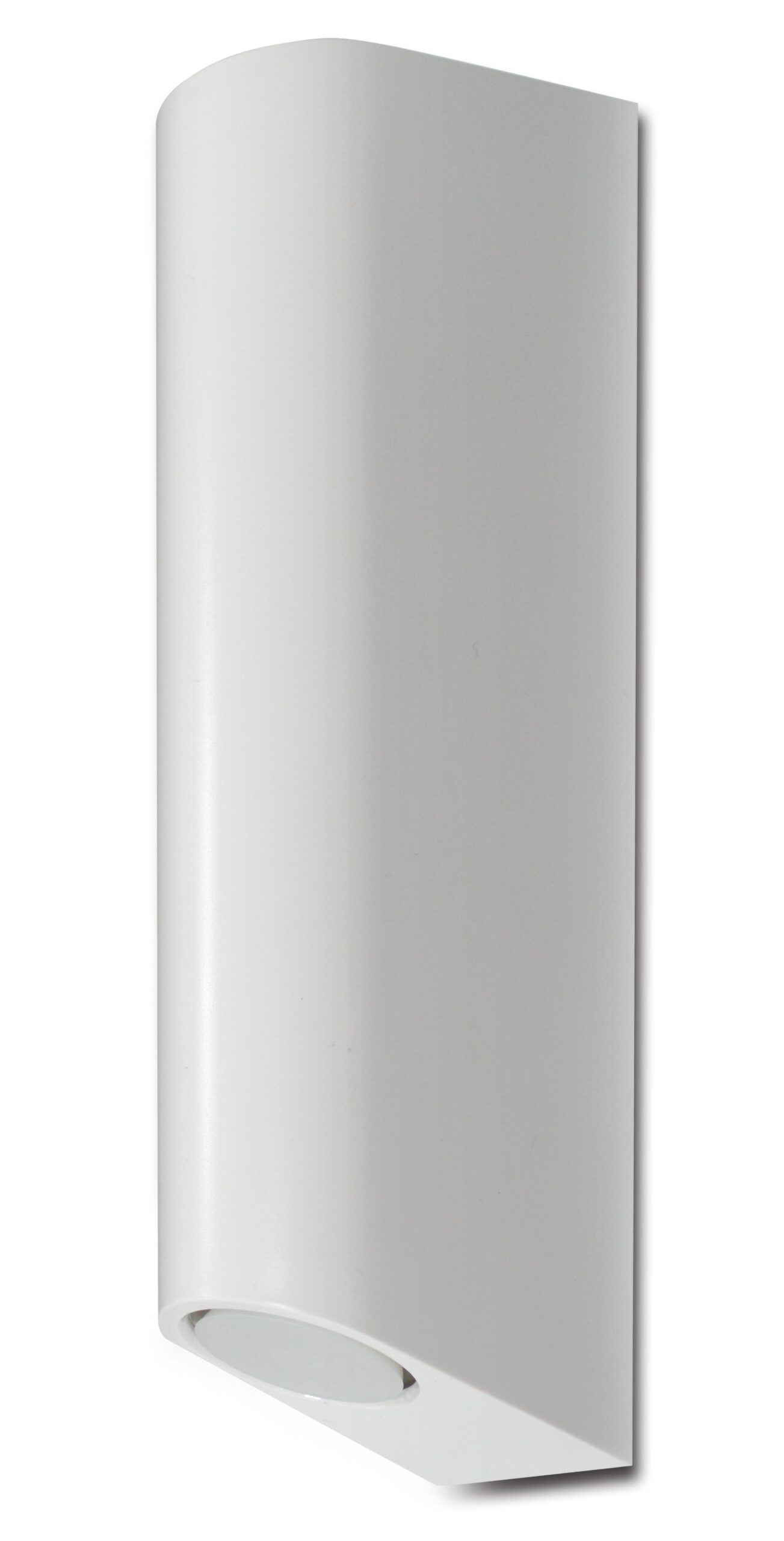

Name | Voice Siren |
|---|
Short Description | SE813 is a battery operated alarm siren with audio playback capability and built-in temperature/humidity sensor. |
|---|
Long Description | The product is a voice alert and notification device. Prerecorded voice sounds can be stored into its memory and played back through gateway commands. For example, when email
arrives, the audio sound “you’ve got mail” can be heard from its speaker.
It also has a separate piezoelectric siren to emit a deafening sound when activated under emergency.
In addition, the built in digital temperature sensor and humidity sensor reports environmental condition to the controller. |
|---|
Brand | Everspring |
|---|
Product Identifier | SE813-2 |
|---|
OEM Version | HW: 1 FW: 1.02:00.01 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Siren |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0060 |
|---|
Product Type ID | 0x000C |
|---|
Product ID | 0x0003 |
|---|
User Icon | 0x0F00 |
|---|
Installer Icon | 0x0F00 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Security Add-Ons |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SOUND_SWITCH | Sound Switch | 0x79 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Battery Quantity | | Supported Notification Types | | Sensors | | Battery Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer via Internet |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Siren alarm period | Siren alarm period can be set 10~600 seconds. | 0 | 2 | 0 | 0 | 180 | From | To | Description |
|---|
10 | 600 | Siren alarm period can be set 10~600 seconds. |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Put the Z-Wave Controller into inclusion mode.
2. Press the Link button 3 times within 1.5 seconds to put the unit into inclusion mode. | 2 | Exclusion | 1. Put the Z-Wave Controller into exclusion mode.
2. Press the Link button 3 times within 1.5 seconds to put the unit into exclusion mode. | 5 | Factory Reset | 1. Press the Link button 3 times within 1.5 seconds to put the unit into exclusion mode.
2. Within 1 second of step 1, press the Link button again and hold for 5 seconds.
3. Node ID is excluded. The unit reverts to factory default state.
(This procedure should only be used when the controller is inoperable.) |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Siren | (Refer to parameters): State idle | Siren | Siren status: Siren active | Siren | Unknown event/state |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
