Product Recognition | |
|---|---|
Certification Number | ZC10-15070024 |

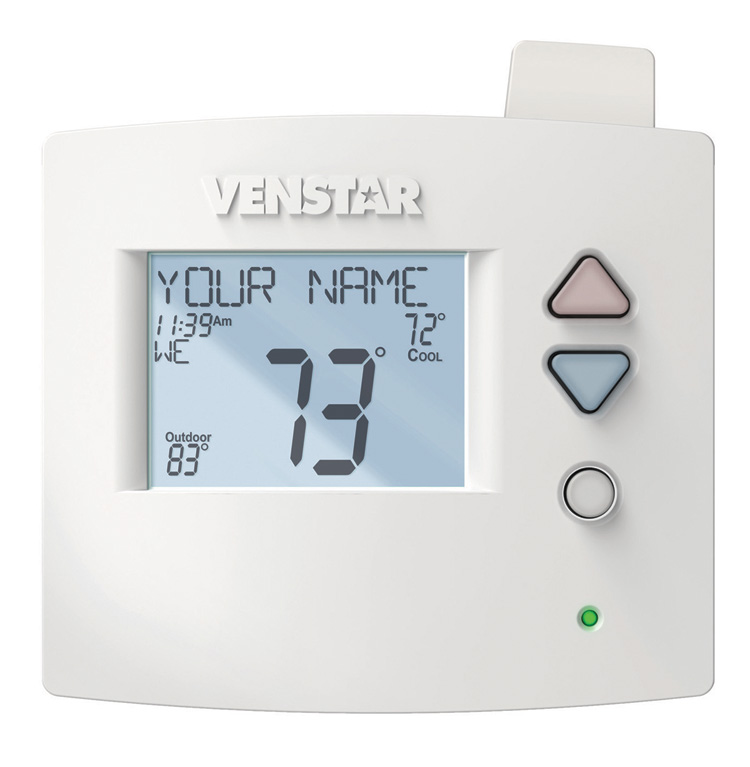

Name | Voyager |
Short Description | Voyager offers users connectivity and the convenience of rich features in seven new models, each with its own set of features and affordable price points. |
Long Description | Venstar Voyager thermostat features include:
• Large, easy-to-read display with:
o Scrolling information for easy setup
o Adjustable backlight intensity
o Backlit, color-coded buttons and legends
o Bi-color LED that indicates a heating or cooling demand
o Choice of Fahrenheit or Celsius display
o Display that can show dealer name, phone number and service alerts
o Choice of English, Spanish or French
• HVAC system integration, including:
o Gas, electric or heat pump, including multi-stage systems
o Dry contact input
o Outdoor sensor ready
o Compatibility with condensate overflow warning systems by showing a lockout compressor message on the display
• Keypad Lock
• Non-volatile memory
• Wireless connectivity with optional accessory
• Automated Demand Response (ADR) ready
• Equipment Fault Protection (EFP) notification
• API available
There are three models of Voyager residential thermostats, all of which feature “Simple as You Want” operation with a choice of 7-day, 5+2 day or 1-day programming.
o Model T3700 features 2 heat, 1 cool stages.
o Model T3800 features 4 heat, 1 cool stages plus control to monitor a second temperature sensor, setpoint limiting and smart recovery.
o Model T3900 is dual fuel capable, controls humidification/dehumidification and lockout auxiliary heat based on outdoor temperature.
There are three models of Voyager commercial thermostats, plus a model designed specifically for the school environment, all of which are Title 24 compliant and offer Random Start functionality.
o Model T4700 is non-programmable and features 2-heat and 2-cool functionality with setpoint limiting.
o Model T4800 features “Simple as You Want” operation with a choice of 7-day, 5+1+1 day or 1-day programming with up to three occupied periods per day.
o Model T4900 includes all of the T4800 features plus the ability to control or monitor a second temperature sensor, controls humidification/dehumidification, and Energy Watch functionality.
o Model T4900SCH has unique programming and security capabilities specifically designed for the classroom.
For more information about Venstar’s Voyager thermostats, please visit: http://www.venstar.com |
Brand | Venstar |
Product Identifier | T3700 / T3800 / T3900 / T4700 / T4800 / T4900 |
OEM Version | 01 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.51.06 |
Library Type | SLAVE_ENHANCED |
Device Type | Thermostat - HVAC |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x0198 |
Product Type ID | 0x0003 |
Product ID | 0x0001 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | Thermostats |
Countries / Regions | United States of America |
Documents | |
Association Groups | |
Texts | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
