Product Recognition

Certification Number

ZC10-19056515

Name

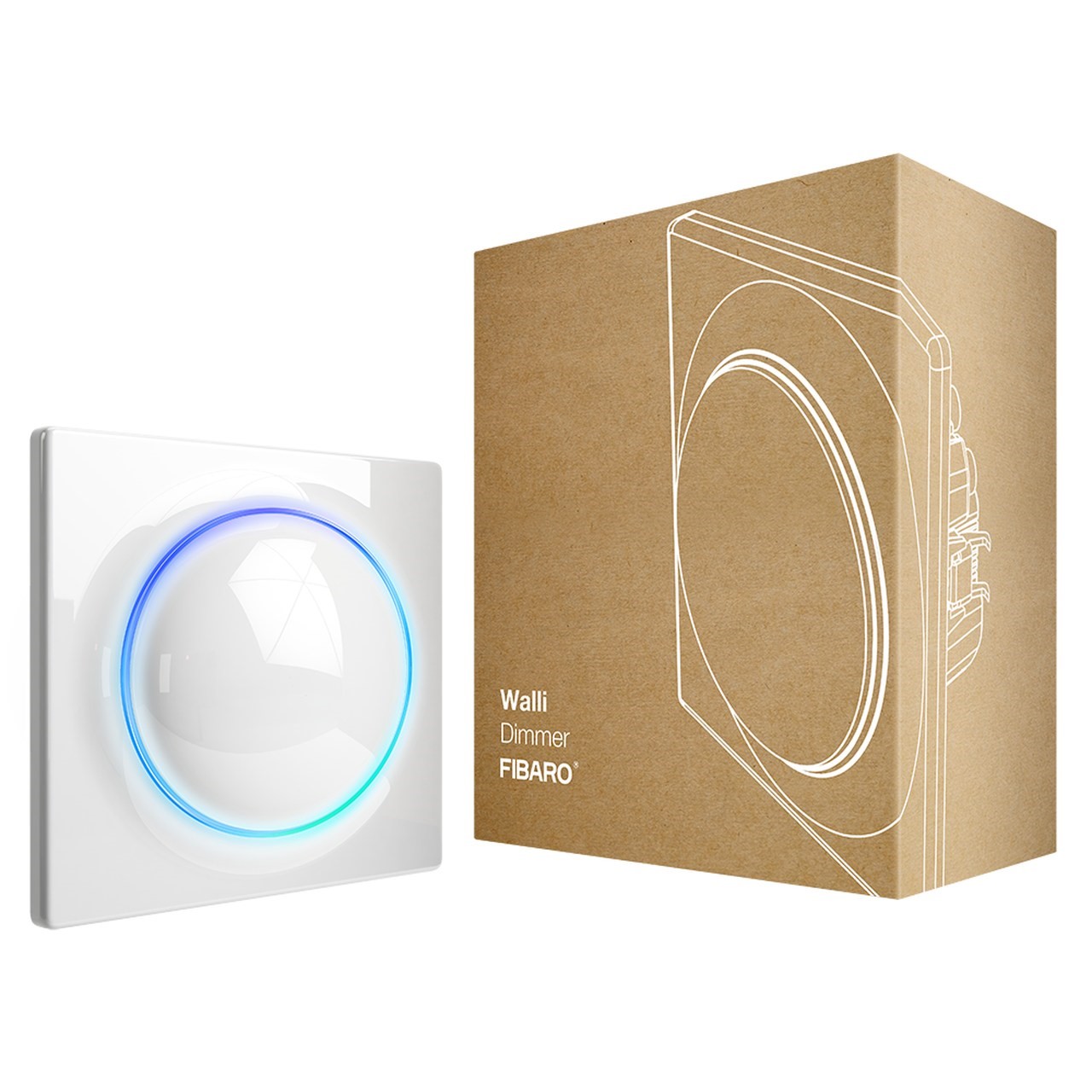

Wall Dimmer

Short Description

FIBARO Walli Dimmer is a smart wall dimmer designed to control light source via Z-Wave network.

Long Description

FIBARO Walli Dimmer is a smart wall dimmer designed to control light source via Z-Wave network. It measures active power and energy consumed by the controlled load. You can install it with provided cover plate or other compatible. Main features of FIBARO Walli Dimmer: - Can be used for dimming: o 110/230V operated conventional incandescent and halogen, o 12V operated ELV halogen lamps and dimmable LED bulbs (with electronic transformers), o 12V operated MLV halogen lamps (with ferromagnetic transformers), o dimmable LED bulbs, o dimmable compact fluorescent CFL tube lamps, o supported dimmable light sources (power factor > 0.5) with minimal power of 5VA using FIBARO Bypass 2. - Can be used for switching: o compact fluorescent CFL tube lamps with electronic ballast, o fluorescent tube lamps with electronic ballast, o LED bulbs (power factor > 0.7), o supported light sources (power factor > 0.5) with minimal power of 5VA using FIBARO Bypass 2. - Uses different operating modes: o „Trailing edge” for resistive loads (R) o „Trailing edge” for resistive-capacitive loads (RC) o „Leading edge” for resistive-inductive loads (RL) - Can be used with provided cover plate or one of the following: o GIRA – System 55 (Standard 55, E2, Event, Event Clear), o Legrand – Céliane, o Schneider – Odace. - Active power and energy consumption metering. - Can be installed in two and three-wired configuration. - Calibrates automatically to the connected light source. - Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption. - Works as Z-Wave signal repeater (all non-battery operated devices within the network will act as repeaters to increase reliability of the network). - May be used with all devices certified with the Z-Wave Plus certificate and should be compatible with such devices produced by other manufacturers.

Brand

FIBARO

Product Identifier

FGWDEU-111

OEM Version

HW: 1 FW: 5.01:05.01:03.06

Hardware Platform

ZM5101

Z-Wave Version

6.81.01

Library Type

SLAVE_ENHANCED_232

Device Type

Light Dimmer Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x010F

Product Type ID

0x1C01

Product ID

0x1000

User Icon

0x1C00

Installer Icon

0x1C00

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Energy Meters, All Lighting Devices, On/Off Switches/Devices

Countries / Regions

European Union

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Remember device state

This parameter determines how the device will react in the event of power supply failure (e.g. power outage).

From	To	Description
1	1	restores remembered state after restoring power
0	0	remains switched off after restoring power

Buttons orientation

This parameter allows reversing the operation of the buttons.

From	To	Description
1	1	reversed (1st button dims, 2nd button brightens)
0	0	default (1st button brightens, 2nd button dims)

Alarm configuration - 2nd slot

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.

From	To	Description
1	1	[MSB] – Notification Type
2	2	Notification Value
3	3	Event/State Parameters
4	4	[LSB] – action

Second button – scenes sent

This parameter determines which actions result in sending scene IDs assigned to them. Values can be combined (e.g. 1+2=3 means that scenes for single and double click are sent). Enabling scenes for triple click disables entering the device in learn mode by triple clicking.

From	To	Description
1	1	Key pressed 1 time
2	2	Key pressed 2 time
4	4	Key pressed 3 time
8	8	Key hold down and key released

Power reports – include self-consumption

This parameter determines whether the power measurements should include power consumed by the device itself.

From	To	Description
0	0	Self-consumption not included
1	1	Self-consumption included

Energy reports – on change

This parameter defines minimal change (from the last reported) in measured energy that results in sending new report.

From	To	Description
0	0	reporting on change disabled
1	500	(0.01-5kWh, 0.01kWh step) – minimal change

150

Minimum brightness level

This parameter is set automatically during the calibration process, but can be changed manually after the calibration.

From	To	Description
1	98	(1-98%, 1% step) – level of brightness

151

Maximum brightness level

This parameter is set automatically during the calibration process, but can be changed manually after the calibration.

From	To	Description
2	99	(2-99%, 1% step) – level of brightness

152

Incandescence level of dimmable compact fluorescent lamps

The virtual value set as a percentage level between parameters MIN (1%) and MAX. (99%). The device will set to this value after the first switch on. It is required for warming up and switching dimmable compact fluorescent lamps and certain types of light sources.

From	To	Description
1	99	(1-98%, 1% step) – level of brightness

153

Incandescence time of dimmable compact fluorescent lamps

This parameter determines the time required for switching compact fluorescent lamps and certain types of light sources. Setting this parameter to 0 will disable the incandescence functionality.

From	To	Description
0	255	(0-25.5s, 0.1s step) – incandescence time

154

Automatic control – dimming step size

This parameter defines the percentage value of dimming step during the automatic control.

From	To	Description
1	99	(1-99%, 1% step) – dimming step

155

Automatic control – time of dimming step

This parameter defines the time of performing a single dimming step set in parameter 154 during the automatic control.

From	To	Description
0	255	This parameter defines the time of performing a single dimming step set in parameter 154 during the automatic control.

156

Manual control – dimming step size

This parameter defines the percentage value of the dimming step during the manual control.

From	To	Description
3	3	Event/State Parameters
4	4	[LSB] – action
1	1	[MSB] – Notification Type
1	99	(1-99%, 1% step) – dimming step
2	2	Notification Value

157

Manual control – time of dimming step

This parameter defines the time of performing a single dimming step set in parameter 156 during the manual control.

From	To	Description
0	255	(0-2.55s, 10ms step)

158

Auto-off functionality

This parameter allows to automatically switch off the device after a specified time from switching the light source on. It may be useful when the device is installed in the stairway.

From	To	Description
0	0	auto-off disabled
1	32767	(1s-9.1h, 1s step) – auto-off time

159

Force auto-calibration

Changing value of this parameter will force the calibration process. During the calibration parameter is set to 1 or 2 and switched to 0 upon completion.

From	To	Description
0	0	readout
1	1	force auto-calibration without FIBARO Bypass 2
2	2	force auto-calibration with FIBARO Bypass 2

160

Auto-calibration status (read-only parameter)

This parameter determines operating mode of the device (automatic/manual settings).

From	To	Description
0	0	calibration procedure not performed or the device operates on manual settings
1	1	the device operates on auto-calibration settings

LED frame – power limit

This parameter determines maximum active power. Exceeding it results in the LED frame flashing violet. Function is active only when parameter 11 is set to 8 or 9.

3500

From	To	Description
100	5000	(10.0-500.0W, step 0.1W) – power threshold

165

Double click – set level

This parameter defines brightness level set after double-clicking any of the buttons. The same value is also sent to devices associated with 2nd and 3rd association group.

From	To	Description
0	99	(0-99%, 1% step) – set level

170

Load control mode

This parameter allows to set the desired load control mode. Auto-calibration sets value of this parameter to 2 (control mode recognized during auto-calibration), but the installer may force control mode using this parameter. After changing parameter value, turn the load OFF and ON to change control mode.

From	To	Description
0	0	forced leading edge
1	1	forced trailing edge
2	2	control mode selected automatically (based on auto-calibration)

171

Load control mode recognized during auto-calibration (read only)

This parameter allows to read load control mode that was set during auto-calibration.

From	To	Description
0	0	leading edge
1	1	trailing edge

172

ON/OFF mode

This mode is necessary while connecting non-dimmable light sources. Setting this parameter to 1 automatically ignores brightening/dimming time settings. Forced auto-calibration will set this parameter’s value to 2.

From	To	Description
0	0	ON/OFF mode disabled (dimming is possible)
1	1	ON/OFF mode enabled (dimming is not possible)
2	2	mode selected automatically

173

Dimmability of the load (read only)

This parameter allows to read if the load detected during calibration procedure is dimmable.

From	To	Description
0	0	load recognized as dimmable
1	1	load recognized as non-dimmable

179

Approximated power at the maximum brightness level

This parameter determines the approximate value of the power that will be reported by the device at its maximum brightness level.

From	To	Description
0	500	(0-500W, 1W step) – power consumed by the load at the maximum brightness level.

161

Burnt out bulb detection

This parameter defines percentage power variation (compared to power consumption measured during the calibration) to be interpreted as load error/burnt out bulb.

From	To	Description
0	0	function disabled
1	99	(1-99%, 1% step) – power variation

162

Time delay of a burnt out bulb and overload detection

This parameter defines detection delay for the burnt out bulb (parameter 161) and overload (parameter 2).

From	To	Description
0	0	detection of a burnt out bulb disabled
1	255	(1-255s, 1s step) – time delay

163

First button – Switch ON value sent to 2nd and 3rd association groups

This parameter defines value sent with Switch OFF command to devices associated in 2nd and 3rd association group.

255

From	To	Description
0	99	value sent
254	254	send value equal to the current level
255	255	value sent

164

Second button – Switch OFF value sent to 2nd and 3rd association groups

This parameter defines value sent with Switch OFF command to devices associated in 2nd and 3rd association group.

From	To	Description
0	99	value sent
254	254	send value equal to the current level

164

Second button – Switch OFF value sent to 2nd and 3rd association groups

This parameter defines value sent with Switch ON command to devices associated in 2nd and 3rd association group.

From	To	Description
0	99	value sent
254	254	send value equal to the current level
255	255	value sent

174

Soft-start functionality

This parameter allows to set time required to warm up the filament of halogen bulb.

From	To	Description
0	0	no soft-start
1	1	short soft-start (0.1s)
2	2	long soft-start (0.5s)

175

Auto-calibration after power on

This parameter determines the trigger of auto-calibration procedure, e.g. power on, load error, etc.

From	To	Description
0	0	no auto-calibration after power on
2	2	Auto-calibration after each power on
4	4	Auto-calibration after each power on or after each LOAD ERROR (no load, load failure, burnt out bulb), if parameter 176 is set to 1 also after SURGE (output overvoltage) and OVERCURRENT (output overcurrent)
3	3	Auto-calibration after each LOAD ERROR (no load, load failure, burnt out bulb), if parameter 176 is set to 1 also after SURGE (output overvoltage) and OVERCURRENT (output overcurrent)

176

Behaviour after OVERCURRENT or SURGE

Error occurrences related to surge or overcurrent results in turning off the output to prevent possible malfunction. By default the device performs three attempts to turn on the load (useful in case of temporary, short failures of the power supply).

From	To	Description
0	0	device permanently disabled until re-enabling by command or external switch
1	1	three attempts to turn on the load

177

Brightness level correction for flickering loads

Correction reduces spontaneous flickering of some capacitive loads (e.g. dimmable LEDs) at certain brightness levels in 2-wire installation. In countries using ripple-control, correction may cause changes in brightness. In this case it is necessary to disable correction or adjust the time of correction for flickering loads.

255

From	To	Description
0	0	automatic correction disabled
1	254	(1-254s, 1s step) – duration of correction
255	255	automatic correction always enabled

178

Method of calculating the active power

This parameter defines how to calculate active power. It is useful in a case of 2-wire connection with light sources other than resistive.

From	To	Description
0	0	measurement based on the standard algorithm
1	1	approximation based on the calibration data
2	2	approximation based on the control angle

Overload safety switch

This function allows to turn off the controlled device in case of exceeding the defined power. Controlled device can be turned back on via the button or sending a control frame.

3500

From	To	Description
0	0	function disabled
10	5000	(1.0-500.0W, step 0.1W) – power threshold

LED frame – colour when ON

This parameter defines the LED colour when thedevice is ON. When set to 8 or 9, LED frame colour will change depending on he measured power and parameter 10. Other colours are set permanently and do not depend on power consumption.

From	To	Description
0	0	LED disabled
1	1	White
2	2	Red
3	3	Green
4	4	Blue
5	5	Yellow
6	6	Cyan
7	7	Magenta
9	9	colour changes in steps depending on measured power
8	8	colour changes smoothly depending on measured power

Texts

ID	Description	Value
4	Device Wake-Up	FIBARO Walli Dimmer is powered using DC power supply unit so it is always awake.
5	Factory Reset	Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Resetting to factory defaults does not reset energy consumption memory. 1. Quickly, three times click, then press and hold one of the buttons to enter menu. 2. Release the button when the device glows yellow. 3. Quickly click the button to confirm. 4. After a few seconds the device will be restarted, which is signalled with the red LED colour. Please include a request to use the reset procedure only when the primary controller is missing or inoperable.
2	Exclusion	To remove the device from the Z-Wave network: 1. Set the main controller into remove mode (see the controller’s manual). 2. Quickly, three times click one of the buttons. 3. LED will start blinking yellow, wait for the removing process to end. 4. Successful removing will be confirmed by the Z-Wave controller’s message and red LED colour. 5. The device will start calibrating the load.
1	Inclusion	To add the device to the Z-Wave network manually: 1. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 2. Quickly, three times click one of the buttons. 3. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the underlined part of the DSK (label on the bottom of the box). 4. LED will start blinking yellow, wait for the adding process to end. 5. Adding result will be confirmed by the Z-Wave controller’s message and the LED frame: - Green - successful (non-secure, S0, S2 non-authenticated), - Magenta - successful (Security S2 Authenticated), - Red – not successful. To add the device to the Z-Wave network using Smart Start: 1. Set the main controller in Security S2 Authenticated add mode (see the controller’s manual). 2. Scan the DSK QR code or input the underlined part of the DSK (label on the bottom of the box). 3. Power the device. 4. Wait for the calibration process to end. Light may blink, the device will be switched off once the process is completed. 5. Wait for the adding process to start (up to few minutes), which is signaled with yellow LED blinking. 6. Adding result will be confirmed by the Z-Wave controller’s message and the LED frame: - Green - successful (non-secure, S0, S2 non-authenticated), - Magenta - successful (Security S2 Authenticated), - Red – not successful.
