Product Recognition

Certification Number

ZC10-19056516

Name

Wall Outlet

Short Description

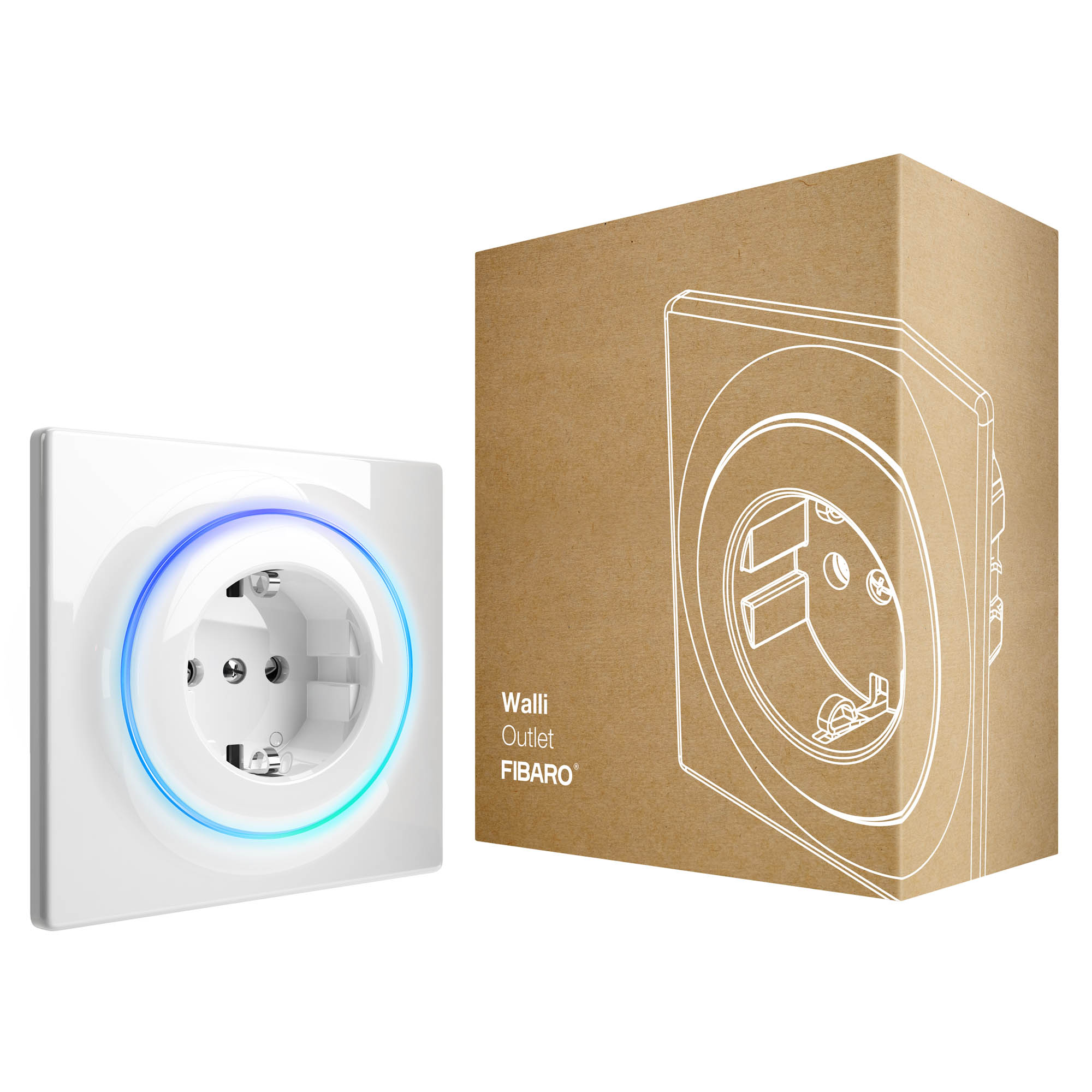

FIBARO Walli Outlet is a smart electrical outlet designed to control electrical devices via Z-Wave network.

Long Description

FIBARO Walli Outlet is a smart electrical outlet designed to control electrical devices via Z-Wave network. It measures active power and energy consumed by the controlled load. You can install it with provided cover plate or other compatible. Main features of FIBARO Walli Outlet: - Can turn ON/OFF plugged device remotely. - Available in two versions for plug types: o Type E, o Type F. - Can be used with provided cover plate or one of the following: o GIRA – System 55 (Standard 55, E2, Event, Event Clear), o Legrand – Céliane, o Schneider – Odace. - Active power and energy consumption metering. - Displays current load using multicolour LED frame (with FIBARO cover plate). - Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption. - Works as Z-Wave signal repeater (all non-battery operated devices within the network will act as repeaters to increase reliability of the network). - May be used with all devices certified with the Z-Wave Plus certificate and should be compatible with such devices produced by other manufacturers.

Brand

FIBARO

Product Identifier

FGWOx-011

OEM Version

HW: 1 FW: 5.01:05.01

Hardware Platform

ZM5101

Z-Wave Version

6.81.01

Library Type

SLAVE_ENHANCED_232

Device Type

On/Off Power Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x010F

Product Type ID

0x1F01

Product ID

0x1000

User Icon

0x0702

Installer Icon

0x0702

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Energy Meters, All Lighting Devices, On/Off Switches/Devices

Countries / Regions

European Union

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Remember device state

This parameter determines how the device will react in the event of power supply failure (e.g. power outage).

From	To	Description
0	0	remains switched off after restoring power
1	1	restores remembered state after restoring power

Overload safety switch

This function allows to turn off the controlled device in case o f exceeding the defined power. Controlled device can be turned back on via button or sending a control frame.

From	To	Description
0	0	function disabled
10	36800	(1.0-3680.0W, step 0.1W) – power threshold

LED frame – power limit

This parameter determines maximum active power. Exceeding it results in the LED frame flashing violet. Function is active only when parameter 11 is set to 8 or 9.

36800

From	To	Description
500	36800	(50.0-3680.0W, step 0.1W) – power threshold

LED frame – colour when ON

This parameter defines the LED colour when the device is ON. When set to 8 or 9, LED frame colour will change depending on he measured power and parameter 10. Other colours are set permanently and do not depend on power consumption.

From	To	Description
0	0	LED disabled
1	1	White
2	2	Red
3	3	Green
4	4	Blue
5	5	Yellow
6	6	Cyan
7	7	Magenta
8	8	colour changes smoothly depending on measured power
9	9	colour changes in steps depending on measured power

Alarm configuration - 2nd slot

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.

From	To	Description
1	1	[MSB] – Notification Type
2	2	Notification Value
3	3	Event/State Parameters
4	4	[LSB] – action

Associations – 2nd group

This parameter determines which actions will result in sending control frames to devices associated in 2nd group.

From	To	Description
1	1	Power exceeds UP threshold
2	2	Power drops below DOWN threshold
3	3	Power exceeds UP threshold or drops below DOWN threshold

Associations – UP threshold

This parameter determines upper power threshold for 2nd association group (paramter 45). Exceeding it will result in sending value set in parameter 47. Cannot be lower than DOWN threshold (parameter 48).

500

From	To	Description
100	36800	(10-3680W, 0.1W step) – power threshold

Associations – UP threshold frame value

This parameter defines value sent to devices in 2nd association group when power exceeds UP threshold set in parameter 46 (using Basic Command Class).

255

From	To	Description
0	0	turn OFF
1	99	set level
255	255	turn ON

Associations – DOWN threshold

This parameter determines lower power threshold for 2nd association group (paramter 45). Exceeding it will result in sending value set in parameter 49.

300

From	To	Description
0	36700	(0-3670W, 0.1W step) – power threshold

Associations – DOWN threshold frame value

This parameter defines value sent to devices in 2nd association group when power drops below DOWN threshold set in parameter 48 (using Basic Command Class).

From	To	Description
0	0	turn OFF
1	99	set level
255	255	turn ON

Power reports – include self-consumption

This parameter determines whether the power measurements should include power consumed by the device itself.

From	To	Description
0	0	Self-consumption not included
1	1	Self-consumption included

Energy reports – on change

This parameter defines minimal change (from the last reported) in measured energy that results in sending new report.

From	To	Description
0	0	reporting on change disabled
1	500	(0.01-5kWh, 0.01kWh step) – minimal change

Texts

ID	Description	Value
4	Device Wake-Up	FIBARO Walli Outlet is powered using DC power supply unit so it is always awake.
1	Inclusion	To add the device to the Z-Wave network manually: 1. Power the device. 2. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 3. Quickly, three times click one of the buttons. 4. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the underlined part of the DSK (on the device label). 5. LED will start blinking yellow, wait for the adding process to end. 6. Adding result will be confirmed by the Z-Wave controller’s message and the LED frame: - Green - successful (non-secure, S0, S2 non-authenticated), - Magenta - successful (Security S2 Authenticated), - Red – not successful. To add the device to the Z-Wave network using SmartStart: 1. Set the main controller in Security S2 Authenticated add mode (see the controller’s manual). 2. Scan the DSK QR code or input the underlined part of the DSK (on the device label). 3. Power the device. 4. Wait for the adding process to start (up to few minutes), which is signaled with yellow LED blinking. 5. Adding result will be confirmed by the Z-Wave controller’s message and the LED frame: - Green - successful (non-secure, S0, S2 non-authenticated), - Magenta - successful (Security S2 Authenticated), - Red – not successful.
5	Factory Reset	Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Resetting to factory defaults does not reset energy consumption memory. 1. Press and hold the button to enter the menu. 2. Release the button when the device glows yellow. 3. Quickly click the button to confirm. 4. Device will blink yellow to confirm. 5. After a few seconds the device will be restarted, which is signalled with the red LED colour.
2	Exclusion	To remove the device from the Z-Wave network: 1. Power the device. 2. Set the main controller into remove mode (see the controller’s manual). 3. Quickly, three times click the button. 4. LED will start blinking yellow, wait for the removing process to end. 5. Successful removing will be confirmed by the Z-Wave controller’s message and red LED colour.

Supported / Controlled Meter Types

Supported Notification Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
