Certification Number | ZC10-16020013 |
|---|

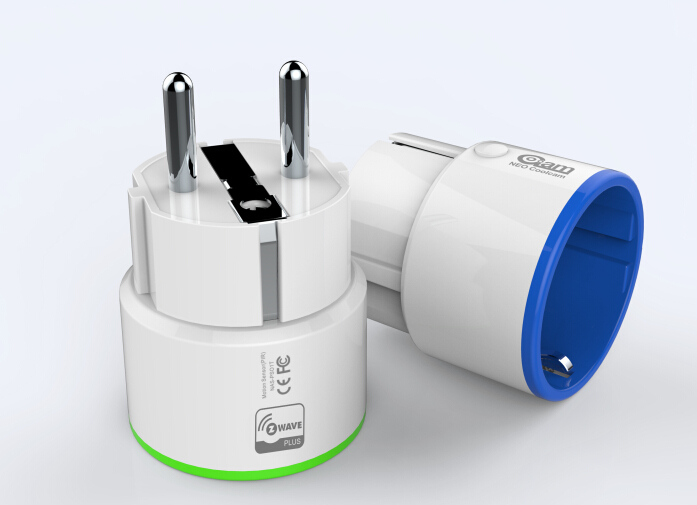

Name | Wall Plug |
|---|
Short Description | Smart power plug, control the on/off of electric appliance |
|---|
Long Description | This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
In the front casing, there is button that is used to carry out include, exclude or reset factory default settings on PCB Board.
When power is first supplied, the LED will flash on and off with yellow alternately every 1 second intervals within 5 seconds if the detector has not been added a Z-Wave network, otherwise the LED will flash on and off 5 times with cyan alternately every 300 millisecond. Please get familiar with the terms below before starting the operations.
This Plug has function that remembers the relay states, the plug will turn on after power up next time if the plug is turn on before the power cut-off. |
|---|
Brand | Coolcam |
|---|
Product Identifier | NAS-WR01Z |
|---|
OEM Version | 41 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0258 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0087 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 3 | 0 | Associations
Through an association this Plug may control another Z-Wave network device, e.g. a alarm device, wall plug, lighting etc.
The Wall Plug provides three association groups, and every group can be support to associated 5
devices max.
GROUP 1 is lifeline service that assigned to plug status – ON/OFF. It enables the Plug to send reports and readings to Z-Wave Controller or Z-Wave Gateway. This Group Support:
NOTIFICATION_REPORT_V4 COMMAND_CLASS_METER_V4 COMMAND_CLASS_SWITCH_BINARY DEVICE_RESET_LOCALLY_NOTIFICATION
GROUP 2 allows for sending control commands to associated devices such as Siren, relay module, lighting, etc. If current load is over the max current defined in parameter #3, the Plug will send a BASIC_SET (0xFF) to associated devices. When current load is normal, plug will send a BASIC_SET (0x00) to associated devices. This Group Support:
BASIC_SET
GROUP 3 allows for Send Notification to associated devices in this group. This Group Support: NOTIFICATION_REPORT_V4 |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Add the Device (Smart Plug) to Z-Wave Network
1.Make sure the sensor is powered.
2.Set Z-Wave controller or Z-Wave gateway into inclusion mode (Refer to the controller or gateway operating manual)
3.Press the button three times within 1.5 second, the device will enter inclusion mode. And the LED will flash on and off with green alternately five times within 2 seconds. | 2 | Exclusion | Delete the Device (Smart Plug) from Z-Wave Network
1.Make sure the sensor is powered.
2.Set Z-Wave controller or Z-Wave gateway into exclusion mode (Refer to the controller or gateway operating manual)
3.Press the button three times within 1.5 second, the device will enter exclusion mode. And the LED will flash on and off with yellow alternately five times within 2 seconds. | 5 | Factory Reset | Restore the Device (Smart Plug) to Factory Default Settings
Reset procedure will delete all information on the Z-Wave network and Z-Wave controller or Z-Wave Gateway, and restore the sensor to factory default settings.
1.Make sure the sensor is powered.
2.Press and hold the button more than 10 seconds until the LED blink with red color.
3.Release the button.
Notice: Please use this procedure only in the event that the network primary controller is missing or otherwise inoperable. | 4 | Device Wake-Up | this power plug is connected to power, not battery powered | 6 | Additional Special Features | SPECIFICATIONS
Power Supply: AC110 ~ 230V(±10%), 50/60Hz
Rate Load Current: 13A, 110-230V, 50/60Hz – Continuous Load
16A, 110-230V, 50/60Hz – Momentary Load
Power Consumption: 0.13W
EU Standards Compliance:
Radio Protocol: Z-Wave
Radio Frequency: EU – 868.4MHz
US – 908.4MHz
Valid Range: Up to 60m outdoors
Up to 30m indoors (Depending on terrain and building
structure)
Operational Temperature: 0 – 40 ℃ |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
