Wall Roller Shutter – Z-Wave Alliance Product Catalog

Back to Listing

Product Recognition

Certification Number

ZC10-19056517

Name

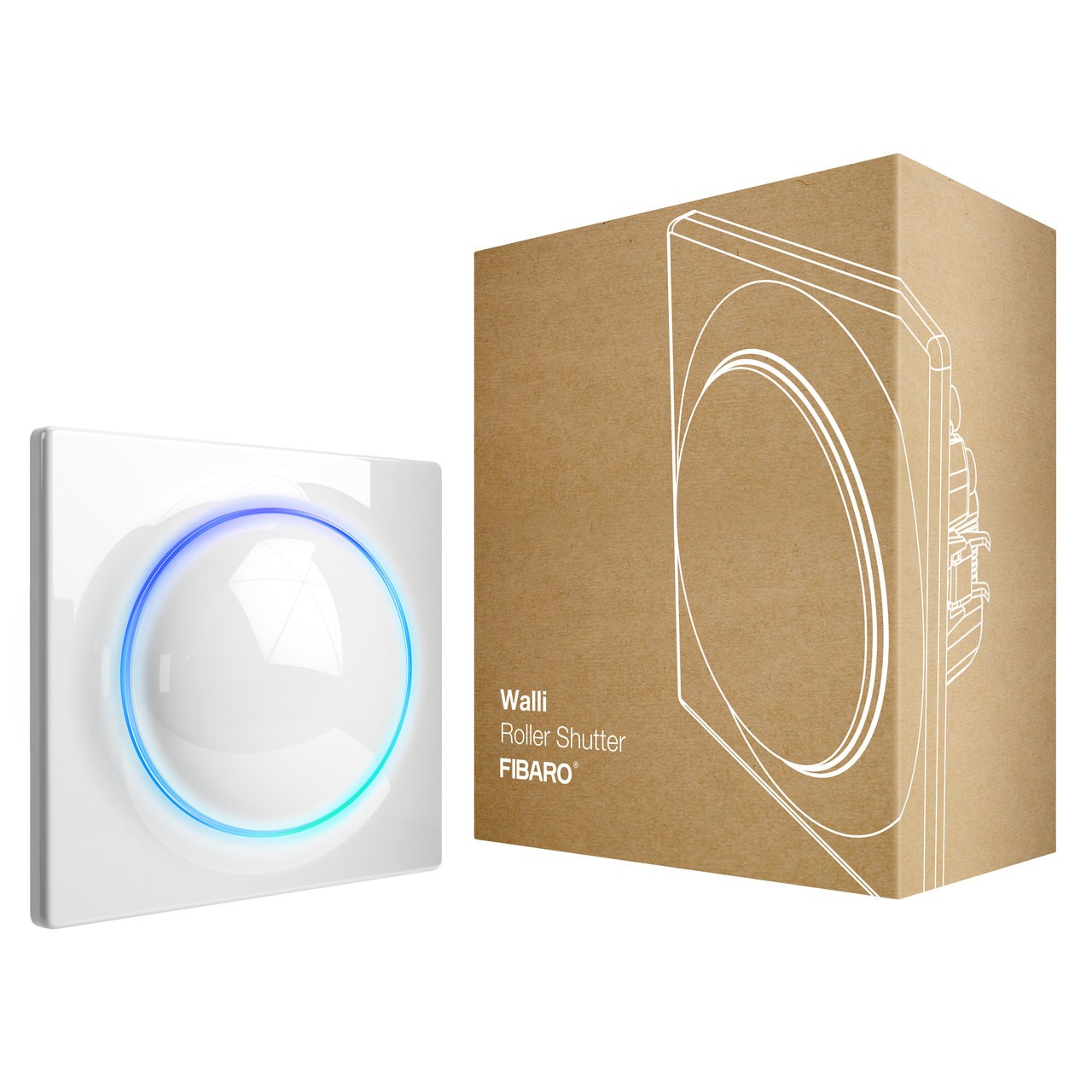

Wall Roller Shutter

Short Description

FIBARO Walli Roller Shutter is a smart wall switch designed to control motors of roller blinds, awnings, venetian blinds and other single phase, AC powered devices via Z-Wave network.

Long Description

FIBARO Walli Roller Shutter is a smart wall switch designed to control motors of roller blinds, awnings, venetian blinds and other single phase, AC powered devices via Z-Wave network. It measures active power and energy consumed by the controlled load. You can install it with provided cover plate or other compatible. Main features of FIBARO Walli Roller Shutter: - Can be used with: o Roller blinds, o Venetian blinds, o Awnings, o Blind motors with electronic or mechanical limit switches. - Can be used with provided cover plate or one of the following: o GIRA – System 55 (Standard 55, E2, Event, Event Clear), o Legrand – Céliane, o Schneider – Odace. - Active power and energy consumption metering. - Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption. - Works as Z-Wave signal repeater (all non-battery operated devices within the network will act as repeaters to increase reliability of the network). - May be used with all devices certified with the Z-Wave Plus certificate and should be compatible with such devices produced by other manufacturers.

Brand

FIBARO

Product Identifier

FGWREU-111

OEM Version

HW: 1 FW: 5.01:05.01

Hardware Platform

ZM5101

Z-Wave Version

6.81.01

Library Type

SLAVE_ENHANCED_232

Device Type

Window Covering - Endpoint Aware

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x010F

Product Type ID

0x1D01

Product ID

0x1000

User Icon

0x1900

Installer Icon

0x1900

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Energy Meters, All Lighting Devices, On/Off Switches/Devices, Motor Control, Window Covering

Countries / Regions

European Union

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_AUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Buttons orientation

This parameter allows reversing the operation of the buttons.

From	To	Description
0	0	default (1st button UP, 2nd button DOWN)
1	1	reversed (1st button DOWN, 2nd button UP)

Outputs orientation

This parameter allows reversing the operation of Q1 and Q2 without changing the wiring (e.g. in case of invalid motor connection).

From	To	Description
0	0	(Q1 – UP, Q2 – DOWN)LED disabled
1	1	reversed (Q1 – DOWN, Q2 – UP)

Alarm configuration - 2nd slot

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.

From	To	Description
1	1	[MSB] – Notification Type
2	2	Notification Value
3	3	Event/State Parameters
4	4	[LSB] – action

Second button – scenes sent

This parameter determines which actions result in sending scene IDs assigned to them. Values can be combined (e.g. 1+2=3 means that scenes for single and double click are sent). Enabling scenes for triple click disables entering the device in learn mode by triple clicking.

From	To	Description
1	1	Key pressed 1 time
2	2	Key pressed 2 time
4	4	Key pressed 3 time
8	8	Key hold down and key released

Power reports – include self-consumption

This parameter determines whether the power measurements should include power consumed by the device itself.

From	To	Description
0	0	Self-consumption not included
1	1	Self-consumption included

LED frame – colour when moving

This parameter defines the LED colour when the motor is running.

From	To	Description
0	0	LED disabled
1	1	White
2	2	Red
3	3	Green
4	4	Blue
5	5	Yellow
6	6	Cyan
7	7	Magenta

Energy reports – on change

This parameter defines minimal change (from the last reported) in measured energy that results in sending new report.

From	To	Description
0	0	reporting on change disabled
1	500	(0.01-5kWh, 0.01kWh step) – minimal change

150

Force calibration

By setting this parameter to 2 the device enters the calibration mode. The parameter relevant only if the device is set to work in positioning mode (parameter 151 set to 1 or 2).

From	To	Description
0	0	device is not calibratedv
1	1	device is calibrated
2	2	force device calibration

151

Operating mode

This parameter allows adjusting operation according to the connected device.

From	To	Description
1	1	roller blind (with positioning)
2	2	Venetian blind (with positioning)
5	5	roller blind with built-in driver
6	6	roller blind with built-in driver (impulse)

152

Venetian blind – time of full turn of the slats

For Venetian blinds (parameter 151 set to 2) the parameter determines time of full turn cycle of the slats. The parameter is irrelevant for other modes.

150

From	To	Description
0	65535	(0 - 655.35s, every 0.01s) - time of turn

153

Set slats back to previous position

For Venetian blinds (parameter 151 set to 2) the parameter determines slats positioning in various situations. The parameter is irrelevant for other modes.

From	To	Description
0	0	slats return to previously set position only in case of the main controller operation
1	1	slats return to previously set position in case of the main controller operation, momentary switch operation, or when the limit switch is reached
2	2	slats return to previously set position in case of the main controller operation, momentary switch operation, when the limit switch is reached or after receiving the Switch Multilevel Stop control frame

154

Delay motor stop after reaching end switch

The parameter determines the time after which the motor will be stopped after end switch contacts are closed.

From	To	Description
1	255	(0.1s - 25.5 seconds)

155

Motor operation detection

Power threshold interpreted as reaching a limit switch.

From	To	Description
0	0	no detection
1	255	(1-255W) - report interval

156

Time of up movement

This parameter determines the time needed for roller blinds to reach the top. For modes with positioning value is set automatically during calibration, otherwise, it must be set manually.

6000

From	To	Description
1	65535	(0.01 - 655.35 seconds)

157

Time of down movement

This parameter determines the time needed for roller blinds to reach the bottom. For modes with positioning value is set automatically during calibration, otherwise, it must be set manually.

6000

From	To	Description
1	65535	(0.01 - 655.35 seconds)

Texts

ID	Description	Value
4	Device Wake-Up	FIBARO Walli Roller Shutter is powered using DC power supply unit so it is always awake.
5	Factory Reset	Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Resetting to factory defaults does not reset energy consumption memory. 1. Quickly, three times click, then press and hold one of the buttons to enter the menu. 2. Release the button when the device glows yellow. 3. Quickly click the button to confirm. 4. After a few seconds the device will be restarted, which is signalled with the red LED colour.
2	Exclusion	To remove the device from the Z-Wave network: 1. Power the device. 2. Set the main controller into remove mode (see the controller’s manual). 3. Quickly, three times click one of the buttons. 4. LED will start blinking yellow, wait for the removing process to end. 5. Successful removing will be confirmed by the Z-Wave controller’s message and red LED colour.
1	Inclusion	To add the device to the Z-Wave network manually: 1. Power the device. 2. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 3. Quickly, three times click one of the buttons. 4. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the underlined part of the DSK (label on the bottom of the box). 5. LED will start blinking yellow, wait for the adding process to end. 6. Adding result will be confirmed by the Z-Wave controller’s message and the LED frame: - Green - successful (non-secure, S0, S2 non-authenticated), - Magenta - successful (Security S2 Authenticated), - Red – not successful. To add the device to the Z-Wave network using SmartStart: 1. Set the main controller in Security S2 Authenticated add mode (see the controller’s manual). 2. Scan the DSK QR code or input the underlined part of the DSK (label on the bottom of the box). 3. Power the device. 4. Wait for the adding process to start (up to few minutes), which is signaled with yellow LED blinking. 5. Adding result will be confirmed by the Z-Wave controller’s message and the LED frame: - Green - successful (non-secure, S0, S2 non-authenticated), - Magenta - successful (Security S2 Authenticated), - Red – not successful.

Supported / Controlled Meter Types

Supported Notification Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
