Product Recognition
Certification Number	ZC10-16055065
Name	Wall Switch
Short Description	Wall switch module for FUGA® installations.

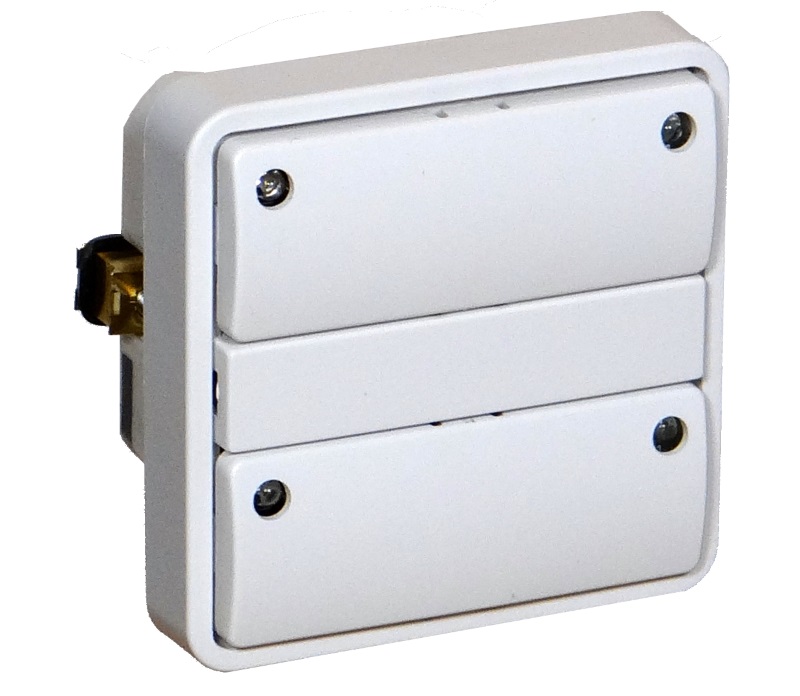

Long Description	ZHC5010 is a wall switch module with four buttons, four LEDs, a built-in relay switch and is designed to fit into standard Danish LK FUGA® wall boxes.
Brand	Z-Home Control
Product Identifier	ZHC5010
OEM Version	HW: 1 FW: 1.00
Hardware Platform	ZM5101
Z-Wave Version	6.61.00
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0234
Product Type ID	0x0003
Product ID	0x010A
User Icon	0x0702
Installer Icon	0x0702
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_BINARY_V2 Switch Binary V2 0x25 2 COMMAND_CLASS_SWITCH_TOGGLE_BINARY Switch Toggle Binary 0x28 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V4 Switch Multilevel V4 0x26 4 COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ZHC5010-Manual-EN-Rev11.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 5 5 0 Send Binary Toggle Switch Set when button #1 is used. 7 5 0 Send Basic Report (On/Off) when button #2 is used. 3 5 0 Sends Basic Set (On/Off) when button #1 is used. 4 5 0 Sends Binary Switch Set (On/Off) when button #1 is used. 8 5 0 Sends Basic Set (On/Off) when button #2 is used. 9 5 0 Sends Binary Switch Set (On/Off) when button #2 is used. 10 5 0 Send Binary Toggle Switch Set when button #2 is used. 11 5 0 Sends Multilevel Switch Set / Multilevel Switch Start Level Change / Multilevel Switch Stop Level Change when button #2 is used. 17 5 0 Send Basic Report (On/Off) when button #4 is used. 6 5 0 Sends Multilevel Switch Set / Multilevel Switch Start Level Change / Multilevel Switch Stop Level Change when button #1 is used. 1 1 0 Z-Wave Plus Lifeline 2 5 0 Send Basic Report (On/Off) when button #1 is used.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Upper paddle buttons mode. Configuration of Pair Mode for the upper two buttons (button #1 and #2). 0 1 0 0 0 From To Description 0 0 Separate mode (toggle mode). 1 1 In pair mode, left side sends on/up commands, right side sends off/down commands. 2 Lower paddle buttons mode. Configuration of Pair Mode for the lower two buttons (button #3 and #4). 0 1 0 0 0 From To Description 1 1 In pair mode, left side sends on/up commands, right side sends off/down commands. 0 0 Separate mode (toggle mode). 3 LED #1 mode. Configuration of the LED status indication. 0 1 0 0 1 From To Description 2 2 LED indicates the status of the corresponding button, with inverted indication. 3 3 LED indicates the status of corresponding paddle (in pair mode). 4 4 LED indicates the status of the corresponding paddle (in pair mode), with inverted indication. 5 5 LED indicates the status of the built-in relay. 6 6 LED indicates the status of the built-in relay, with inverted indication. 7 7 LED show a 5 seconds indication when the corresponding button is pressed. 0 0 LED indication is disabled (LED can be controlled by Indicator Command Class Set commands). 1 1 LED indicates the status of the corresponding button. 4 LED #2 mode. Configuration of the LED status indication. 0 1 0 0 1 From To Description 4 4 LED indicates the status of the corresponding paddle (in pair mode), with inverted indication. 5 5 LED indicates the status of the built-in relay. 6 6 LED indicates the status of the built-in relay, with inverted indication. 3 3 LED indicates the status of corresponding paddle (in pair mode). 7 7 LED show a 5 seconds indication when the corresponding button is pressed. 1 1 LED indicates the status of the corresponding button. 2 2 LED indicates the status of the corresponding button, with inverted indication. 0 0 LED indication is disabled (LED can be controlled by Indicator Command Class Set commands). 11 LED #1 off brightness level. Configure the percentage of light in the LED, when the LED is turned “off”. 0 1 0 0 0 From To Description 0 100 Specifies the brightness level of the LED when it is off. 5 LED #3 mode. Configuration of the LED status indication. 0 1 0 0 1 From To Description 0 0 LED indication is disabled (LED can be controlled by Indicator Command Class Set commands). 1 1 LED indicates the status of the corresponding button. 2 2 LED indicates the status of the corresponding button, with inverted indication. 3 3 LED indicates the status of corresponding paddle (in pair mode). 4 4 LED indicates the status of the corresponding paddle (in pair mode), with inverted indication. 5 5 LED indicates the status of the built-in relay. 6 6 LED indicates the status of the built-in relay, with inverted indication. 7 7 LED show a 5 seconds indication when the corresponding button is pressed. 6 LED #4 mode. Configuration of the LED status indication. 0 1 0 0 1 From To Description 0 0 LED indication is disabled (LED can be controlled by Indicator Command Class Set commands). 1 1 LED indicates the status of the corresponding button. 6 6 LED indicates the status of the built-in relay, with inverted indication. 5 5 LED indicates the status of the built-in relay. 7 7 LED show a 5 seconds indication when the corresponding button is pressed. 3 3 LED indicates the status of corresponding paddle (in pair mode). 2 2 LED indicates the status of the corresponding button, with inverted indication. 4 4 LED indicates the status of the corresponding paddle (in pair mode), with inverted indication. 23 Control of association groups for device 1 (button #1) Enable or disable if received commands are relayed to the nodes in the association groups. 0 1 0 0 1 From To Description 1 1 When commands are received by device 1, nodes in the association groups will be switched. 0 0 When commands are received by device 1, nodes in the association groups will not be switched, button activations will still send switch values. 24 Control of association groups for device 2 (button #2) Enable or disable if received commands are relayed to the nodes in the association groups. 0 1 0 0 1 From To Description 0 0 When commands are received by device 2, nodes in the association groups will not be switched, button activations will still send switch values. 1 1 When commands are received by device 2, nodes in the association groups will be switched. 25 Control of association groups for device 3 (button #3) Enable or disable if received commands are relayed to the nodes in the association groups. 0 1 0 0 1 From To Description 0 0 When commands are received by device 3, nodes in the association groups will not be switched, button activations will still send switch values. 1 1 When commands are received by device 3, nodes in the association groups will be switched. 7 LED #1 brightness level. Configure the percentage of light in the LED, when the LED is turned on. 0 1 0 0 50 From To Description 0 100 Specifies the brightness level of the LED when it is on. 8 LED #2 brightness level. Configure the percentage of light in the LED, when the LED is turned on. 0 1 0 0 50 From To Description 0 100 Specifies the brightness level of the LED when it is on. 9 LED #3 brightness level. Configure the percentage of light in the LED, when the LED is turned on. 0 1 0 0 50 From To Description 0 100 Specifies the brightness level of the LED when it is on. 10 LED #4 brightness level. Configure the percentage of light in the LED, when the LED is turned on. 0 1 0 0 50 From To Description 0 100 Specifies the brightness level of the LED when it is on. 17 Scene notification offset. Configure the scene sequence numbers that will be transmitted by Central Scene notifications. 0 1 0 0 1 From To Description 1 127 Button #1 will send scene [value], button #2 will send scene [value] + 1, button #3 will send scene [value] + 2, button #4 will send scene [value] + 3. 0 0 Scene notifications are turned off.
Texts	ID Description Value 2 Exclusion Pushing the upper left button 3 times, (triple click) will activate Exclusion Mode on the device. It is also possible to activate Exclusion Mode by triple clicking the switch in the middle of the module (normally covered by the middle plastic cover, this can be removed by means of a little screwdriver). 5 Factory Reset ZHC5010 can be factory reset by pressing the small button in the middle of the module (normally covered by small plastic cover) for at least 10 seconds. Please use this procedure only when the network primary controller is missing or otherwise inoperable. 1 Inclusion Pushing the upper left button 3 times, (triple click) will activate Inclusion Mode on the device. It is also possible to activate Inclusion Mode by triple clicking the switch in the middle of the module (normally covered by the middle plastic cover, this can be removed by means of a little screwdriver).
Supports NWI	Yes
Supports Explorer Frames	Yes
