Product Recognition | |
|---|
Certification Number | ZC10-17015380 |
|---|
Name | WallMote Quad |
|---|
Short Description | Aeotec WallMote Quad is an intelligent Z-Wave remote controller that is mounted on a wall |
|---|

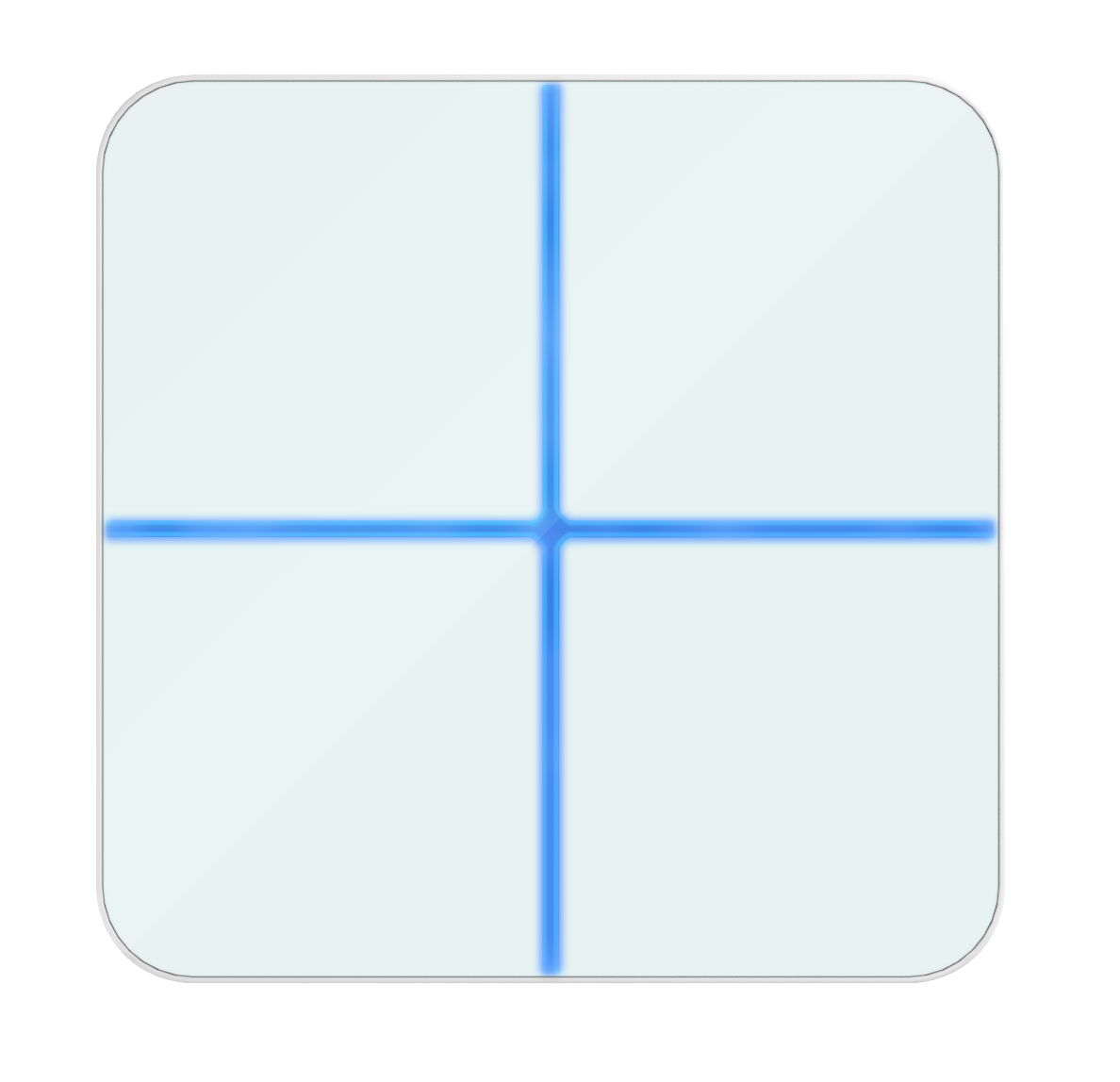

Long Description | Aeotec WallMote Quad is an intelligent Z-Wave remote controller that mounted on a wall. It has 4 touch buttons that you can easily control the Z-Wave devices in your home network via touching, long pressing or sliding the button areas.
Its surface has a RGB LED to indicate the button actions also accompanied by touch beep and vibration.
The WallMote Quad is also a security Z-Wave device and supports Over The Air (OTA) feature for the products firmware upgrade. |
|---|
Brand | Aeotec |
|---|
Product Identifier | ZW130-A |
|---|
OEM Version | HW: 130 FW: 2.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.61.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Wall Controller |
|---|
Role Type | ROLE_TYPE_SLAVE_PORTABLE |
|---|
Manufacturer ID | 0x0086 |
|---|
Product Type ID | 0x0102 |
|---|
Product ID | 0x0082 |
|---|
User Icon | 0x1C04 |
|---|
Installer Icon | 0x1C04 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Lighting Accessories |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_CENTRAL_SCENE_V2 | Central Scene V2 | 0x5B | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SWITCH_BINARY_V2 | Switch Binary V2 | 0x25 | 2 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Z-Wave Scene Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline.
When touching the Button 1 to 4, the Central Scene Notificcation command will be sent to the associated node (1) in Association group 1. | 5 | 5 | 0 | When touching the Button 2, the Multilevel Switch Set command will be sent to the associated nodes in Association group 5. | 6 | 5 | 0 | When touching the Button 3, the Basic Set command will be sent to the associated nodes in Association group 6. | 7 | 5 | 0 | When touching the Button 3, the Multilevel Switch Set command will be sent to the associated nodes in Association group 7. | 8 | 5 | 0 | When touching the Button 4, the Basic Set command will be sent to the associated nodes in Association group 8. | 9 | 5 | 0 | When touching the Button 4, the Multilevel Switch Set command will be sent to the associated nodes in Association group 9. | 2 | 5 | 0 | When touching the Button 1, the Basic Set command will be sent to the associated nodes in Association group 2. | 3 | 5 | 0 | When touching the Button 1, the Multilevel Switch Set command will be sent to the associated nodes in Association group 3. | 4 | 5 | 0 | When touching the Button 2, the Basic Set command will be sent to the associated nodes in Association group 4. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
255 | Reset the WallMote Quad | Reset the WallMote Quad to factory default. | 0 | 4 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Reset all configuration parameters to factory default setting | 1431655765 | 1431655765 | Reset to factory default setting and removed from the z-wave network |
| 1 | Enable/disable the touch sound. | Enable/disable the touch sound. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | Enable | 0 | 0 | Disable |
| 2 | Enable/disable the touch vibration. | Enable/disable the touch vibration. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Disable | 1 | 1 | Enable |
| 3 | Enable/disable the function of button slide. | Enable/disable the function of button slide. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Disable | 1 | 1 | Enable |
| 4 | To configure which report will be sent when pressing the buttons. | To set which notification would be sent to the associated devices (Group 1) when pressing the buttons. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | Send Central Scene Command Notification | 3 | 3 | Send Central Scene Command Notification and Configuration report |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. | 6 | Additional Special Features | Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. | 1 | Inclusion | Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. | 2 | Exclusion | Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
