Product Recognition
Certification Number	ZC10-17025439

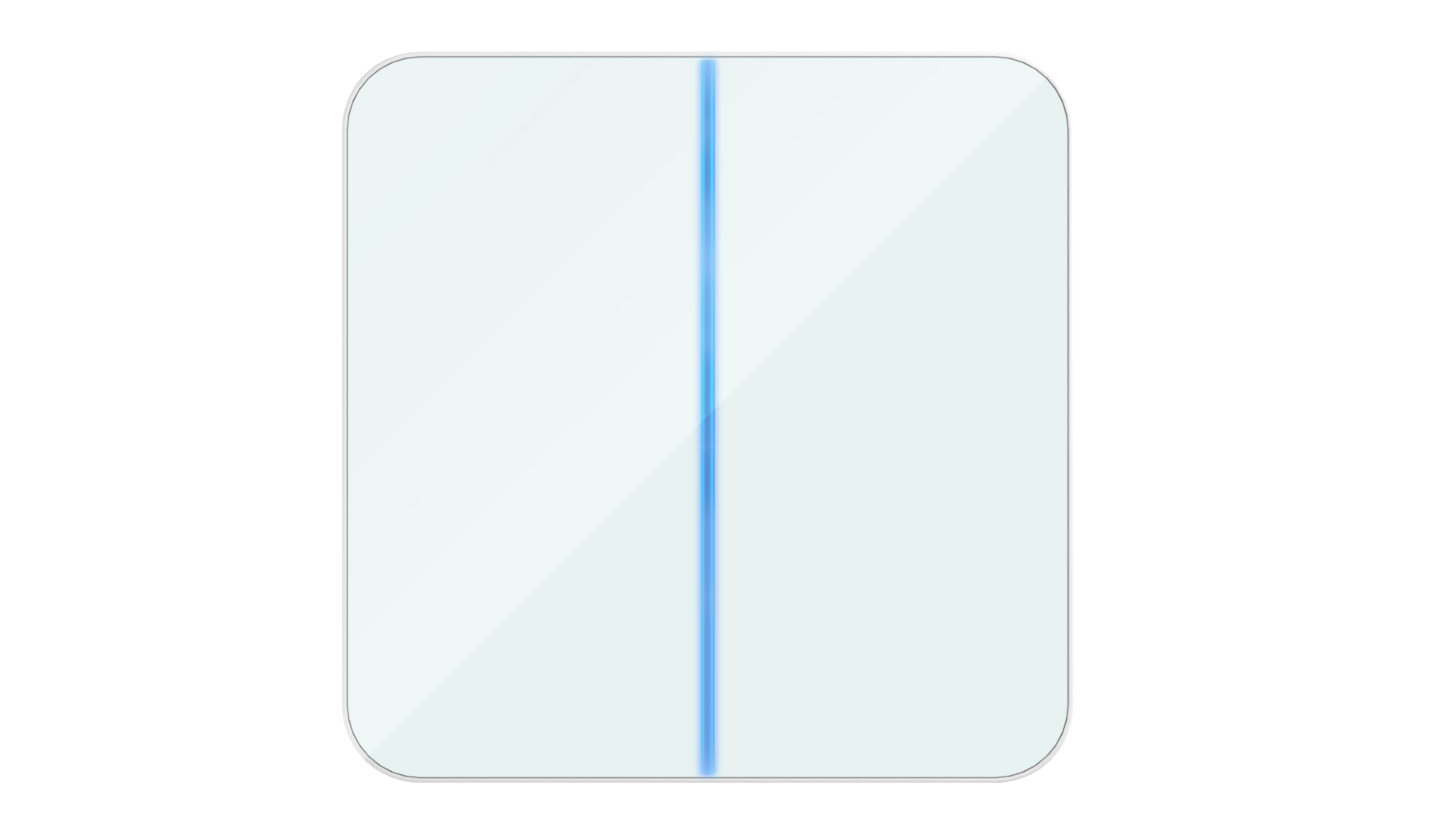

Name	WallMote
Short Description	Aeotec WallMote is an intelligent Z-Wave remote controller that is mounted on a wall
Long Description	Aeotec WallMote is an intelligent Z-Wave remote controller that mounted on a wall. It has 2 touch buttons that you can easily control the Z-Wave devices in your home network via touching, long pressing or sliding the button areas. Its surface has a RGB LED to indicate the button actions also accompanied by touch beep and vibration. The WallMote Quad is also a security Z-Wave device and supports Over The Air (OTA) feature for the products firmware upgrade.
Brand	Aeotec
Product Identifier	ZW129-A
OEM Version	HW: 129 FW: 1.05
Hardware Platform	ZM5101
Z-Wave Version	6.61.00
Library Type	SLAVE_ENHANCED_232
Device Type	Wall Controller
Role Type	ROLE_TYPE_SLAVE_PORTABLE
Manufacturer ID	0x0086
Product Type ID	0x0102
Product ID	0x0081
User Icon	0x1C02
Installer Icon	0x1C02
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Handheld Controller, Lighting Accessories
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_CENTRAL_SCENE_V2 Central Scene V2 0x5B 2 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_BINARY_V2 Switch Binary V2 0x25 2 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V4 Switch Multilevel V4 0x26 4
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Aeon Labs WallMote manual.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF Z-Wave Scene Type Value Central Scene
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 3 5 0 When touching the Button 1, the Multilevel Switch Set command will be sent to the associated nodes in Association group 3. 4 5 0 When touching the Button 2, the Basic Set command will be sent to the associated nodes in Association group 4. 1 1 0 Z-Wave Plus Lifeline. When touching the Button 1 to 2, the Central Scene Notificcation command will be sent to the associated node (1) in Association group 1. 2 5 0 When touching the Button 1, the Basic Set command will be sent to the associated nodes in Association group 2. 5 5 0 When touching the Button 2, the Multilevel Switch Set command will be sent to the associated nodes in Association group 5.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Enable/disable the touch sound. Enable/disable the touch sound. 0 1 0 0 1 From To Description 1 1 Enable 0 0 Disable 2 Enable/disable the touch vibration. Enable/disable the touch vibration. 0 1 0 0 1 From To Description 0 0 Disable 1 1 Enable 3 Enable/disable the function of button slide. Enable/disable the function of button slide. 0 1 0 0 1 From To Description 0 0 Disable 1 1 Enable 4 To configure which report will be sent when pressing the buttons. To set which notification would be sent to the associated devices (Group 1) when pressing the buttons. 0 1 0 0 1 From To Description 1 1 Send Central Scene Command Notification 3 3 Send Central Scene Command Notification and Configuration report 255 Reset the WallMote Quad Reset the WallMote to factory default. 0 4 0 0 0 From To Description 0 0 Reset all configuration parameters to factory default setting 1431655765 1431655765 Reset to factory default setting and removed from the z-wave network
Texts	ID Description Value 24 Controller Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing. 23 Controller Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. 5 Factory Reset Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
Supports NWI	Yes
Supports Explorer Frames	Yes
