Certification Number | ZC10-18076181 |
|---|

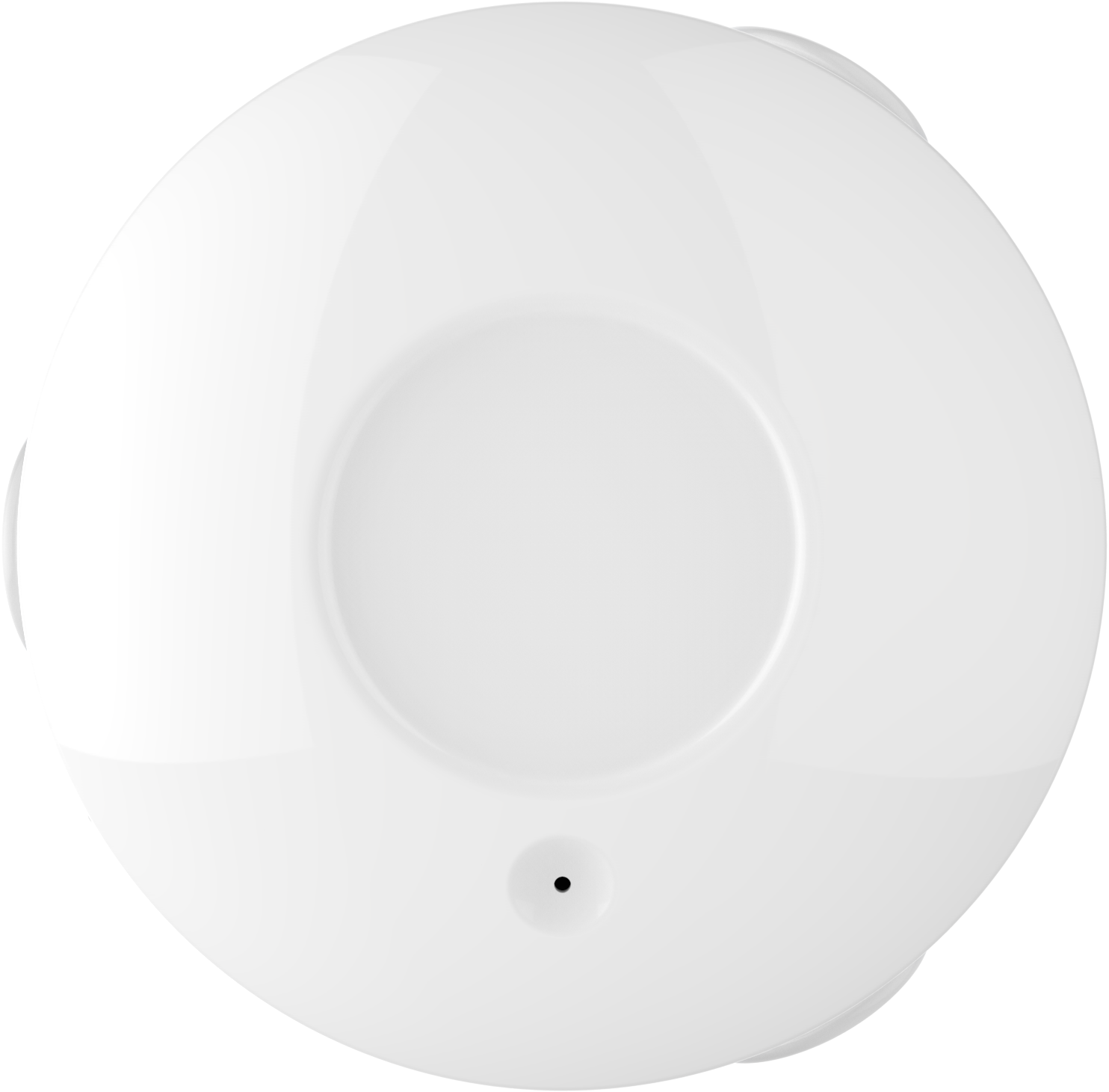

Name | Water Leakage Detector |
|---|
Short Description | Water Leakage Detector is an intelligent security equipment that can transmit the Z-Wave network which has particular frequency. Different countries or areas, the radio frequency of Z-Wave is different. |
|---|
Long Description | In the Z-Wave network communications, water sensor can work with any Z-Wave main controller. In the Z-Wave network communications, water sensor can send messages to the Z-Wave main controller, and realize association with other devices through the Z-Wave network. In the communication with the Z-Wave main controller, the water sensor can send messages to the Z-Wave main controller, but it can not receive messages from the Z-Wave main controller. When the water sensor is triggered, the LED light keeps on and the buzzer will make sound. The water sensor sends messages to the Z-Wave main controller at the same time, the Z-Wave main controller will display the current status of water sensor. Water sensor is battery powered, is small and can be installed easily. |
|---|
Brand | Coolcam |
|---|
Product Identifier | NAS-WS02ZU |
|---|
OEM Version | HW: 32 FW: 2.133 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.00 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0258 |
|---|
Product Type ID | 0x0200 |
|---|
Product ID | 0x1025 |
|---|
User Icon | 0x0C05 |
|---|
Installer Icon | 0x0C05 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Communications Connections | | Controller Supports Multiple Networks | | Controller Supports Multiple Z-Wave Interfaces | | Gateway Has Preferred Partners | | Sensors | | Battery Quantity | | Supported Notification Types | Value |
|---|
Water Alarm | Water Valve |
| Firmware Updatable | Value |
|---|
Updatable by Manufacturer Representative |
| Battery Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Group 1 is lifeline group; all nodes which associated in this group will receive the messages sent by device through lifeline.
Command Class:
COMMAND_CLASS_NOTIFICATION
COMMAND_CLASS_SENSOR_BINARY
COMMAND_CLASS_BATTERY
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Event:
NOTIFICATION_REPORT
SENSOR_BINARY_REPORT
BATTERY_REPORT
DEVICE_RESET_LOCALLY_NOTIFICATION
| 2 | 5 | 0 | Group 2 is controlling group, all nodes associated in this group will be controlled through BASIC_SET command by the device when device detects a water leakage event.
Command Class:
COMMAND_CLASS_BASIC
Event:
BASIC_SET |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Alarm Interval Time | This configuration defines beep on /off interval time when water leakage is detected. | 0 | 1 | 0 | 0 | 60 | From | To | Description |
|---|
5 | 120 | Second |
| 3 | First Alarm On Time Duration | This configuration defines beep on duration first time when water leakage is detected. | 0 | 1 | 0 | 0 | 60 | From | To | Description |
|---|
10 | 120 | Second |
| 9 | Sensor Binary Report Enable | This parameter sets to ‘1’ will enable SENSOR_BINARY_REPORT when device detects a water leakage event. This is for Z-Wave protocol backward compatibility. | 0 | 1 | 0 | 0 | 0 | | 4 | Alarm on Time Duration | This configuration defines beep on duration after fist beep on when water leakage is detected. | 0 | 1 | 0 | 0 | 5 | From | To | Description |
|---|
5 | 120 | Second |
| 5 | Water Leakage Detected Disable | This configuration sets to ‘0’ will disable the water leakage detected function. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | Available Settings |
| 11 | Battery Report Interval | This parameter is defined the interval time for battery report. This value is larger, the battery life is longer. Unit: Minute. | 0 | 2 | 0 | 0 | 480 | From | To | Description |
|---|
0 | 1 | Available Settings | 1 | 1080 | Minute |
| 7 | Led Light Alarm Disable | This configuration sets to ‘0’ will disable the Led indicating when device detects a water leakage event. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | Available Settings |
| 8 | Basic Set Level | This configuration sets the level for device sending BASIC_SET to nodes that associated in group 2 when device detects a water leakage event. [0] – Off, BASIC_SET = 0x00, all nodes associated in group 2 will be off. [1 … 99] – On. BASIC_SET = [Setting Value]. [100] – On, BASIC_SET = 0xFF. | 0 | 1 | 0 | 0 | 100 | From | To | Description |
|---|
0 | 100 | Available Settings |
| 10 | Battery Report Periodically Enable | This parameter sets to ‘1’ will enable reporting battery periodically. The period time is defined by configuration parameter 11. If this value set to ‘0’, battery report will be executed in two cases listed as below. 1, Device is power up. 2, Battery life is falling 100, 16 and 0 | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | Available Settings |
| 1 | Alarm Duration Time | This configuration can be used to adjust the time for beep and LED turned on when water leakage is detected. If this configuration is set to ‘0’, the beep and LED will be turn on always until water leakage is not detected. | 0 | 1 | 0 | 0 | 120 | From | To | Description |
|---|
0 | 120 | Minute |
| 6 | Beep Alarm Disable | This configuration sets to ‘0’ will disable the beep alarm on when device detects water leakage event. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | Available Settings |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1,Power up the device.
2, Set Z-Wave™ Controller into inclusion
mode
3, Press the button 3 times within 1s to
enter inclusion mode.
4,The device will be recognized and
automatically included into Z-Wave™
Network. | 2 | Exclusion | 1, Power up the device.
2,Set Z-Wave™ Controller into exclusion
mode
3, Press the button 3 times within 1s to
enter exclusion mode | 4 | Device Wake-Up | Press the button briefly,Led will blink once. | 6 | Additional Special Features | Product Test Mode
1,Press and hold the button.
2,Power on the device, device will enter
factory product test mode | 5 | Factory Reset | 1,Power up the device.
2, Press and hold the button for 10s until
led light is on, then release the button.
Please use this procedure only when the network primary controller is missing or otherwise inoperable |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Water Alarm | (Refer to parameters): State idle | Water Valve | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Water flow |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
