Certification Number	ZC10-17055616

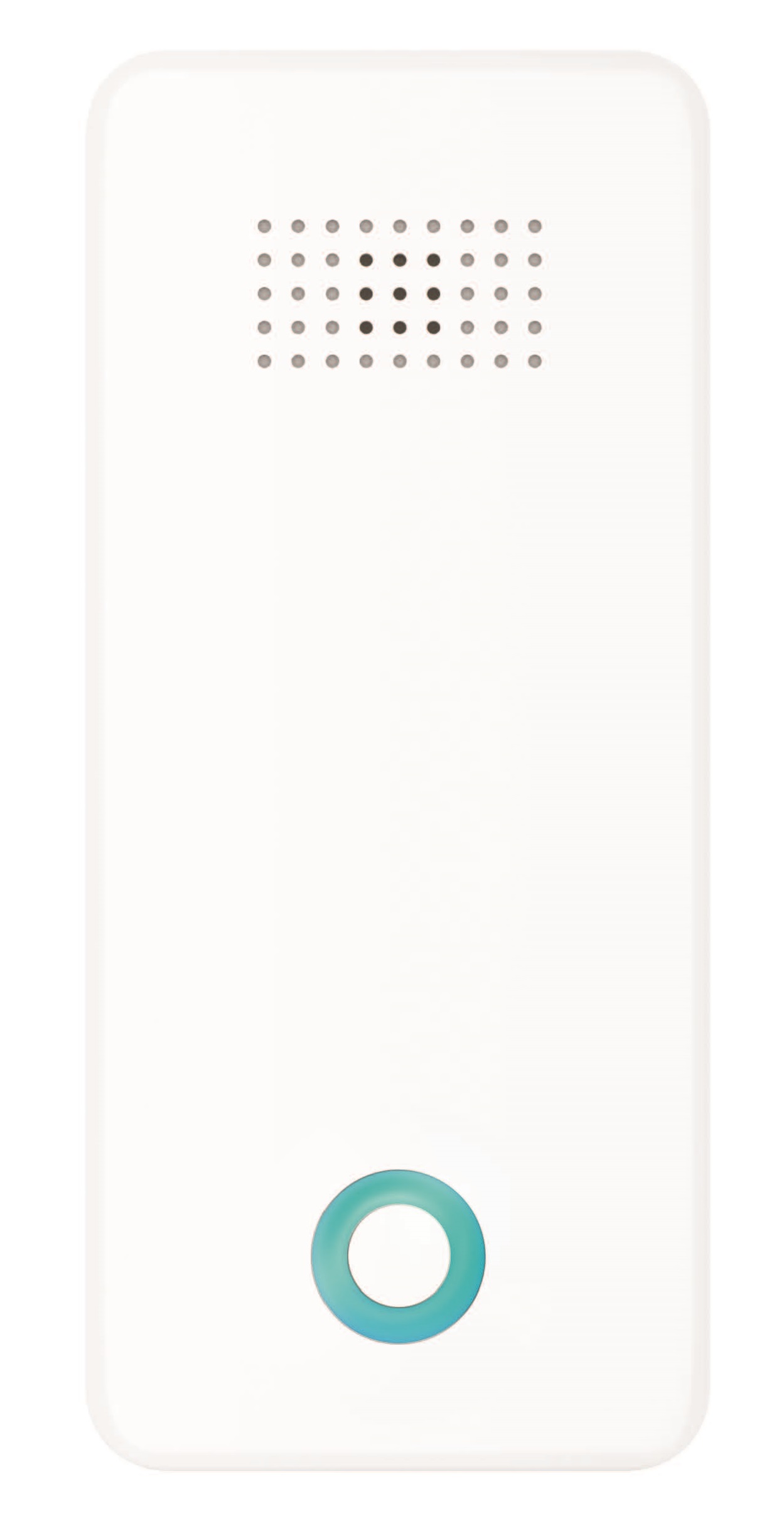

Name	Water Sensor 6
Short Description	Aeon Labs Water Sensor 6 is a Z-Wave water sensor, which can detect whether there is water leak in some places of your home.
Long Description	Aeotec by Aeon Labs Water Sensor 6 brings intelligence to a new level, one that is suited to both safety and convenience. It contains 4 sensing points, which would be more accurately to detect the presence and absence of water or detect whether there is water leak in some places of your home. The Water Sensor 6 has an inbuilt buzzer that can play alarm sounds to let you know when the water is detected. The Water Sensor 6 is also a security Z-Wave device that supports Over The Air (OTA) for firmware updates.
Brand	Aeotec
Product Identifier	ZW122-B
OEM Version	HW: 122 FW: 1.01
Hardware Platform	ZM5101
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0086
Product Type ID	0x0202
Product ID	0x007A
User Icon	0x0C07
Installer Icon	0x0C07
Frequency Plans	ANZ: 919.80MHz, 921.40MHz
Categories	Sensors
Countries / Regions	Australia
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Aeon Labs Water Sensor 6 manual.pdf
Features	Feature Values Battery Type Value CR123A Firmware Updatable Value Updatable by Consumer by RF IP (Ingress Protection) Rated Sensors Value Air Temperature Water Flow Battery Quantity Value 1 Supported Notification Types Value Heat Alarm Water Alarm Home Security
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Lifeline group. 1. The Battery Report or Multilevel Sensor Report (Configurable) can be sent to the associated nodes in group 1. 2. When the water leak is detected, the Notification Report will be send to the associated nodes in group 1. 3. When the Water Sensor is reset, the Device Reset Locally CC will be send to the associated nodes in group 1. 2 5 0 Send the configuration parameter 0x88 to the associated nodes in group 2. 3 5 0 Send Basic Set (configured by parameter 0x58) to the associated nodes in Group 3 when the Sensor probe 1 is triggered. 4 5 0 Send Basic Set (configured by parameter 0x59) to the associated nodes in Group 4 when the Sensor probe 2 is triggered.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 48 Enable/disable the sensor report Enable/disable the sensor report 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable. 49 Set the upper limit value (overheat). Set the upper limit value (overheat). 0 4 0 0 68157696 From To Description 0 0 Celsius unit 1 1 Fahrenheit unit 65536 2147483647 Temperature value 64 Set the default unit of the automatic temperature report in parameter 101-103. Set the default unit of the automatic temperature report in parameter 101-103. 0 1 0 0 1 From To Description 1 1 The unit is Fahrenheit. 0 0 The unit is Celsius. 84 Get the state of tilt sensor Get the state of tilt sensor. Note: this is a Get-only parameter. 0 1 0 0 0 From To Description 0 0 The Water Sensor main unit is in horizontal direction. 1 1 The Water Sensor main unit is in vertical direction. 86 Enable/ disable the buzzer. Enable/ disable the buzzer. 0 1 0 0 1 From To Description 1 1 Enable 0 0 Disable 88 To set which value of the Basic Set will be sent to the associated nodes in association Group 3 when the Sensor probe 1 is triggered. To set which value of the Basic Set will be sent to the associated nodes in association Group 3 when the Sensor probe 1 is triggered. 0 1 0 0 0 From To Description 0 0 Send nothing 1 1 Presence of water, send Basic Set 0xFF, absence of water, send Basic Set 0x00. 2 2 Presence of water, send Basic Set 0x00, absence of water, send Basic Set 0xFF. 89 To set which value of the Basic Set will be sent to the associated nodes in association Group 4 when the Sensor probe 2 is triggered. To set which value of the Basic Set will be sent to the associated nodes in association Group 4 when the Sensor probe 2 is triggered. 0 1 0 0 0 From To Description 2 2 Presence of water, send Basic Set 0x00, absence of water, send Basic Set 0xFF. 0 0 Send nothing. 1 1 Presence of water, send Basic Set 0xFF, absence of water, send Basic Set = 0x00. 94 To set which power source level is reported via the Battery CC. To set which power source level is reported via the Battery CC. 0 1 0 0 0 From To Description 0 0 report the USB power level. 1 1 report the CR123A battery level. 101 To set what unsolicited report would be sent to the Lifeline group. To set what unsolicited report would be sent to the Lifeline group. 0 1 0 0 3 From To Description 3 3 Battery Report and Multilevel sensor report for temperature are enabled. 1 1 Battery Report is enabled. 0 0 Send Nothing 2 2 Multilevel sensor report for temperature is enabled. 111 To set the interval time of sending reports in Report group 1 To set the interval time of sending reports in Report group 1. Note: 1. The unit of interval time is second if USB power. 2. If battery power, the minimum interval time is equal to Wake Up interval set by the Wake Up CC. 0 4 0 0 3600 From To Description 5 2678400 Available rang is 5 to 2678400 seconds. 135 To set which sensor report can be sent when the water leak event is triggered and if the receiving device is a non-multichannel device. To set which sensor report can be sent when the water leak event is triggered and if the receiving device is a non-multichannel device. 0 1 0 0 1 From To Description 0 0 Send nothing 3 3 Send notification report to association group 1 and Send configuration 0x88 report to association group 2. 1 1 Send notification report to association group 1. 2 2 Send configuration 0x88 report to association group 2. 136 When the parameter 0x87 is set to 2 or 3, it can get the sensor probes’ status through this configuration value. When the parameter 0x87 is set to 2 or 3, it can get the sensor probes’ status through this configuration value. Note: This parameter is a Get- only parameter. 0 1 0 0 0 From To Description 0 0 absence of water is triggered by probe 1. 1 1 presence of water is triggered by probe 1. 2 2 presence of water is triggered by probe 2. 10 Set the alarm time for the Buzzer when the sensor is triggered. Set the alarm time for the Buzzer when the sensor is triggered. 0 4 0 0 101968650 From To Description 1 255 Repeated cycle of Buzzer alarm. 256 65535 the time of Buzzer keeping ON state (MSB) 65536 2147483647 The time of Buzzer keeping OFF state 50 Set the lower limit value (under heat) Set the lower limit value (under heat) 0 4 0 0 20971776 From To Description 0 0 Celsius unit 1 1 Fahrenheit unit 65536 2147483647 Temperature value 255 Reset to factory defaults. Reset to factory defaults. 0 4 0 0 0 From To Description 1431655765 1431655765 Reset the product to factory defaults. 1 1 Reset all configuration parameters to factory defaults. 252 Enable/disable all configuration parameters to be locked Enable/disable all configuration parameters to be locked. 0 1 0 0 0 From To Description 1 1 Enable. 0 0 Disable 2 Enable/Disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor. Enable/Disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor. 0 1 0 0 0 From To Description 1 1 Enable. 0 0 Disable 9 Report the current power mode and the product state for battery power mode Report the current power mode and the product state for battery power mode. Note: this parameter cannot be used as Set usage. 0 2 0 0 0 From To Description 257 257 Keep awake for 10 minutes for battery power mode. 256 256 Keep sleep state for Battery power mode 0 0 USB power mode 57 Set the recover limit value of temperature sensor. Note: 1. When the current measurement <= (Upper limit – Recover limit), the upper limit report is enabled and then it would send out a sensor report when the next measurement is more than the upper limit. After that the upper limit report would be disabled again until the measurement = (Lower limit + Recover limit), the lower limit report is enabled and then it would send out a sensor report when the next measurement is less than the lower limit. After that the lower limit report would be disabled again until the measurement >= (Lower limit + Recover limit). 3. High byte is the recover limit value. Low byte is the unit (0x01=Celsius, 0x02=Fahrenheit). 0 2 0 0 5121 From To Description 10 255 Available rang is 1.0℉ to 25.5℉ 201 Temperature sensor calibration Temperature sensor calibration. Note: 1. High byte is the calibration value. Low byte is the unit (0x00=Celsius, 0x01=Fahrenheit) 2. The calibration value (high byte) contains one decimal point. E.g. if the value is set to 20 (0x1400), the calibration value is 2.0 ℃ (EU/AU version) or if the value is set to 20 (0x1401), the calibration value is 2.0 ℉(US version) 3. The calibration value (high byte) = standard value - measure value. E.g. If measure value =25.3℃ and the standard value = 23.2℃, so the calibration value= 23.2℃ - 25.3℃= -2.1℃ (0xEB). If the measure value =30.1℃ and the standard value = 33.2℃, so the calibration value= 33.2℃ - 30.1℃=3.1℃ (0x1F). 0 2 0 0 1 From To Description -128 127 Available rang is -12.8℃ to 12.7℃.
Texts	ID Description Value 5 Factory Reset Press and hold the Action Button that you can find on the product for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 4 Device Wake-Up Pressing the Action Button once will trigger sending the Wake up notification command. If press and hold the Z-Wave button for 3 seconds, the Water Sensor will wake up for 10 minutes. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action Button that you can find on the product. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action Button that you can find on the product.
Supported Notification Types	Notification Type Event / State Heat Alarm (Refer to parameters): State idle Water Alarm (Refer to parameters): State idle Home Security (Refer to parameters): State idle
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature Water flow
Supports NWI	Yes
Supports Explorer Frames	Yes
