Product Recognition
Certification Number	ZC10-16095223

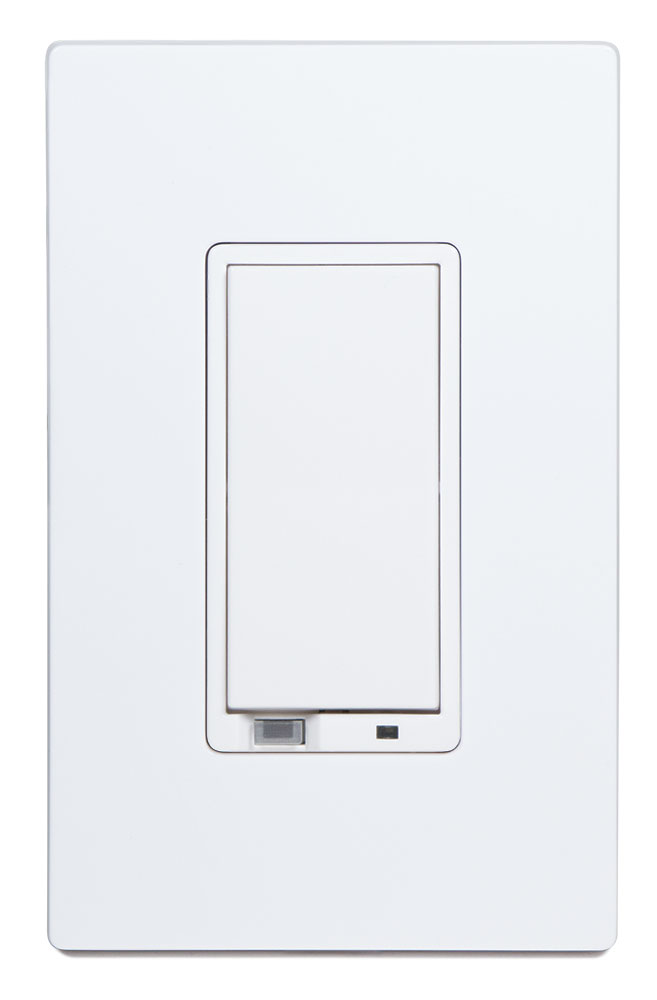

Name	WD500Z5-1
Short Description	An in-wall lighting dimmer switch for LED, halogen and incandescent lights. Controls the connected load and can run up to 6 scenes using the Central Scene Command Class.
Long Description	The WD500Z5-1 is an in-wall lighting dimmer switch designed to operate with LED, halogen and incandescent lights. Not only can this switch control the connected load, with Central Scene support it can run up to 6 scenes created by the Hub it is the most versatile Home Automation light switch available. With OTA upgrading supported, this light switch may be the last one ever installed in a home.
Brand	GoControl
Product Identifier	WD500Z5-1
OEM Version	HW: 1 FW: 1.13
Hardware Platform	ZM5202
Z-Wave Version	6.51.07
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x014F
Product Type ID	0x5744
Product ID	0x3530
User Icon	0x0600
Installer Icon	0x0600
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices, Lighting Accessories
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V4 Switch Multilevel V4 0x26 4
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 10008092X18 WD500Z5-1_WD1000Z5-1 Instructions.pdf
Features	Feature Values Color Value White Electric Load Type Value Incandescent Dimmable LED Firmware Updatable Value Updatable by Consumer by RF Switch Load Capacity Watts Value 500 Neutral Wire Required Switch Type Value Decorator Paddle Push with Indicator
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 Night Light Control the operation of the LED function, 0 1 0 0 0 From To Description 0 4 0 - LED OFF when the load is on, and ON when the load is off. 1 - LED ON when the load is on, and OFF when the load is off. 2 - LED is always on. 3 - LED is always off. 4 - LED blinks during RF transmissions from or to the device. 4 Invert Switch To change the top of the switch to OFF and the bottom of the switch ON. 0 1 0 0 0 From To Description 0 1 0 - Top of switch is ON, bottom of switch is OFF. 1 - Bottom of switch is ON, top of switch is OFF 5 Start Level Dim Command The Start Level sent in a Dim command can be ignored or not. Typically the dim level should start from the current level and dim from there instead of suddenly changing to the Start Level and then dimming. 0 1 0 0 1 From To Description 0 1 0 - Use the Start Level in the Dim Command. 1 - Ignore the Start Level in the Dim Command 7 # - Dim Remote On/Off Steps This value indicates how many levels the dimmer will change a remote dimmable device each time the Dim Timer expires. 0 1 0 0 3 From To Description 1 99 Dim Remote On/Off Steps 8 Dim Remote On/Off Timer The Dim Timer sets how fast the dim steps happen in a remote dimmable device 0 1 0 0 10 From To Description 1 255 # - Dim Remote On/Off Time in mS 9 Dim Local On/Off Step This value indicates how many levels the dimmer will change the local dimmable device each time the Dim Timer expires. 0 1 0 0 10 From To Description 1 255 Dim Remote On/Off Steps 10 Dim Local On/Off Timer The Dim Timer sets how fast the dim steps happen in a local dimmable device 0 1 0 0 10 From To Description 1 255 # - Dim Remote On/Off Time in mS 11 Dim ALL On/Off Step This value indicates how many levels the dimmer will change in all devices when an ALL ON or ALL OFF command is transmitted 0 1 0 0 10 From To Description 1 99 Dim Remote On/Off Steps
Texts	ID Description Value 2 Exclusion Removing from a Network: 1. Set the Controller into Removal Mode and follow its instruction to delete the GoControl Dimmer from the Controller. 2. Remove the switch by tapping the paddle 2 times. The LED will begin blinking slowly for 10 seconds indicating that it has been removed. 3. You should see an indication on your Controller that the “device was removed” from the network. 5 Factory Reset To Reset Unit (If Required): Use only in the event that your primary Controller is lost or otherwise inoperable, to reset the GoControl Dimmer and clear all network information, follow these steps: 1. Tap the top of the switch five (5) times. 2. Press and hold the bottom of the switch for 15 seconds. The LED will increasingly blink faster to indicate that a Reset is taking place. 1 Inclusion Adding to a Network: 1. With your Controller in Discovery or Add Mode, tap the switch. The LED will blink slowly when in ADD Mode. 2. You should see an indication on your Controller that the “device was added” to the network and the LED will stop blinking. 3. The device will appear in the list of Switches. It should display as a switch.
Supports NWI	Yes
Supports Explorer Frames	Yes
