Certification Number	ZC10-15115003
Name	WDS

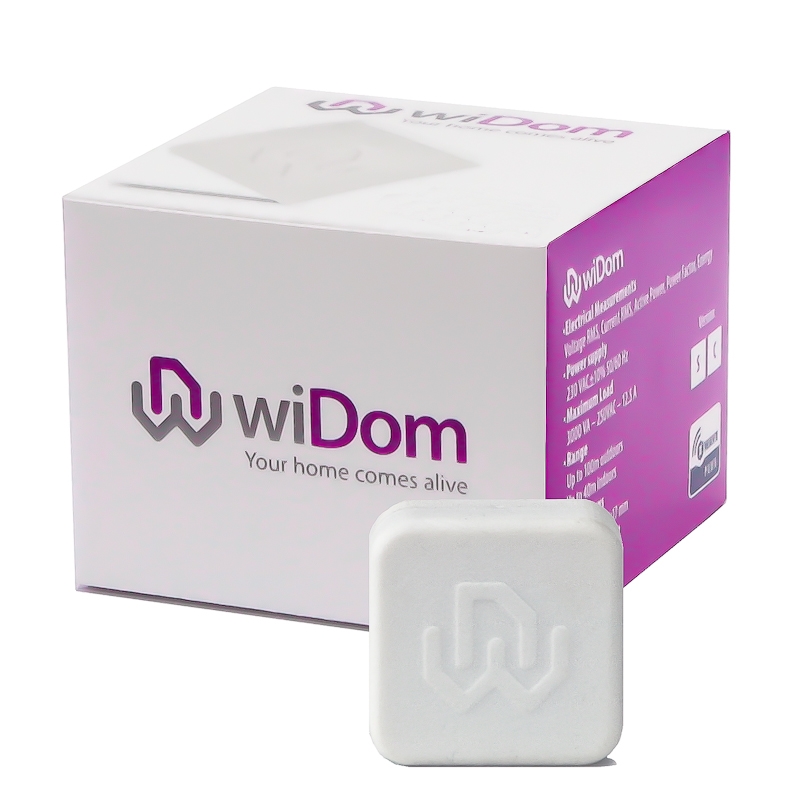

Short Description	Universal Double Switch is the ON/OFF smallest control device in the world designed to independently control two separate loads, suited for use as both a local and remote switch. Similarly to the other WiDom “in wall” devices, it can be fully integrated into pre-existing systems and configured to associate configurable behaviours to a specific number of clicks, in full integration with the Z-Wave home automation ecosystem.
Long Description	Universal Double Switch is the ON/OFF smallest control device in the world designed to independently control two separate loads, suited for use as both a local and remote switch. Similarly to the other WiDom “in wall” devices, it can be fully integrated into pre-existing systems and configured to associate configurable behaviours to a specific number of clicks, in full integration with the Z-Wave home automation ecosystem. Each of its two channels features an integrated consumption measurement device. The Universal Double Switch also boasts the lowest energy consumption on the market. At the same time, it is completely configurable so that it can adapt to the most varied needs while also being ready to be used without needing additional configurations in order to operate. Thanks to the framework developed by WiDom, the various types of “events” on the “External Switch” can be recognised and associated to actions to be performed on the device, on any associated devices, on all devices on the network.
Brand	Widom
Product Identifier	0504
OEM Version	HW: 1 FW: 1.31
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Manufacturer ID	0x0149
Product Type ID	0x1214
Product ID	0x0504
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Widom Double Relay_EN.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 8 0 Z-Wave Plus Lifeline 2 8 0 On/Off control (Switch 1) 3 5 0 Dimming control (Switch 1) 4 8 0 On/Off control (Switch 2) 5 8 0 Dimming control (Switch 2)
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Outputs status upon receipt of 1 click on its command Defines the status of the output O1/O2 when the switch connected to I1/I2 receives 1 Click. 0 1 0 0 1 From To Description 2 2 ON 3 3 OFF 4 4 IGNORE 1 1 TOGGLE 2 Outputs status upon receipt of 2 clicks on its command Defines the status of the output O1/O2 when the switch connected to I1/I2 receives 2 Click. 0 1 0 0 1 From To Description 1 1 TOGLE 2 2 ON 3 3 OFF 4 4 IGNORE 3 Type of outputs Defines if the outputs are controlled individually, as a traditional device with two channels, or if its behaviour simulates a single pole double throw relay. 0 1 0 0 0 From To Description 0 0 Channel 1 and Channel 2 are controlled individually 1 127 The two channels are in opposite status. If the Channel 1 is close the Channel 2 is open, if the Channel 1 is open the Channel 2 is close. The value of the parameter defines the closing delay of the relay in tenth of seconds 4 Number of clicks that activate the control of the associated devices Defines the number of clicks on the Switch 1 or Switch 2 that enable the control of the correspondent associated devices. 0 1 0 0 0 From To Description 1 1 Associated devices are controlled by 1 Click on the correspondent external switch 2 2 Associated devices are controlled by 2 Clicks on the correspondent external switch 5 Level used to control the devices associated to group 2 and 3 Defines how to control the devices associated to group 2 and 3. 0 1 0 0 100 From To Description -1 -1 The associated devices are switched ON 1 99 The associated devices (dimmer, roller shutters) are set to the indicated level (only for devices associated to group 3) 100 100 If the Relay 1 is ON/OFF, the associated devices are ON/OFF 101 101 If the Relay 1 is ON the associated devices are ON; if it is OFF no action is taken on the associated devices 102 102 If the Relay 1 is OFF the associated devices are OFF; if it is ON no action is taken on the associated devices 103 103 If the Relay 1 is ON the associated devices are OFF; if it is OFF no action is taken on the associated devices 104 104 If the Relay 1 is OFF the associated devices are ON; if it is ON no action is taken on the associated devices 105 105 If the Relay 1 is ON/OFF, the associated devices are OFF/ON 106 106 No action is taken on the associated devices 0 0 The associated devices are switched OFF 6 Level used to control the devices associated to group 4 and 5 Defines how to control the devices associated to group 4 and 5. 0 1 0 0 100 From To Description 1 99 The associated devices (dimmer, roller shutters) are set to the indicated level (only for devices associated to group 5) 100 100 If the Relay 2 is ON/OFF, the associated devices are ON/OFF 101 101 If the Relay 2 is ON the associated devices are ON; if it is OFF no action is taken on the associated devices 102 102 If the Relay 2 is OFF the associated devices are OFF; if it is ON no action is taken on the associated devices 0 0 The associated devices are switched OFF -1 -1 The associated devices are switched ON 103 103 If the Relay 2 is ON the associated devices are OFF; if it is OFF no action is taken on the associated devices 104 104 If the Relay 2 is OFF the associated devices are ON; if it is ON no action is taken on the associated devices 105 105 If the Relay 2 is ON/OFF, the associated devices are OFF/ON 106 106 No action is taken on the associated devices 10 Timer to switch ON the Channel 1 Defines the time after which the Channel 1 is switched ON. 0 2 0 0 0 From To Description 0 0 Timer disabled 1 32000 After this time the relay of the Channel 1 is ON 11 Timer to switch ON the Channel 2 Defines the time after which the Channel 2 is switched ON. 0 2 0 0 0 From To Description 0 0 Timer disabled 1 32000 After this time the relay of the Channel 2 is ON 60 Start-up status Defines the status of the device following a restart. 0 1 0 0 4 From To Description 4 4 Status prior to restart 0 0 Both Relay 1 and Relay 2 OFF 1 1 Relay 1 ON, Relay 2 OFF 2 2 Relay 1 OFF, Relay 2 ON 3 3 Both Relay 1 and Relay 2 ON 61 Configuration reset 0 1 0 0 4 From To Description 0 0 The device is reset to the original factory settings 1 1 All associations and only the associations are reset 2 2 The associations are maintained while all other configuration parameters are reset to the original factory settings, except for the specific configuration. 3 3 The device will be restarted 4 4 IGNORE 62 Type of external switch 0 1 0 0 4 From To Description 0 0 The actions on the external switch are ignored. In this mode, the device can only be controlled via the network. 1 1 The external switch is a normally open button 2 2 The external switch is a traditional switch 4 4 After the first single click on the external switch, the system automatically determines the type of external switch used and sets the parameter with the new value accordingly.
Texts	ID Description Value 1 Inclusion If the device is not included into a Z-Wave network, a single click on the (B) button or on one of the external switches will launch the process of traditional inclusion. If the device inclusion procedure does not start within 2 seconds, the Network Wide Inclusion network will be launched lasting a variable amount of time between 15-30 seconds. 2 Exclusion Only a controller can remove a device from the network. WiDom Universal Double Switch is compatible with all Z-Wave certified controllers. After the exclusion procedure has been activated by the controller, the device can be removed, putting it in Exclusion Mode by three consecutive clicks on the (B) button or on the external switch, when available. 5 Factory Reset The device can be reset ot the factory reset by six consecutive clicks. This procedure shuld be used only if the primary controller is missing or inoperable. 6 Additional Special Features The firmware update procedure must be enabled on the device with four consecutive clicks. The activation lasts 10 seconds, after which the firmware update procedure will need to be re-enabled if it has not been activated in the first instance.
Supports NWI	Yes
Supports Explorer Frames	Yes
