COMMAND_CLASS_DOOR_LOCK

Door Lock

0x62

1

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_USER_CODE

User Code

0x63

1

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC

Manufacturer Specific

0x72

1

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3

Firmware Update Meta-Data V3

0x7A

3

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

Manual_Primary_Lang

Product or Owner's Manual

Color

Door Lock Type

Firmware Updatable

Outdoor Use

Battery Quantity

Battery Type

1

5

0

Z-Wave Plus Lifeline

1

Inclusion

To include our device into a controller. 1. Perform 'Include' on the controller. 2. From the lock's main menu item ""7.Z-Wave"", select the ""Z-WaveInclusion"" by using the arrow keys to scroll to it and then pressing 'M' to select it. After a few second, you should see ""Success"" on the lock.

2

Exclusion

To exclude our device from a controller. 1. Perform 'Exclude' on the controller. 2. From the lock's main menu item ""7.Z-Wave"", select the ""Z-WaveExclusion"" by using the arrow keys to scroll to it and then pressing 'M' to select it. After a few second, you should see ""Success"" on the lock.

6

Additional Special Features

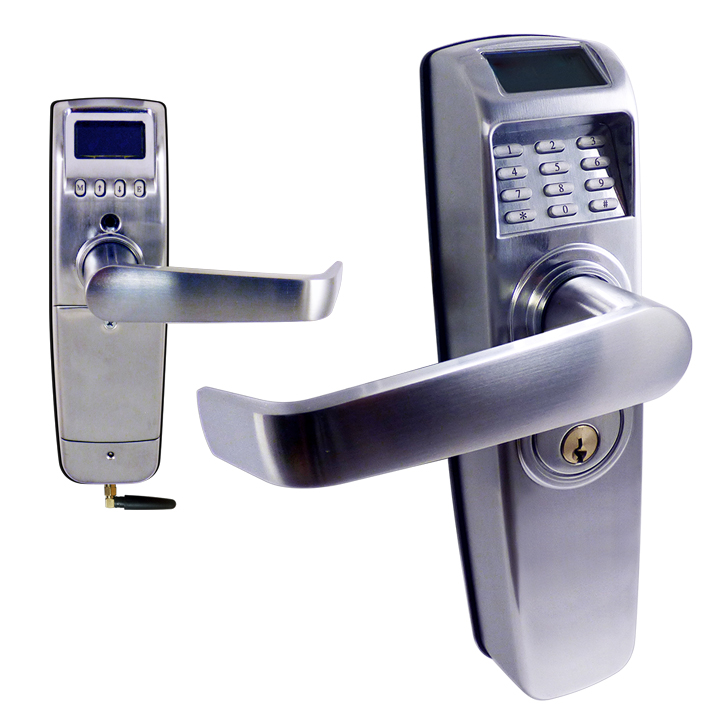

• 1,000 user capacity • Multi-modal options with Secure PIN Code and mechanical key • Easy to read OLED screens • Z-Wave Plus 5202 chipset with integrated Z-Wave controller • Mesh network extends range of other devices • Operate stand alone or integrate server side • Capture, review, and transmit audit trail history • IP56 tested and dust proof design • Rugged, zinc cast enclosures • MS1 is an optional management software tool that allows you to administer an unlimited number of locks • FCC, CE, UL, ANSI, ROHS Certifications • ISO/TS, 16949, ISO 9001, ISO 14001 Compliant • 83% Made in America • 2 year warranty from date of purchase

5

Factory Reset

If your controller fails or is replaced or if you need to perform a Factory Reset on the device so that an inclusion may be performed again or with a new controller, Factory reset can be done on the device by selecting 'Hard Reset' from the Main Menu on device's display and pressing the 'M' button. When prompted to reset press the 'M' button on the unit and the device will display initializing. Once the reset is complete the display will return to the Main Menu. Note: When a Hard Reset is completed, the Z-Wave node id is initialized to 0 and the device can't be controlled by Z-Wave. in order to control the device again, the controller needs to include the device on Z-Wave network. Please use this procedure only when the network primary controller is missing or otherwise inoperable.

4

Device Wake-Up

When accessing the lock simply press the # button to scan a fingerprint or enter your pincode directly then press the * button twice. To access the Main Menu press the M button on the inside unit. Any Z-Wave communication will wake the unit and then execute any command from a paired controller.
