Product Recognition
Certification Number	ZC10-15060013

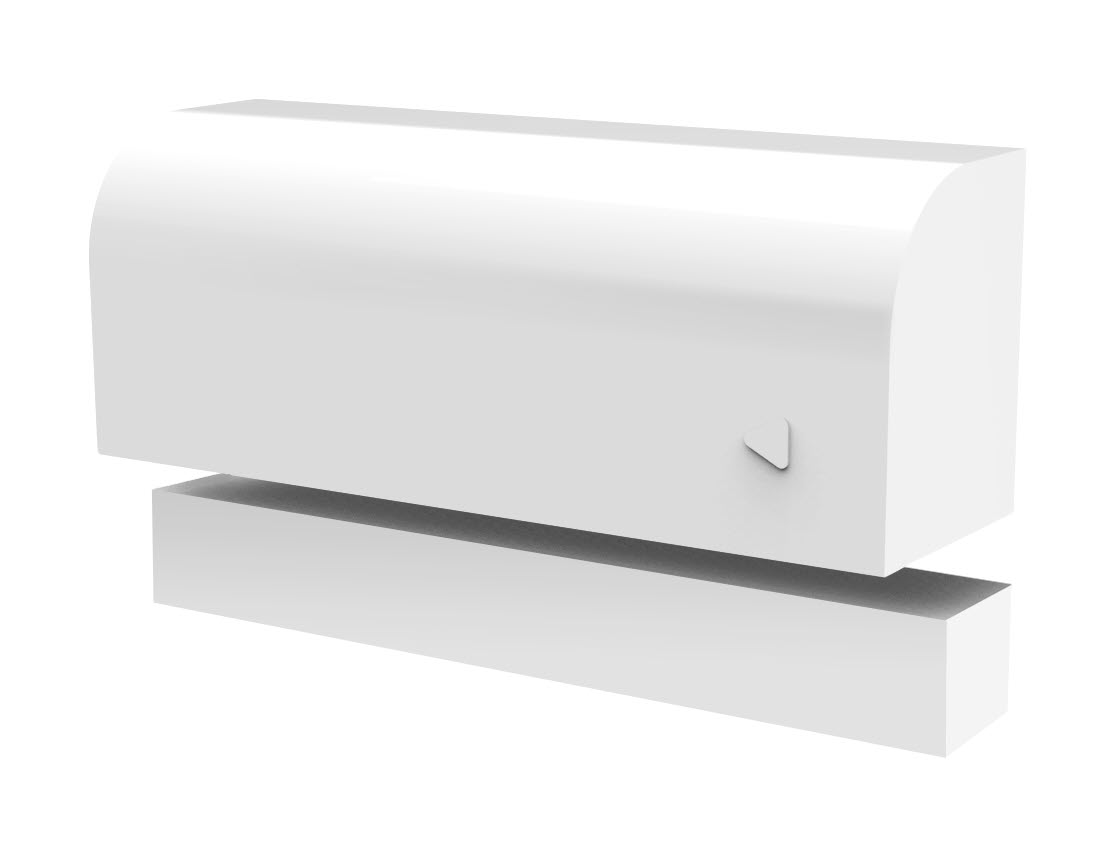

Name	Window/Door Sensor
Short Description	Window/Door sensor
Long Description	Detecting Window/Door open Harmonious design concept with home interior
Brand	SAMSUNG SDS
Product Identifier	SHP-SB100Z
OEM Version	01
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x022E
Product Type ID	0x0004
Product ID	0x0004
Frequency Plans	KR: 920.90MHz, 921.70MHz, 923.10MHz
Categories	Sensors
Countries / Regions	Republic of Korea
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 20150609 CEF17850 SHP-SB100Z Manual_fn.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 - Lifeline between controller and SHP-SB100Z - Supported command classes : Battery report, Notification report, and Device Reset Locally notification
Texts	ID Description Value 4 Device Wake-Up - wake up when push a Func Button - wake up when door sensor is detected 1 Inclusion - Click [Add] icon in Z-Wave PC Controller Program - Press a Func_Button 1 time in SHP-SB100Z (Door Sensor) - If Inclusion Process is successful, LED is Blinking 3 times in SHP-SB100Z 2 Exclusion - Click [Remove] icon in Z-Wave PC Controller Program - Press a Func_Button 3 times quickly in SHP-SB100Z - If Exclusion Process is successful, LED is Blinking 5 times in SHP-SB100Z 5 Factory Reset Device Factory Reset - Use this procedure only when he network primary controller is missing or otherwise inoperable - Press a Func_Button for 10 seconds in SHP-SB100Z - If Factory Reset Process is successful, LED is Blinking 1 time in SHP-SB100Z - Device Reset Locally notification is Transmitted
Supports NWI	Yes
Supports Explorer Frames	Yes
