Certification Number | ZC10-17075685 |
|---|

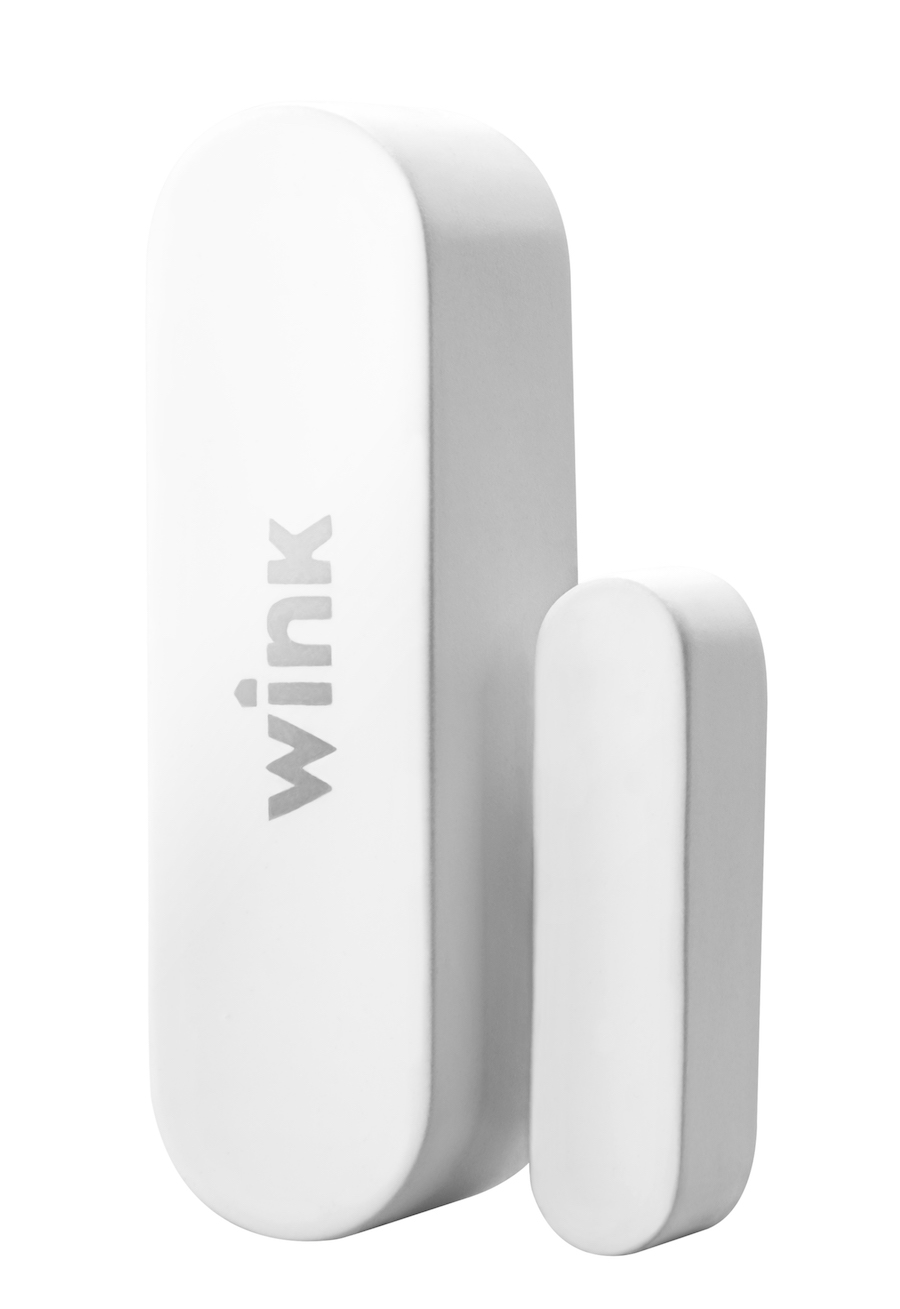

Name | Wink Door/Window Sensor |
|---|
Short Description | Z-Wave Plus wireless magnetic door/window sensor. |
|---|
Long Description | The Wink Door/Window Sensor is a Z-Wave Plus battery-powered device that detects when a door, window, or cabinet is opened and closed in your home, helping you monitor activity around your home to keep your family safe. Works with exterior and interior doors, garage doors, patio doors, windows, cabinets, drawers, and other openings.
When your sensor detects activity, your Wink Hub or other Z-Wave Plus certified hub can send an alert to your smartphone, set off an alarm or chime, or trigger an automation such as turning on your lights.
The Wink Door/Window Sensor offers an extra-long z-wave wireless range of up to 150 feet, and requires a Wink Hub or other Z-Wave Plus certified hub for operation. The Wink Door/Window sensor comes with a CR14250 battery and has a three-year battery life, and will send an alert to your smartphone via the hub when the device has low battery.
· Z-Wave Plus Certified
· Requires a Z-Wave Plus Certified Hub to operate
· Works with all Z-Wave Plus compatible networks
· Up to 150 feet range
· Three-Year Battery Life (CR14250 Battery included)
· Low Battery Indication
· Measurements in millimeters: 19 x 66.3 x 20.2 mm (sensor) and 10 x 39.55 x 10.5 mm
(magnet) |
|---|
Brand | Wink |
|---|
Product Identifier | Wink D/W Sensor |
|---|
OEM Version | HW: 65 FW: 3.61 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x017F |
|---|
Product Type ID | 0x0100 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0C06 |
|---|
Installer Icon | 0x0C06 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Sensors | Value |
|---|
Open/Closed (Binary) |
| Color | | Supported Notification Types | | Battery Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
4 | 5 | 0 | Group 4 supports up to 5 members and the Door/Window Sensor sends it a SENSOR_BINARY_REPORT when the door either opens or closes. | 1 | 5 | 0 | Group 1 is the “Lifeline” group, which can hold five members, typically including the main Z-Wave controller. The Door/Window Sensor sends this group a Notification Report and a Binary Sensor Report when it is opened or closed. It also sends this group a Battery Report in response to Battery Get commands. | 2 | 5 | 0 | The Door/Window Sensor sends a Basic Set command to association Group 2 (or the Control Group) to directly trigger devices (like a light, chime, etc.) in response to events. Then, after a preset delay, a BASIC_SET(0x00) command is sent to reset the device (e.g. turn off the light.) The value of the Basic Set command (e.g. brightness of the lamp,) and the delay time before the BASIC_SET(0x00) is sent is configured using configuration parameters 1 and 2 respectively. | 3 | 5 | 0 | Group 3 supports up to 5 members and the Door/Window Sensor sends it a NOTIFICATION_REPORT when the door either opens or closes. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | BASIC_SET Level | This parameter sets the value sent by the BASIC_SET command to Association Group 2 (for more information, see “Association Groups”.) | 0 | 1 | 0 | 0 | 99 | From | To | Description |
|---|
0 | 0 | Off/Cancel Alarm/Etc. | 1 | 99 | Dim Level (for Multilevel Switch) | 255 | 255 | On (for Binary Switch) |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Follow the instructions for your Z-Wave certified Controller to enter inclusion mode.
When prompted by the Controller:
1. For proper inclusion, bring the Door/Window Sensor within range of your Controller.
2. Pull the battery tab on the backside of the sensor to power on, or remove then re-install the batteries. The LED light should blink. | 2 | Exclusion | Follow the instructions for your Z-Wave certified Controller to enter exclusion mode. When prompted by the Controller:
1. Press the sensor cover release button to remove the top cover, and be sure the sensor is powered on.
2. Press the Connect Button next to the battery quickly 3 times in a row.
The LED indicator will flash five times indicating exclusion/disconnection | 4 | Device Wake-Up | Because the Door/Window Sensor is a battery powered device, it wakes up on regular intervals to give battery and other status updates to the controller, as well as to accept configuration settings from the controller (as opposed to always remaining online and draining its battery.) The device can be forced to wake up (to submit these reports or accept new settings immediately) by simply pressing and holding the BUTTON for two seconds. | 5 | Factory Reset | If needed, the Door/Window Sensor can be reset locally by following these steps. Only do this when your Z-Wave controller is disconnected or otherwise unreachable. Beware that resetting your device will disconnect it from the system:
1. Remove the SENSOR COVER and confirm that your Door/Window Sensor is powered up.
2. Press and hold the BUTTON for at least 10 seconds then release. A flashing light indicates a successful factory reset.
3. The Door/Window Sensor’s memory will be erased to factory settings. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
