Product Recognition
Certification Number	ZC10-14080002

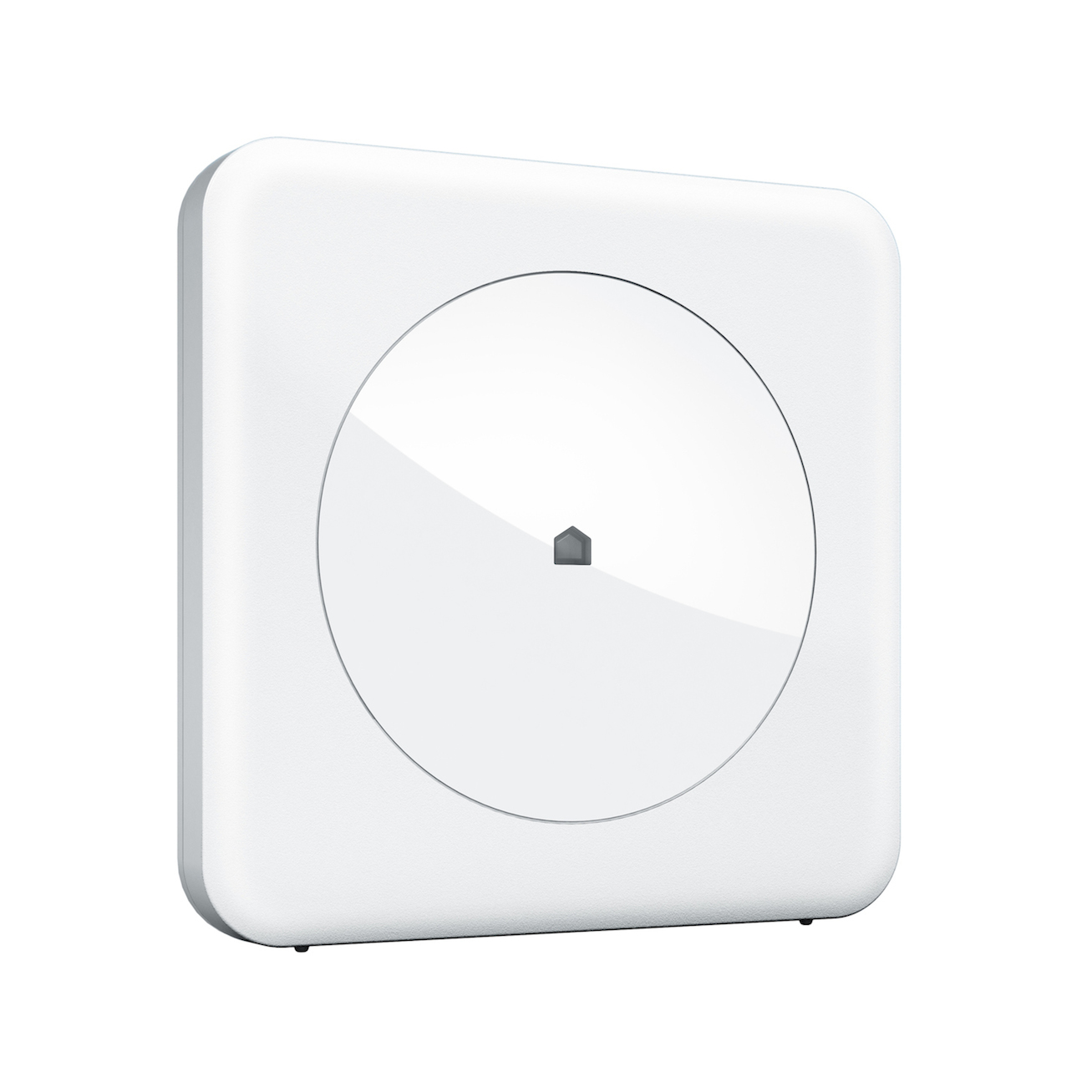

Name	Wink Hub
Short Description	The Wink HUB is the, quick and simple way to connect you and the products you rely on in the home. Wink allows you to confidently interact with and operate many different products – all from an Apple or Android mobile device.
Long Description	The Wink HUB allows you to easily manage your suite of smart home products while the Wink app gives you the comfort of knowing your home is safe wherever you are. Living in the future has never been so easy. The Wink hub allows your diverse collection of smart products to speak the same wireless language, so you can easily control them -- and customize their interactions-- from the Wink app on your mobile device By connecting products to the Wink app with the Hub, you can: • Control lights, locks, and more from anywhere in the world • Receive text or email alerts when loved ones return home • Program smart devices to operate based on your schedule
Brand	Wink
Product Identifier	PWHUB-WH01
OEM Version	01.0
Hardware Platform	ZM5202
Z-Wave Version	6.51.00
Library Type	CONTROLLER_STATIC
Device Type	Gateway
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x017F
Product Type ID	0x0001
Product ID	0x0001
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_ASSOCIATION Association 0x85 1 COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_WAKE_UP Wake Up 0x84 1 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE Thermostat Operating State 0x42 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_VERSION Version 0x86 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Wink_HUB_FAQ.pdf
Association Groups
Texts	ID Description Value 23 Controller Inclusion Including a product into the Wink HUB is done using the Wink mobile app (iOS or Android). After installing the app and creating an account, the app allows you to select from a list of Wink compatible products. Among these products User's can find Wink specific and generic Z-Wave devices. After selecting a device the Wink app will provide step by step instructions explaining how to include the device. At the appropriate point in the sequence, the app will also place the HUB into inclusion mode. An alternate option is to use the Z-Wave Controls interface located under the HUB's settings menu. Within the Z-Wave Controls interface is a ""Inclusion Mode"" button which will manually place the HUB into inclusion mode. 4 Device Wake-Up NA 3 Learn Mode (adding another controller) The HUB is placed into learn mode using the Z-Wave Controls interface located under the HUB's settings menu. Within the Z-Wave Controls interface is a ""Learning Mode"" button which will manually place the HUB into learn mode. 5 Factory Reset The HUB does not have a master factory reset function that will reset all radios. However, it does support a reset for Z-Wave products. The HUBs Z-Wave controller is reset using the Z-Wave Controls interface located under the HUB's settings menu. Within the Z-Wave Controls interface is a ""Reset Z-Wave"" button which will remove all nodes and reset the Z-Wave radio. 6 Additional Special Features NA 24 Controller Exclusion Excluding a product from the Wink HUB is done using the Wink mobile app (iOS or Android). After including a device it will show up in the controllable products list. Navigating to the device settings will expose a ""Remove"" button that is used to begin the exclusion sequence. Depending on the device the remove button may launch step by step instructions explaining how to exclude the device. At the appropriate point in the sequence, the app will also place the HUB into exclusion mode. An alternate option is to use the Z-Wave Controls interface located under the HUB's settings menu. Within the Z-Wave Controls interface is a ""Exclusion Mode"" button which will manually place the HUB into exclusion mode.
Supports NWI	Yes
Supports Explorer Frames	Yes
