Wink Hub 2 – Z-Wave Alliance Product Catalog

Back to Listing

Product Recognition

Certification Number

ZC10-17035513

Name

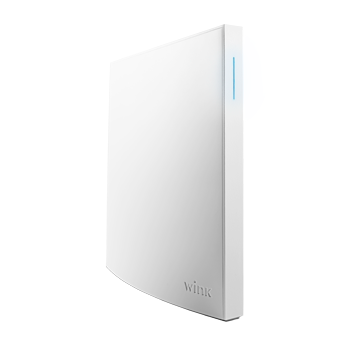

Wink Hub 2

Short Description

The Wink HUB 2 is the, quick and simple way to connect you and the products you rely on in the home. Wink allows you to confidently interact with and operate many different products – all from an Apple or Android mobile device.

Long Description

The Wink HUB 2 allows you to easily manage your suite of smart home products while the Wink app gives you the comfort of knowing your home is safe wherever you are. Living in the future has never been so easy. The Wink hub allows your diverse collection of smart products to speak the same wireless language, so you can easily control them -- and customize their interactions-- from the Wink app on your mobile device By connecting products to the Wink app with the Hub, you can: • Control lights, locks, and more from anywhere in the world • Receive text or email alerts when loved ones return home • Program smart devices to operate based on your schedule

Brand

Wink

Product Identifier

PWHUB-WH02

OEM Version

HW: 1 FW: 1.02:03.05

Hardware Platform

ZM5202

Z-Wave Version

6.61.00

Library Type

CONTROLLER_STATIC

Device Type

Gateway

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x017F

Product Type ID

0x0001

Product ID

0x0001

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

All Controllers, Gateway Controller

Countries / Regions

United States of America

Supported Command Classes

Controlled Command Classes

Documents

Features

Association Groups

Texts

ID	Description	Value
24	Controller Exclusion	Excluding a product from the Wink HUB 2 is done using the Wink mobile app (iOS or Android). After including a device it will show up in the controllable products list. Navigating to the device settings will expose a ""Remove"" button that is used to begin the exclusion sequence. Depending on the device the remove button may launch step by step instructions explaining how to exclude the device. At the appropriate point in the sequence, the app will also place the HUB into exclusion mode. An alternate option is to use the Z-Wave Controls interface located under the HUB's settings menu. Within the Z-Wave Controls interface is a ""Exclusion Mode"" button which will manually place the HUB into exclusion mode.
23	Controller Inclusion	Including a product into the Wink HUB 2 is done using the Wink mobile app (iOS or Android). After installing the app and creating an account, the app allows you to select from a list of Wink compatible products. Among these products User's can find Wink specific and generic Z-Wave devices. After selecting a device the Wink app will provide step by step instructions explaining how to include the device. At the appropriate point in the sequence, the app will also place the HUB into inclusion mode. An alternate option is to use the Z-Wave Controls interface located under the HUB's settings menu. Within the Z-Wave Controls interface is a ""Inclusion Mode"" button which will manually place the HUB into inclusion mode.
3	Learn Mode (adding another controller)	The HUB is placed into learn mode using the Z-Wave Controls interface located under the HUB's settings menu. Within the Z-Wave Controls interface is a ""Learning Mode"" button which will manually place the HUB into learn mode.
5	Factory Reset	The HUB does not have a master factory reset function that will reset all radios. However, it does support a reset for Z-Wave products. The HUBs Z-Wave controller is reset using the Z-Wave Controls interface located under the HUB's settings menu. Within the Z-Wave Controls interface is a ""Reset Z-Wave"" button which will remove all nodes and reset the Z-Wave radio. If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.

Supports NWI

Yes

Supports Explorer Frames

Yes

Radio Range Z-Wave (m)
