Product Recognition | |
|---|
Certification Number | ZC10-17065664 |
|---|

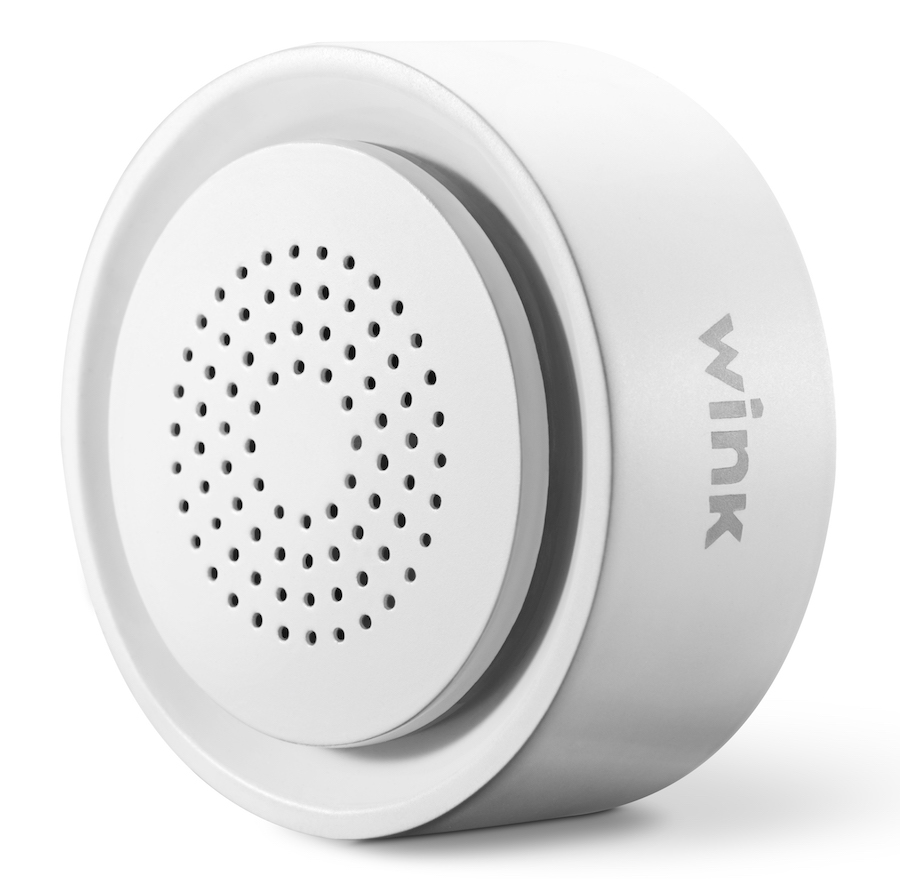

Name | Wink Siren |
|---|
Short Description | Z-Wave Plus battery-powered siren with a primary alarm, secondary chime, and LED. The user can select the sound to play for the primary alarm and secondary chime from 10 choices. |
|---|
Long Description | The Wink Siren is a Z-Wave Plus battery-powered device that will sound an alarm, chime, and flash a built-in light to let you know when doors and windows open or when motion is detected in your home. The siren’s multi-purpose functionality of an alarm siren, doorbell, or chime notification can be turned on and off manually or automatically from your smartphone using a Wink Hub or other Z-Wave Plus certified hub.
The Wink Siren offers ten user selectable sounds for alarm and chime, with three volume levels (up to 105dB) and adjustable siren duration timeout. Additional visual notification is provided by built-in flashing blue LEDs when triggered.
The Wink Siren offers an extra-long z-wave wireless range of up to 150 feet, so you can place it in your home where it’s needed, and requires a Wink Hub or other Z-Wave Plus certified hub for operation. The siren comes with two CR123A 3.0V batteries and has a three-year battery life, and will send an alert to your smartphone when the device has low battery.
· Z-Wave Plus Certified
· Requires a Z-Wave Plus Certified Hub to operate
· Works with all Z-Wave Plus compatible networks
· 110° Extra-Wide Coverage Area
· Up to 150 feet range
· Three-Year Battery Life (Two CR123 Batteries included)
· Low Battery Indication
· Measurements in millimeters: 64.3 x 64.3 x 30.1 |
|---|
Brand | Wink |
|---|
Product Identifier | Wink Siren |
|---|
OEM Version | HW: 48 FW: 2.65 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.08 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Siren |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x017F |
|---|
Product Type ID | 0x0200 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0F00 |
|---|
Installer Icon | 0x0F00 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Security Add-Ons |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V6 | Notification V6 | 0x71 | 6 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Type | | Color | | Supported Notification Types | | Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Group 1 is the “Lifeline” group, which can hold five members, typically including the main Z-Wave controller. The Siren sends this group a Notification Report and a Binary Switch Report when the siren is turned on or off. It also sends this group a Battery Report in reponse to Battery Get commands and a Locally Reset Notification upon local reset. | 2 | 5 | 0 | Group 2 can hold five members, and the Siren sends a single command to this Association Group, the Binary Switch Report, whenever the Siren is turned on or off. | 3 | 5 | 0 | Group 2 can hold five members, and the Siren sends a single command to this Association Group, a Notification Report, whenever the Siren is turned on or off. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Primary Notification Length | This parameter defines the length of the Alarm/primary notification. | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
2 | 2 | 1 Min | 3 | 3 | 5 Min | -1 | -1 | Plays until battery dies | 1 | 1 | 30 Sec |
| 5 | Primary Notification Sound | The Siren offers ten different sounds to use as the Siren (primary) notification. This parameter sets the Siren (primary) notification sound. | 0 | 1 | 0 | 0 | 9 | From | To | Description |
|---|
1 | 10 | Tone Index Number |
| 6 | Secondary Notification Sound | If Parameter 7 is set to 02, the Siren will play a secondary chime sound instead of the main alarm. The Siren offers ten different sounds to use as the Chime (secondary) notification. This parameter sets the Chime (secondary) notification sound. | 0 | 1 | 0 | 0 | 10 | From | To | Description |
|---|
1 | 10 | Tone Index Number |
| 7 | Toggle Secondary Chime | This Parameter toggles between the Primary and Secondary notification sound to be played when the Siren receives a BINARY_SWITCH_SET(FF) command. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | Primary Notification Will Play | 2 | 2 | Secondary Notification Will Play |
| 1 | Primary Notification Volume Level | This parameter sets the volume of the Siren (primary) sound. There are three possible volume levels available. | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
1 | 1 | Low Volume | 2 | 2 | Medium Volume | 3 | 3 | High Volume |
| 3 | Secondary Notification Length | This parameter defines the length of the Chime/secondary notification. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 127 | Chime Duration (in Minutes) | -128 | -2 | Chime Duration (in Minutes; -128=128 min, -2=254 min) | -1 | -1 | Chime Will Not Play | 0 | 0 | Does Not Stop |
| 4 | Secondary Notification Volume Level | This parameter sets the volume of the Chime (secondary) sound. There are three possible volume levels available. | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
2 | 2 | Medium Volume | 3 | 3 | High Volume | 1 | 1 | Low Volume |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Follow the instructions for your Z-Wave certified Controller to enter inclusion mode.
When prompted by the Controller:
1. For proper inclusion, bring the Siren within range of your Controller.
2. Pull the tab on the side of the siren to power on, or remove then re-install the batteries.
The LED Ring will flash five times indicating inclusion. | 2 | Exclusion | Follow the instructions for your Z-Wave certified Controller to enter exclusion mode.
When prompted by the Controller:
1. Remove the Back Plate of the Siren and be sure it is powered on
2. Press the Connect Button quickly 3 times in a row.
The LED Ring will flash five times indicating exclusion/disconnection. | 5 | Factory Reset | To disconnect from the Z-Wave Network and restore factory default settings:
1. Remove the Back Plate and make sure the Siren is powered.
1. Hold the Connect Button for 10 seconds until the LED Ring blinks once, then release the button.
Only do this if the controller is missing or otherwise unreachable! | 6 | Additional Special Features | Use the Binary Switch command class to trigger the main siren, or the Indicator. Set command to trigger one of ten different secondary chime notifications (indicator.set accepts values from 01~0A.) |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Siren | (Refer to parameters): State idle | Siren | Siren status: Siren active | Siren | Unknown event/state |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
