Product Recognition | |
|---|
Certification Number | ZC14-25080545 |
|---|

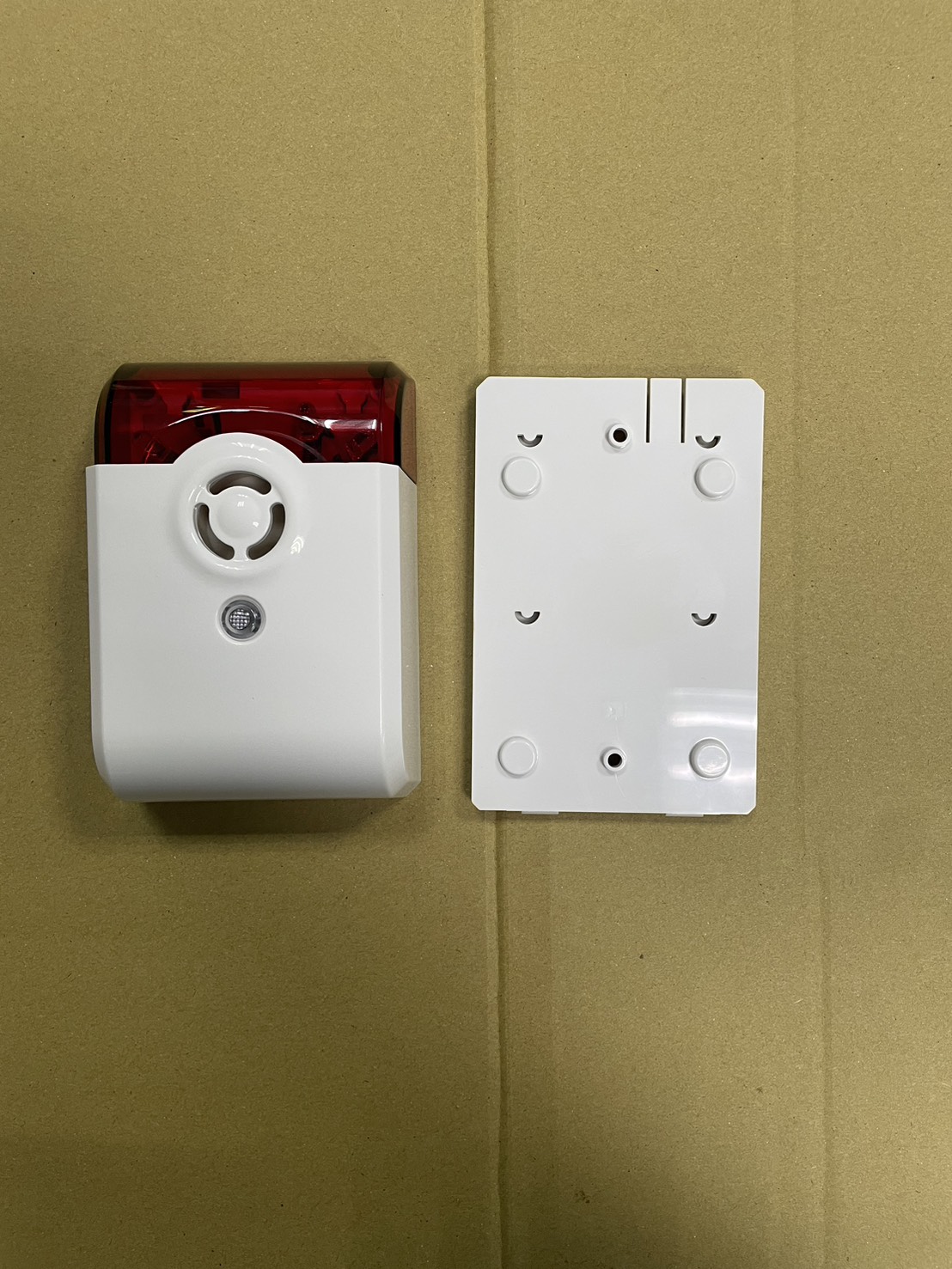

Name | Wireless Siren & Strobe |
|---|
Short Description | The Vision Indoor Siren will emit a loud audible alarm and blink a strobe light while receiving an alert or signal from the Z-Wave network. |
|---|
Long Description | The Vision Indoor Siren will emit a loud audible alarm and blink a strobe light while receiving an alert or signal from the Z-Wave network. It can work seamlessly
with any Z-Wave® enabled controller or system, regardless of the manufacturer, as long as it bears the Z-Wave® logo. When included securely into a Z-Wave® network, all communications to and from the siren are encrypted, ensuring a higher level of security and protection for your smart home. Ideal for enhancing home safety, this siren provides both audio and visual warnings to deter intrusions or signal emergency events.
The siren features a built-in self-protection mode - it will automatically activate if the rear cover is opened, ensuring enhanced security. Also it supports over-the-air (OTA) firmware updates, allowing future improvements without physical access.
Moreover, a wide range of configurable parameters, enabling personalized settings to meet various installation and usage needs. |
|---|
Brand | Vision |
|---|
Brand Owner | Vision |
|---|
Product Identifier | ZM1601ANZ-8 |
|---|
Product Line | Z-WAVE 800 series |
|---|
OEM Version | HW: 03 FW: 20.25:02.03 |
|---|
Hardware Platform | EFR32ZG23A |
|---|
Z-Wave Version | 7.20.3 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Binary Switch DT |
|---|
Role Type | ROLE_TYPE_END_NODE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0109 |
|---|
Product Type ID | 0x2005 |
|---|
Product ID | 0x0510 |
|---|
User Icon | 0x0F00 |
|---|
Installer Icon | 0x0F00 |
|---|
Radio Range Z-Wave (m) | 75 |
|---|
Frequency Plans | ANZ: 919.80MHz, 921.40MHz |
|---|
Categories | Sensors, Security Systems |
|---|
Countries / Regions | Australia, Brazil, Chile, Ecuador, El Salvador, Indonesia, Malaysia, New Zealand, Paraguay, Peru, Uruguay, Venezuela, Vietnam |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY_V2 | Binary Switch V2 | 0x25 | 2 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_English | Add the ® with "Z-Wave Plus" on page 6, sec 11 | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 5 | 0 | Lifeline | 0x0001 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
1 | Siren Strobe Mode | 0:All Enable/1:Siren/2:Strobe, default:0 | 1 | 1 | 0 | 0 | 0x00 | 2 | Siren Single Count | Set 0~10 Siren Single Count, default:0 | 1 | 1 | 0 | 0 | 0x00 | 3 | Alarm Auto Stop Time | 0:30s/1:60s/2:120s/3:No Stop, default:0 | 1 | 1 | 0 | 0 | 0x00 | 4 | Report Retry Count | Set 0~5 Report Retry Count, default:0 | 1 | 1 | 0 | 0 | 0x00 | 5 | Supervision Timeout | Set 500~10000 ms, default:500 | 1 | 2 | 0 | 0 | 0x01F4 |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The DSK label is located on the back of the sensor. Scan the QR code on the DSK label during device setup. Once powered on, the device will automatically join the network.
The DSK label will be on the backside of ZM1601, Scan the DSK label to access the SmartStart if gateway 's UI supports SmartStart. (Remark: The QR code is for use with Z-Wave SmartStart by using “DSK,” “Device Specific Key,” “PIN,” or “PIN code,” etc.) | 1 | Classic Inclusion | To Include (Add) ZM1601 into a Z-Wave® Network:
1. Put your Z-Wave® Controller into inclusion mode.
2. Open the bracket and press the program switch for less than 5 seconds.
3. The LED will blink once after successful inclusion, and it also sends the
indicator report. | 2 | Classic Exclusion | To Exclude (Remove) ZM1601 from a Z-Wave® Network:
1. Put your Z-Wave® Controller into exclusion mode.
2. Press the program switch for less than 5 seconds.
3. The LED will blink 5 times after exclusion. | 5 | Factory Reset Procedure | Factory Default Reset:
Use a paperclip to access the Reset switch on the back side and wait for 10 seconds after removing the rear cover. The device will send the “Device Reset Locally Notification” command and reset to the factory default. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | (Refer to parameters): State idle | Home Security | Cover status: Tampering, product cover removed |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
