Product Recognition | |
|---|
Certification Number | ZC10-18056104 |
|---|

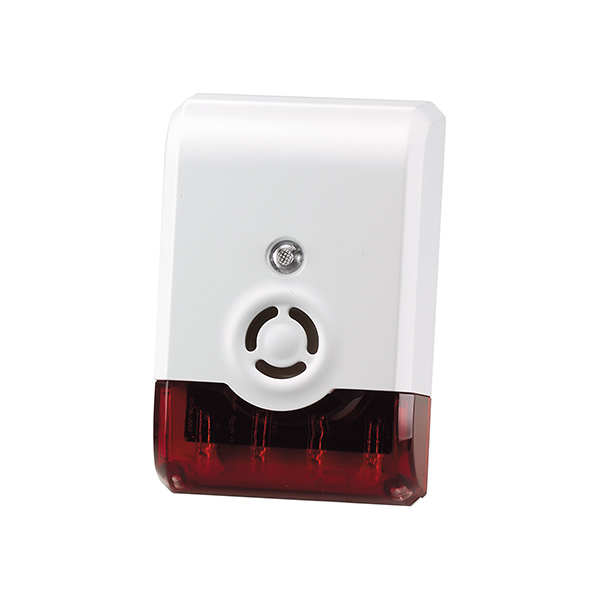

Name | Wireless Siren |
|---|
Short Description | Siren will sound a loud siren and flash a strobe light when an alarm message or alert is received on any Z-Wave™ enabled network. |
|---|
Long Description | Features:
*Loud audible alarm>105dB@1 meter
*LED strobe lighting
*Low battery detection
*Siren for Battery Back-Up
*100ft line of sight
*LED Status Indicator
*Operating temp: -15oC~60oC
*Working Voltage: 6V
*Dimensions: 116*77*40mm |
|---|
Brand | Vision |
|---|
Product Identifier | ZM1602US-5 |
|---|
OEM Version | HW: 1 FW: 15.10:05.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Siren |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0109 |
|---|
Product Type ID | 0x2009 |
|---|
Product ID | 0x0908 |
|---|
User Icon | 0x0F00 |
|---|
Installer Icon | 0x0F00 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Security Add-Ons |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Alarm Auto Stop Time | User can change the duration of siren time when triggered. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | 30 seconds - Default | 1 | 1 | 60 seconds | 2 | 2 | 120 seconds | 3 | 3 | Will Not Automatically Stop |
| 1 | Siren/Strobe mode | User can change value from 0 to 2 to turn either Siren sound, Strobe light, or both when triggered. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | All Enable - Default | 1 | 1 | Siren Only | 2 | 2 | Strobe Only |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZM 1602 to your controller. To get in the “inclusion” mode, the distance between siren and controller is suggested to be in one meter. Open the bracket and press the program switch of ZM 1602 for 1 second at least & release to be included. After setting, the LED Setting Lighting should go off, | 2 | Exclusion | Set up the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZM 1602 from your controller. Press the Tamper Switch of ZM 1602 for 1 second at least & release to be excluded. | 5 | Factory Reset | This device can’t be reset manually. It is reset to factory defaults when it is excluded. Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 4 | Device Wake-Up | removing the back cover of the ZM1602 to get into “Awake” mode, | 6 | Additional Special Features | 1. Support OTA firmware update from controller
2. Support Explorer Frame function |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Emergency Alarm | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
