Product Recognition

Certification Number

ZC12-21010160

Name

Wireless Water Detector 700

Short Description

Custos WWD (Wireless Water Detector) Super compact water detector with 4 side water detection and 5th remote water sensor probe

Long Description

Custos WWD (Wireless Water Detector) Is the smallest Z-Wave compact wireless water detector with 4 sides water detection capabilities plus integrated port for remote water sensor probe as secondary physical/logical detector, innovative design allows it to work on all orientations without worrying accidental flip, incorporated high energy density lithium battery for up to X years of battery operation life span.

Brand

Custos

Product Identifier

WWDZWU

Product Line

WWD - Wireless Water Detector

OEM Version

HW: 1 FW: 2.00

Hardware Platform

ZGM130

Z-Wave Version

7.14.3

Library Type

SLAVE_ENHANCED_232

Device Type

Notification Sensor

Role Type

ROLE_TYPE_SLAVE_SLEEPING_REPORTING

Manufacturer ID

0x0270

Product Type ID

0x0201

Product ID

0x010B

User Icon

0x0C05

Installer Icon

0x0C05

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

Water Valves & Irrigation

Countries / Regions

United States of America

Supported Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Overheat Cancellation Value

Overheat Cancellation Value auto report

511

342

From	To	Description
0	255	From 0°C to 255°C
256	511	From 0°F to 255°F

Water Leak Cancellation Report Set

Water Leak Probe Cancellation Report Set

From	To	Description
0	0	Send Basic SET when Water Alarm Cancelled “Either” Built-in “or” Remote Water Detection Probe
1	0	Send Basic SET when Water Alarm Cancelled Built-in “And” Remote Water Detection Probe

AG4 - Overheat Trigger Value

Overheat Trigger Value Basic SET

From	To	Description
0	0	Disable Basic Set (Send nothing)
1	0	Basic Set ON (0xFF)
2	0	Basic Set OFF (0x00)

Freeze Trigger Value

Configure Freeze Trigger Report value

511

360

From	To	Description
0	255	From 0°C to 255°C
256	511	From 0°F to 255°F

Freeze Recover Value

Configure Freeze Recover Report Value

511

342

From	To	Description
0	255	From 0°C to 255°C
256	511	From 0°F to 255°F

AG4 - Overheat Recover Value

Overheat Recover Value Basic SET

From	To	Description
0	0	Disable Basic Set (Send nothing)
1	0	Basic Set ON (0xFF)
2	0	Basic Set OFF (0x00)

Temperature Report Unit

Configure Temperature Report Unit

From	To	Description
0	0	Disable Temperature Report
1	0	Report Celsius °C unit
2	0	Report Fahrenheit °F unit

AG2 - Built-in Water Leak Trigger

Built-in Water Leak Trigger Basic SET

From	To	Description
0	0	Disable Basic Set (Send nothing)
1	0	Basic Set ON (0xFF)
2	0	Basic Set OFF (0x00)

Temperature Level Change Report

Temperature Level Change to auto report

511

260

From	To	Description
0	255	From 0°C to 255°C
256	511	From 0°F to 255°F

AG5 - Freeze Trigger Value

Freeze Trigger Value Basic SET

From	To	Description
0	0	Disable Basic Set (Send nothing)
1	0	Basic Set ON (0xFF)
2	0	Basic Set OFF (0x00)

AG2 - Built-in Water Leak Cancellation

Built-in Water Leak Cancellation Basic SET

From	To	Description
0	0	Disable Basic Set (Send nothing)
1	0	Basic Set ON (0xFF)
2	0	Basic Set OFF (0x00)

Temperature Value Offset Report

Temperature Value Offset Report Set

4607

256

From	To	Description
0	255	From 0°C to 255°C
256	511	From 0°F to 255°F
4096	4351	From -1°C to -255°C
4353	4607	From -1°F to -255°F

Overheat Trigger Value

Overheat Trigger Value SET

511

360

From	To	Description
0	255	From 0°C to 255°C
256	511	From 0°F to 255°F

AG5 - Freeze Recover Value

Freeze Recover Value Basic SET

From	To	Description
0	0	Disable Basic Set (Send nothing)
1	0	Basic Set ON (0xFF)
2	0	Basic Set OFF (0x00)

AG3 - Remote Water Leak Trigger

Remote Water Leak Trigger Basic SET

From	To	Description
0	0	Disable Basic Set (Send nothing)
1	0	Basic Set ON (0xFF)
2	0	Basic Set OFF (0x00)

AG3 - Remote Water Leak Cancellation

Remote Water Leak Cancellation Basic SET

From	To	Description
0	0	Disable Basic Set (Send nothing)
1	0	Basic Set ON (0xFF)
2	0	Basic Set OFF (0x00)

Buzzer Related Function Actions

Buzzer Related Function Actions Set

From	To	Description
0	0	Buzzer Enable responds with GSensor in action *(Default 1 = Eanbled)
1	0	Buzzer Enable responds with Water Leak Detection *(Default 1 = Enabled)

Buzzer Sound Saving Mode

Sound works first 3’S Water Leak Detected

From	To	Description
0	0	Disable Saving mode (Buzzer sound works during whole Water Leak is detected)
1	0	Enable Saving mode (Buzzer function only works 3’s when Water Leak is detected)

Texts

ID	Description	Value
1	Classic Inclusion	1. SmartStart: - To enable SmartStart, below methods can be used, please also refer to Gateway’s user manual i. Scan the Z-Wave QR Code or entering PIN Code or DSK String into S2 Enabled Gateway, please refer to item 16.11 SmartStart Labeling, . Re-install the battery then SmartStart will be enabled automatically, 2. Classic Inclusion / Add Device: - To enable Classic Inclusion: i. Set your Z-Wave Gateway into Inclusion Mode / Add Device processing. ii. Trigger Built-in Water Leak Sensor for 2 Seconds. iii. 2 x Buzzer Sound and 2 GREEN LED ON UI to confirm enter into Inclusion Mode iv. YELLOW LED will be flashing when Inclusion is processing.
5	Factory Reset Procedure	To perform Factory Default Reset as following steps – Only works in Mesh Network Mode . Shaking Custos WWD in Vertical / Horizontal to wake up it until get 1x Buzzer Sound & 1x GREEN LED ON, . Then stop shaking it, left WWD on the table in Horizontal position as Figure 12A, . Wait for Position Recognition confirmation UI with Buzzer Sounds & GREEN LED flashing 2 times “Event success UI”, . While GREEN & RED LED are flashing alternative for Gesture Recognition then roll Custos WWD in one complete turn “360°”and stick close to table surface as Figure 12B, . Wait for Gesture Recognition configuration UI with Buzzer Sounds & GREEN LED flashing 2 times “Event success UI”, . Then WWD will perform soft reset after GREEN LED is flashing for 2 seconds, . After soft reset with RED LED & Buzzer Sound x1 to finished Factory Default Reset action then SmartStart also will be activated.
6	Other Special Features	None

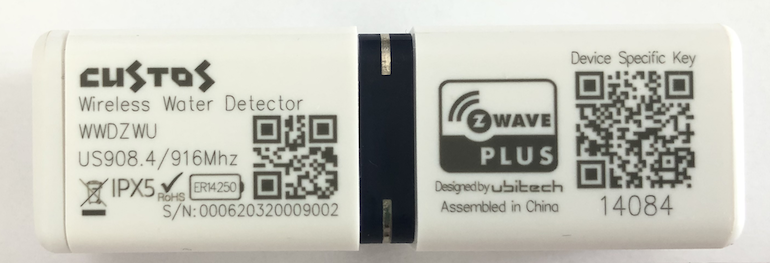

8	Where to find S2 DSK on product	1. The QR code of DSK is printed on the product itself; 2. The full DSK & QR code of packing label can be are printed on found outside of giftbox
4	Wake-Up Procedure	Shaking Custos WWD in Vertical/Horizontal to wakeup it until get 1xBuzzer Sound & 1xGREENLEDON,
2	Classic Exclusion	1. Trigger Built-in Water Leak Sensor - Only works in Standalone Mode . Set your Z-Wave Gateway into Exclusion Mode / Remove Device processing, . Trigger Built-in Water Leak Sensor for 2 Seconds, 2. Use Gesture Recognition – Only works in Mesh Network Mode . Set your Z-Wave Gateway into Exclusion Mode / Remove Device processing, . Shaking Custos WWD in Vertical / Horizontal to wakeup it until get 1x Buzzer Sound & 1x GREEN LED ON, . Then stop shaking it, left WWD on the table in Horizontal position as Figure 11A, . Wait for Position Recognition confirmation UI with Buzzer Sounds & GREEN LED flashing 2 times “Event successUI”, . While GREEN & RED LEDs are flashing alternative for Gesture Recognition then turn Custos WWD from Horizontal to Vertical position “90°”and stick close to table surface as Figure 11B, . Wait for Gesture Recognition configuration UI with Buzzer Sounds & GREEN LED flashing 2 times “Event success UI” for completion

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
