| Product Recognition | |
|---|
| Certification Number | ZC10-16030008 |
|---|
| Name | WTR-1000-11 |
|---|

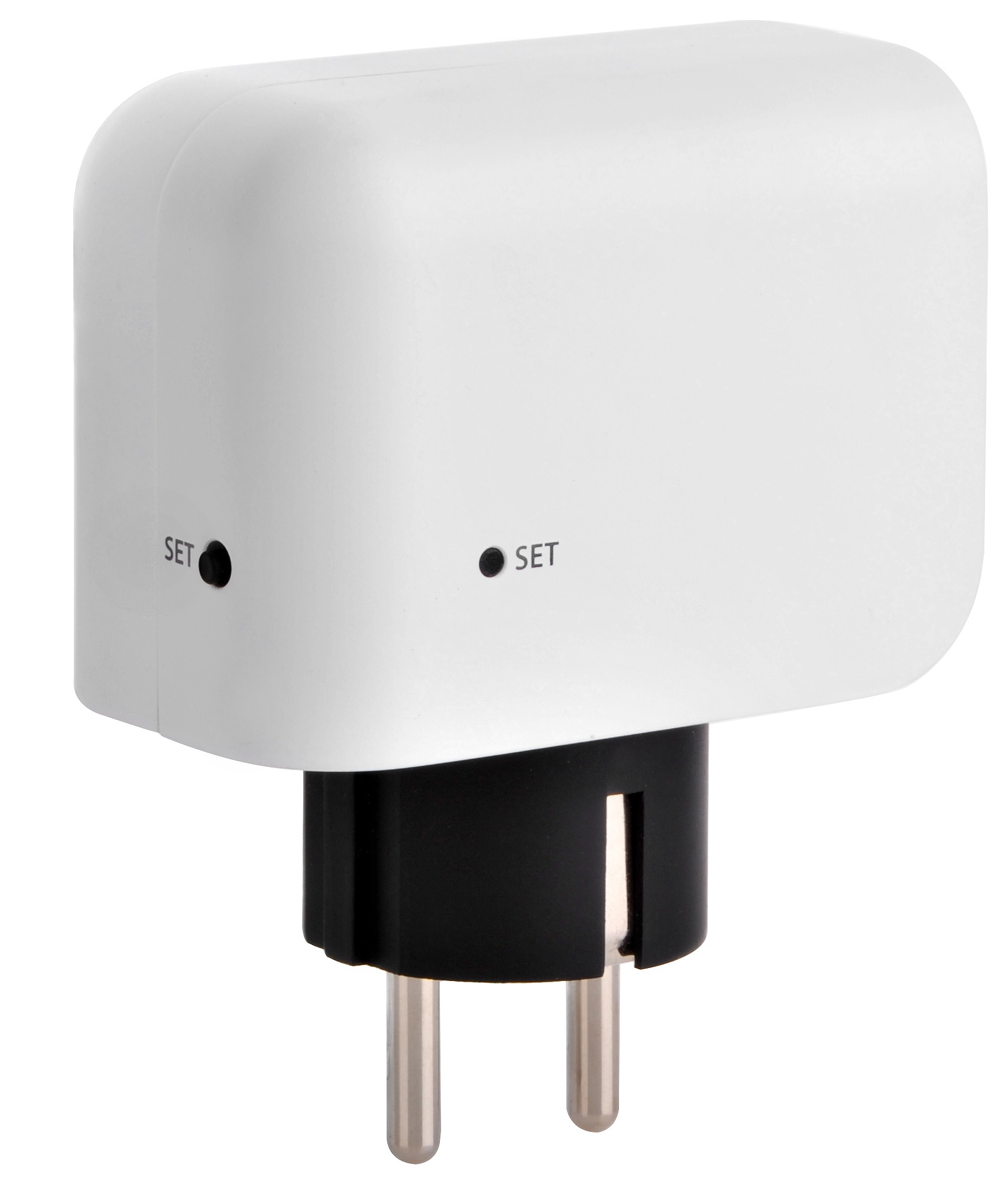

| Short Description | Use this repeater to extend the Z-WAVE signal for having a longer operating range. |
|---|
| Long Description | * Z-WAVE Plus Compatiable.
* Extends range of Z-WAVE mesh network
* Easy to install
* The standby power is less than 2W. |
|---|
| Brand | Winytechnology |
|---|
| Product Identifier | 03110101 |
|---|
| OEM Version | HW: 01 |
|---|
| Hardware Platform | ZM5101 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | Repeater |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x0242 |
|---|
| Product Type ID | 0x0003 |
|---|
| Product ID | 0x0011 |
|---|
| Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
| Categories | Network Devices |
|---|
| Countries / Regions | Republic of Korea |
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | A. Press Button switch 3 times in a row to link device to Z-Wave network or remove device from Z-Wave network.
B. Press Button switch 3 times in a row again to cancel to link device to Z-Wave network. | | 2 | Exclusion | A. Acknowledge of Green LED lightning.
B. Press Button switch 3 times in a row to link device to Z-Wave network or remove device from Z-Wave network. | | 5 | Factory Reset | A. Press Fn switch over 2minutes to initialize connecting network information.
Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
