Product Recognition
Certification Number	ZC10-17045541
Name	XLED home 2 Z-Wave

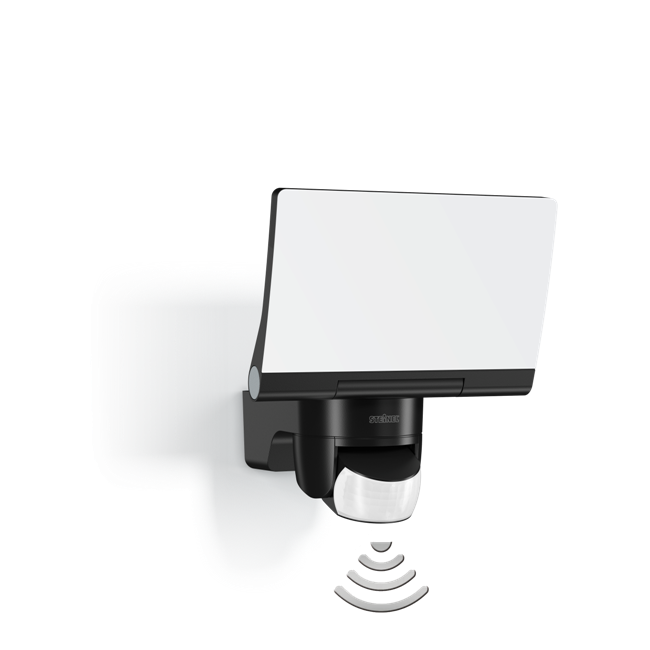

Short Description	Sensor-switched outdoor floodlight, can be integrated into the Smart Friends system or any other Z-Wave network, for even more safety and security. Fully swivelling LED panel, 1184 lm at a power consumption of only 14.8 W. Swivelling precision IR sensor. 140° angle of coverage, 14 m reach. High thermal conductivity magnesium composite cooling system (HCMC).
Long Description	The moveable sensor-switched outdoor floodlight with fully swivelling LED panel in a classy opal look. The XLED home 2 sensor-switched floodlight comes in a sophisticated design. It is not just an eye-catcher, but also a truly talented mover. Thanks to the fully swiveling LED panel, every corner of the entrance area can be illuminated flexibly and as required. The highly efficient LED technology coupled with the opal cover provides maximum lighting comfort. As an individual floodlight or interconnected with the slave version, the innovative new generation of the XLED home success series is available in white, black, graphite and silver. Smart home included. The optional Smart Friends Box and the free Smart Friends app make it easy to set the XLED home 2 Z-Wave via smart phone or tablet. The floodlight can also be switched ON or OFF via app. Other Steinel products can also be interconnected. If you wish, this also works via remote control when you are out. That completes your own light management system. Along with STEINEL products, Smart Friends solutions from PAULMANN, SCHELLENBERG and ABUS can also integrated. Smart homes from a brand-name provider.
Brand	Steinel GmbH
Product Identifier	50111677101
OEM Version	HW: 7 FW: 1.00:01.00
Hardware Platform	ZM5202
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0271
Product Type ID	0x0001
Product ID	0x1A73
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_NODE_NAMING Node Naming 0x77 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SENSOR_MULTILEVEL_V4 Sensor Multilevel V4 0x31 4 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual XLEDhome2Z-Wave_5spr_110050436_11.04.17.LowRes.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF Z-Wave Scene Type Value Scene Electric Load Type Value LED Switch Load Capacity Current Value 0,077 Switch Load Capacity Volt-Ampere Value 22,1 Switch Load Capacity Watts Value 14,8 Neutral Wire Required Outdoor Use Sensors Value Motion/No Motion (Binary) Luminance IP (Ingress Protection) Rated Supported Notification Types Value Home Security System
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline Lifeline messages - Device Reset Locally - Notifications: 0x09 ( System ) – Hardware failure with manufacturer proprietary code ( 0x03 ) 0x09 ( System ) – Software failure with manufacturer proprietary code ( 0x04 ) 0x07 ( Home security ) – Motion Begin event ( 0x08 ) 0x07 ( Home security ) – Motion End event ( 0x00, 0x08 ) - Binary Switch Report – lamp state - Multilevel Sensor Report – value of internal ambient light sensor Motion Begin and Motion End events are sent along with frames to group 3. If multichannel association is created the events are sent from motion sensor endpoint. Switch Report is sent immediately upon a change of status along with frames to group 2. If multichannel association is created the events are sent from lamp endpoint. Multilevel Sensor Report is sent a maximum of once per 1 minute (if the value has changed by least by 3%) and a minimum of once per 15 minutes (if the value has not changed). If the ambient light value is old (cannot measure because of permanent light), the value is not transmitted via lifeline. Multilevel Sensor Report can be also added to some other events to send in bulk. If multichannel association is created the events are sent from light sensor endpoint. All notifications to lifeline are sent as sensor states regardless of sensor settings and states as SLAVE_MODE, LOCAL_DISABLED and MOTION_ENABLE.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 TIME Duration of light after motion detection. 0 2 0 0 180 From To Description 5 900 seconds 6 BRIGHTNES MEAS INTERVAL Brightness measuring interval [ minutes ] Interval for ambient light measuring when lamp is on ( lamp switches off shortly and measures ). 0=function is off 0 1 0 0 0 From To Description 0 0 function is off 5 120 minutes 8 GLOBAL_LIGHT Use External Ambient Light Value When GLOBAL_LIGHT mode is ON – device overrides its own light sensor values and uses Light report values from any Z-Wave light sensor instead – this has to be configured appropriately to send light automatically. If the last remote light level value is older than 30 minutes, the internal light value is used again until the next external value is received. 0 1 0 0 1 From To Description 1 1 ON function 0 0 OFF function 10 OFF_BEHAVIOUR Behaviour after BASIC OFF ( and similar commands ). If a transition ( even with zero change ) with a non-default duration is to be processed, the transition cannot be interrupted by any motion event in any case. for values 1-209 - Lamp is switched off and remains so until after a specified timeout once a new motion event (local or remote) is received. 0 2 0 0 10 From To Description 0 0 Lamp is switched off and remains so until any new motion event (local or remote) is received. 1 100 timeout: 1 second (1) to 100 seconds (100) in 1-second resolution 101 200 timeout: 1 minute (101) to 100 minutes (200) 1-minute resolution 201 209 timeout: 1 hour (201) to 9 hours (209) in 1-hour resolution 255 255 Lamp is switched off for TIME (cfg 1). It does not wait for a motion event and works normally via current motion evaluation 11 ON_BEHAVIOUR Behaviour after BASIC ON (and similar commands). If a transition (even with zero change) with a non-default duration is to be processed, the transition cannot be interrupted by any motion event in any case. for values 1-209 - Lamp is switched on and remains so until after a specified timeout once a new motion event (local or remote) is received. It then works normally via current motion evaluation. 0 2 0 0 255 From To Description 0 0 Lamp is switched on and remains so until any new motion event (local or remote) is received. It then works normally via current motion evaluation. Notice – during the day, this mode cannot be ended remotely due to motion events not being transmitted – only via local motion sensor if enabled. 1 100 timeout: 1 second (1) to 100 seconds (100) in 1-second resolution 101 200 timeout: 1 minute (101) to 100 minutes (200) 1-minute resolution 201 209 timeout: 1 hour (201) to 9 hours (209) in 1-hour resolution 255 255 Lamp is switched on for TIME (cfg 1). It does not wait for a motion event and works normally via current motion evaluation. 2 LIGHT Light threshold [ lx ] Value can be controlled via potentiometer – potentiometer value is used as the default value and any potentiometer movement rewrites the current setting. 0 2 0 0 2000 From To Description 2000 2000 2000 - is used as daylight ( always night mode) 0 0 run Learn ambient light sequence (the level is set automatically) 2 1999 lux 5 SENSITIVITY Motion Sensor (radar) Sensitivity [%] Value can be controlled via potentiometer – potentiometer value is used as the default value and any potentiometer movement rewrites the current setting 0 1 0 0 100 From To Description 2 100 % 9 SLAVE_MODE Can disable sensor controll “Stupid” mode (bit 2 = 1): - has higher priority then slave mode. - lamp is permanently on (usefull for simple power wall switch controlling). Slave mode ( bit 0 = 1 ): - only if included in Z-Wave network - usefull for controlling via third-party sensor - lamp is directly controlled via Z-Wave, internal sensors are not used for controlling it. Central unit checking ( bit 1 = 1 ): ( usefull especialy for controlling via gateway ) When Slave bit is 0: - lamp signalises fail of lifeline connection ( if this bit is zero fail of lifeline connection is not signalised ) When slave bit is 1: - lamp checks presence of Z-Wave device in lifeline group ( gateway ). If it is not present for 2 minutes ( testing repeatedly every 30 seconds ) device switches to normal mode in the same way as after the end of local disabled mode ( ON_BEHAVIOUR ) - The device checks every 1 minute for recovery of Lifeline connection. - if no lifeline specified - it works in normal mode Be careful with this option, lamp stops using it’s own motion sensor in Slave and Stupid mode. 0 1 0 0 2 From To Description 0 0 Normal mode 1 1 Slave mode without gateway checking 2 2 Normal mode with lifeline error signalisation 3 3 Slave mode with gateway checking 4 4 Stupid mode - lamp permanetly on
Texts	ID Description Value 2 Exclusion To put the device into exclusion mode, turn the device's control dial (F) to ""Set"" and back to ""0"" within 5 seconds. The red status LED (G) lights up to show that this mode is selected. Removing XLED home 2 from the Smart Friends system: 1) In the rooms view, activate the edit mode. 2) Select the device in the chosen room and press the ""delete"" button. Press delete and follow the instructions in the app. 3) To put the device into exclusion mode, turn the device's control dial (F) to ""Set"" and back to ""0"" within 5 seconds. The red status LED (G) lights up to show that this mode is selected. 4) The app displays a confirmation message once exclusion has been successfully completed. 1 Inclusion To put the device into inclusion mode, turn the device's control dial (F) to ""Set"" and back to ""0"" within 5 seconds. The status LED (G) lights up to show that this mode is selected. Adding XLED home 2 to the Smart Friends system: 1) Download the Smart Friends app from the app store. 2) In the rooms view, activate the edit mode. 3) Select the chosen room and press the ""Add device"" button. 4) To put the device into inclusion mode, turn the device's control dial (F) to ""Set"" and back to ""0"" within 5 seconds. The status LED (G) lights up to show that this mode is selected. 5) The app displays a confirmation message once inclusion has been successfully completed. 6 Additional Special Features Setting XLED home 2 with the app: –– After programming, an ON/OFF scene is automatically created in the app. –– The following setting values are then automatically stored: a) Twilight setting = control-dial setting b) Time setting = 3 min switch-OFF delay –– The twilight and time settings can be selected to the accuracy of one lux and one second respectively in the ""Scene"" menu. 5 Factory Reset Resetting XLED home 2 to factory settings: Please use this procedure only when the network primary controller is missing or otherwise inoperable. 1) Turn the device's control dial (F) to ""Set"" and move it to ""Reset"" within 5 seconds. 2) The status LED (G) briefly flashes to show that the light has been reset. 3) The device is now no longer included in the Z-Wave system and has been returned to factory settings.
Supported Notification Types	Notification Type Event / State Home Security (Refer to parameters): State idle System (Refer to parameters): State idle
Supported Multilevel Sensors	Multilevel Sensor Type 0x02 Illuminance
Supports NWI	Yes
Supports Explorer Frames	Yes
