Product Recognition | |
|---|
Certification Number | ZC10-18046095 |
|---|

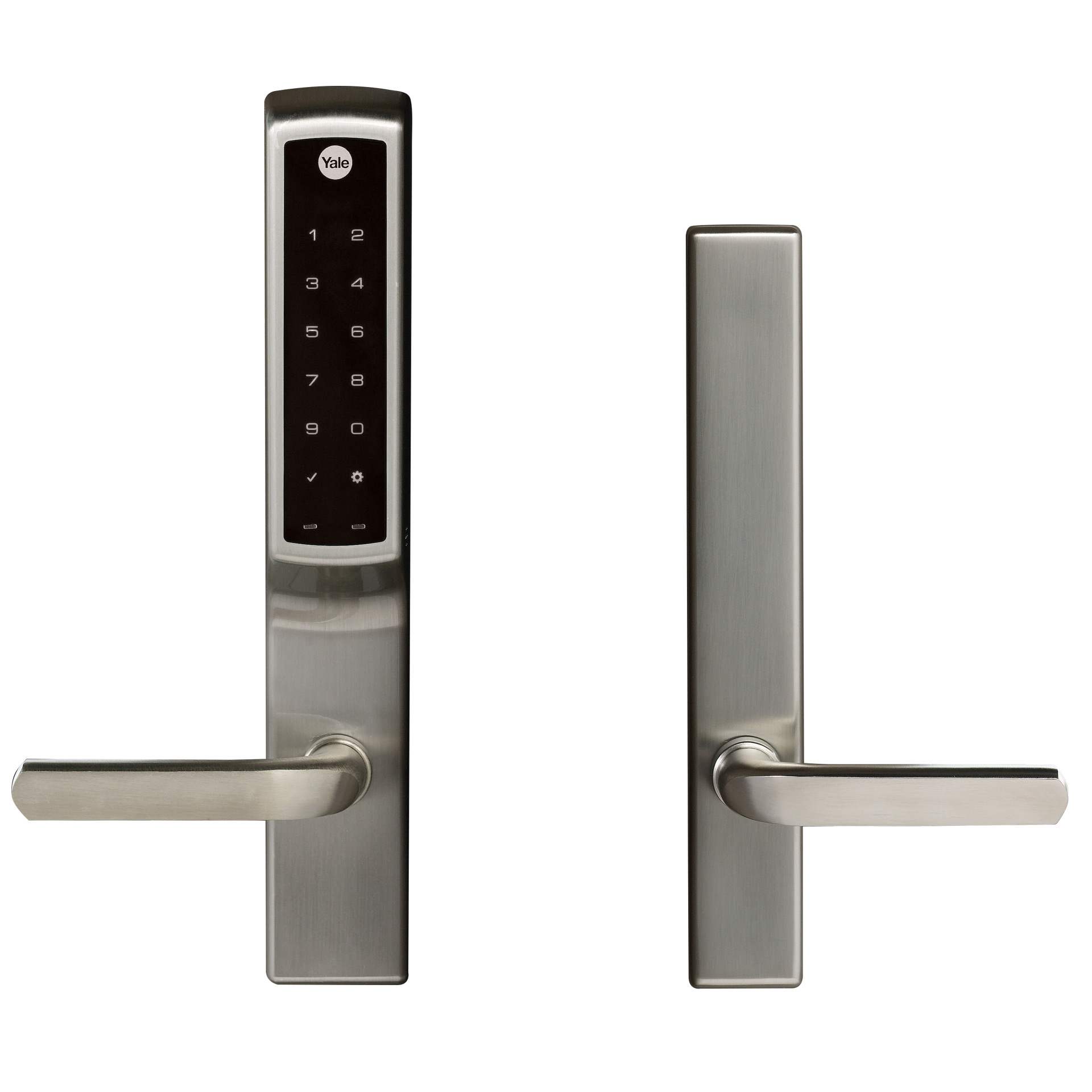

Name | Yale Assure Lock for Andersen Patio Doors |
|---|
Short Description | Yale Assure Lock for Andersen Patio Doors |
|---|
Long Description | Yale Assure Lock® is a secure, keyless lock developed by Yale exclusively available with Andersen Patio Doors (E-Series and A-Series hinged patio doors). Monitor, lock and unlock from anywhere with your Yale Assure Lock featuring Andersen’s VeriLock™ sensor technology and integrate into a compatible home automation or security system.
Yale nexTouch offers many benefits for the small business owner, including easy management of employee access rights and attendance, seeing to unattended deliveries, monitoring of business hours, managing remote locations, and increased security. Lock features may vary based on the chosen integration system, but typically include accommodation of up to 500 users, real-time notifications, audit trail, scheduling of access rights and remote access. To meet small business security needs Yale nexTouch locks are ANSI/BHMA Grade 1 certified, UL listed for use on fire doors and windstorm listed. The product is designed for standard commercial doors, ideal for employee, delivery or back entrances. The lock is available with a backlit push button or touchscreen keypad, the latter offering low battery and tamper alarm indicators on the device. |
|---|
Brand | Yale |
|---|
Product Identifier | YRM276-ZW2 |
|---|
OEM Version | HW: 255 FW: 1.78:28.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0129 |
|---|
Product Type ID | 0x8014 |
|---|
Product ID | 0x1600 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TIME_V2 | Time V2 | 0x8A | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_DOOR_LOCK_LOGGING | Door Lock Logging | 0x4C | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 | COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 | Schedule Entry Lock V3 | 0x4E | 3 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Outdoor Use | | Supported Notification Types | Value |
|---|
Access Control | Power Management |
| Battery Quantity | | Battery Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Sensors | Value |
|---|
Open/Closed (Binary) |
| Door Lock Type | Value |
|---|
Deadbolt Motor Attachment |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Auto Relock On/Off | 0x00 = OFF, 0xFF = ON default is 0x00 or OFF | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
-128 | -128 | Auto Relock On | 0 | 0 | Auto Relock Off |
| 5 | Language | Set the lock language. Default is 1= English | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | English Language | 2 | 2 | Spanish Language | 3 | 3 | French Language |
| 7 | Shut Down Time (after wrong code entries) | 10 to 127 seconds default is 60 seconds | 0 | 1 | 0 | 0 | 60 | From | To | Description |
|---|
10 | 127 | Seconds |
| 8 | Operating Mode | This sets the operating mode for the lock. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Normal Mode (Default) | 1 | 1 | Vacation Mode (Keypad Locked Out) | 2 | 2 | Privacy Mode (Keypad Locked, RF Unlock Functional) |
| 11 | One Touch Locking | 0x00 = OFF, 0xFF = ON default is 0xFF or ON. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
-128 | -128 | One Touch Locking On | 0 | 0 | One Touch Locking Off |
| 4 | Wrong Code Entry Limit | 3 to 10 default is 5 times | 0 | 1 | 0 | 0 | 5 | From | To | Description |
|---|
3 | 10 | Times |
| 1 | Silent Mode on/off | Level control, 1, 2, 3 default is 1. Levels are 1 and 3 for models with no spoken prompts default is 1 or high | 0 | 1 | 0 | 0 | 1 | |
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | 1. Enter the 4-8 digit master PIN code followed by the gear key.
2. Press the 7 key followed by the gear key.
3. Press the 3 key followed by the gear key. | 1 | Inclusion | 1. Enter the 4-8 digit master PIN code followed by the gear key.
2. Press the 7 key followed by the gear key.
3. Press the 1 key followed by the gear key. | 5 | Factory Reset | Please use this procedure only when the network primary controller is missing or otherwise inoperable.
When resetting the lock, all user codes,including the Master code*, are deleted. All programming features are reset to the original default settings.
1. Remove the battery cover and batteries.
2. Remove the interior lock to access the reset button.
3. The reset button is located above the cable connectors. PCB
4. Re-insert 3 batteries and hold the reset button for 3 seconds.
5. While still holding the reset button, insert the 4th battery, and hold the reset button for an additional 3 seconds.
6. Release the reset button.
7. Re-install the interior lock onto the door.Upon reset, Master Code creation is the PIN only option available and must be performed prior to any other programming of the lock.
For best results, the lock should be installed on the door when resetting the lock to factory default. If the process was done and the lock was not installed on the door, review the Re-Handing instructions listed in Hardware Troubleshooting. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle | Power Management | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
