Certification Number	ZC10-22067101

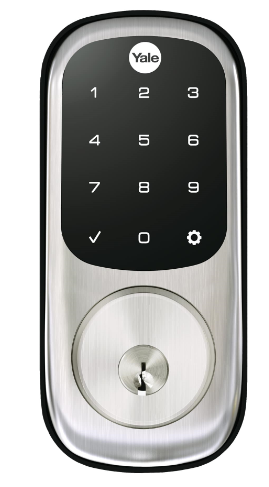

Name	Yale Assure Lock Touchscreen Deadbolt
Short Description	Lock and unlock your door with ease using the touchscreen keypad. Integrate your Yale lock into your Z-Wave Plus™ home automation or security system for ultimate convenience.
Long Description	Never worry about carrying around or losing your keys again. Unlock and lock your home with ease from the backlit touchscreen keypad. Create unique pin codes for friends and family and remove codes whenever you need to. This Yale Real Living lock features Z-Wave Plus™ technology and seamlessly integrates into 50+ home automation and security systems. When added to most Z-Wave Plus™ automation systems, lock and unlock your door, create pin codes, view access history and receive notifications from anywhere. The lock is tamper resistant, easy to install and even easier to use!
Brand	Yale Locks & Hardware
Product Identifier	NF-YRD622-ZW2
Product Line	Yale
OEM Version	HW: 1 FW: 1.78:21.07
Hardware Platform	ZM5101
Z-Wave Version	6.51.07
Library Type	SLAVE_ENHANCED_232
Device Type	Door Lock - Keypad
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x0129
Product Type ID	0x8109
Product ID	0x0DD2
User Icon	0x0300
Installer Icon	0x0300
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Locks
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_DOOR_LOCK_V2 Door Lock V2 0x62 2 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security 0 0x98 1 COMMAND_CLASS_TIME_V2 Time V2 0x8A 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_DOOR_LOCK_LOGGING Door Lock Logging 0x4C 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4 COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 Schedule Entry Lock V3 0x4E 3
Documents	Category Description File Manual_Primary_Lang Product Manual Binder1.pdf
Features	Feature Values Battery Quantity Battery Type Door Lock Type Value Deadbolt Firmware Updatable Value Not Updatable IP (Ingress Protection) Rated Outdoor Use Sensors Supported Notification Types
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Description 1 1 0 Lifeline Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 2 Auto Relock on/off 0x00 = OFF, 0xFF = ON default is 0x00 or OFF 0 1 0 255 0 From To Description 0 0 Auto Relock On 255 255 Auto Relock OFF 4 Wrong Code Entry Limit 3 to 10 default is 5 times 0 1 3 10 5 From To Description 3 10 Wrong Code Entry Limit 8 Operating Mode 00 = normal mode (this is the default mode) 01 = vacation mode, keypad lockout 02 = privacy mode, no keypad. RF Unlock will work 0 1 0 2 0 From To Description 0 0 Normal Mode 1 1 Vacation Mode 2 2 Privacy Mode 11 One Touch Locking 0x00 = OFF, 0xFF = ON default is 0xFF or ON. 0 1 0 255 0 From To Description 0 0 One Touch Locking Off 255 255 One Touch Locking On 1 Silent Mode on/off Level control, 1 = High Volume, 2 = Low Volume, 3 = Silent. Default is 2 or Low Volume 0 1 1 3 2 From To Description 1 3 Sound level 5 Language 1=English, 2=Spanish, 3=French default is 1= English 0 1 1 3 1 From To Description 1 1 English 2 2 Spanish 3 3 French 7 Shut Down Time (After wrong codes) 10 to 180 seconds default is 60 seconds 0 1 10 180 60 From To Description 10 180 Seconds
Texts	ID Description Value 4 Wake-Up Procedure Press the Yale logo to wake the lock. You will be guided through setup by audio instructions on the lock. Additional entry codes and further programming can be done through the Settings Menu. Refer to page 19 for YRD226 or page 20 for YRD620/YRD622. 5 Factory Reset Procedure Remove the battery cover and batteries. Remove the interior escutcheon to access the reset button. The reset button is located above the PCB cable connector. While pressing the reset button for a minimum of 3 seconds, reinstall batteries. Release reset button. Replace battery cover. Please use this procedure only when the network primary controller is missing or otherwise inoperable 1 Classic Inclusion Enter the 4-8 master Pin code followed by the gear key. Press the 7 key followed by the gear key Press the 1 key followed by the gear key 2 Classic Exclusion Enter the 4-8 digit master pin code followed by the gear key Press the 7 key followed by the gear key Press the 3 key followed by the gear key
Supported Notification Types	Notification Type Event / State Access Control (Refer to parameters): State idle Home Security (Refer to parameters): State idle Power Management (Refer to parameters): State idle
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
