Product Recognition | |
|---|
Certification Number | ZC10-19066547 |
|---|

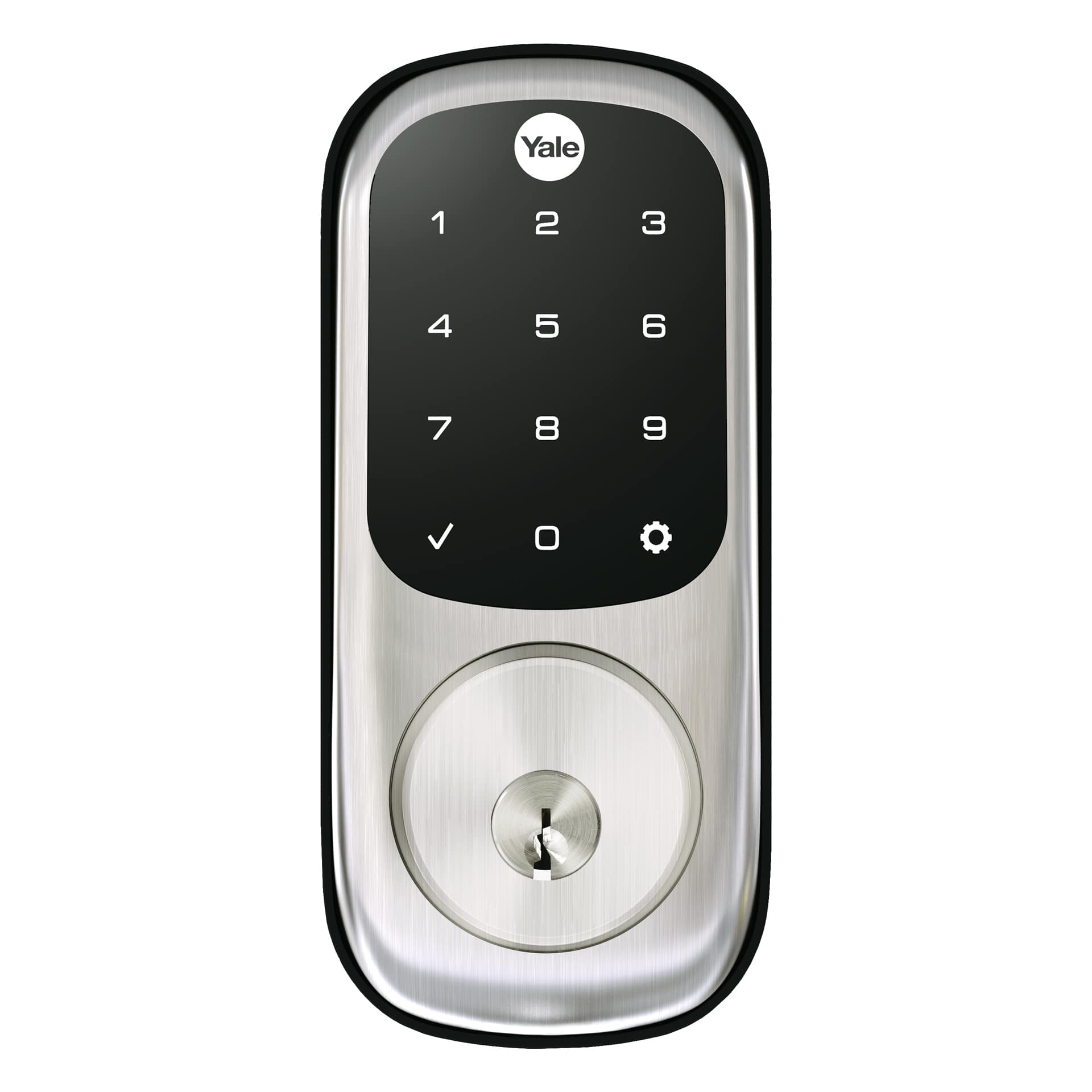

Name | Yale Assure Lock Touchscreen Deadbolt |
|---|
Short Description | Lock and unlock your door with ease using the touchscreen keypad. Integrate your Yale lock into your Z-Wave home automation or security system for ultimate convenience. |
|---|
Long Description | Never worry about carrying around or losing your keys again. Unlock and lock your home with ease from the backlit touchscreen keypad. Create unique pin codes for friends and family and remove codes whenever you need to. This Yale Real Living lock features Z-Wave technology and seamlessly integrates into 50+ home automation and security systems. When added to most Z-Wave automation systems, lock and unlock your door, create pin codes, view access history and receive notifications from anywhere. The lock is tamper resistant, easy to install and even easier to use! |
|---|
Brand | Yale Locks & Hardware |
|---|
Product Identifier | YRD620-ZW2 |
|---|
OEM Version | HW: 255 FW: 1.78:24.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0129 |
|---|
Product Type ID | 0x800E |
|---|
Product ID | 0x1200 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TIME_V2 | Time V2 | 0x8A | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_DOOR_LOCK_LOGGING | Door Lock Logging | 0x4C | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 | COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 | Schedule Entry Lock V3 | 0x4E | 3 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Sensors | Value |
|---|
Open/Closed (Binary) |
| Outdoor Use | | Battery Quantity | | Battery Type | | Door Lock Type | Value |
|---|
Deadbolt Motor Attachment |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| IP (Ingress Protection) Rated | | Supported Notification Types | Value |
|---|
Access Control | Home Security | Power Management |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
5 | Language | 1=English, 2=Spanish, 3=French default is 1= English | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | English | 2 | 2 | Spanish | 3 | 3 | French |
| 7 | Shut Down Time (After wrong codes) | 10 to 180 seconds default is 60 seconds | 0 | 1 | 0 | 0 | 60 | From | To | Description |
|---|
10 | 127 | Seconds |
| 8 | Operating Mode | 00 = normal mode (this is the default mode) 01 = vacation mode, keypad lockout 02 = privacy mode, no keypad. RF Unlock will work | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Normal Mode | 1 | 1 | Vacation Mode | 2 | 2 | Privacy Mode |
| 11 | One Touch Locking | 0x00 = OFF, 0xFF = ON default is 0xFF or ON. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | One Touch Locking Off | -128 | -128 | One Touch Locking On |
| 2 | Auto Relock on/off | 0x00 = OFF, 0xFF = ON default is 0x00 or OFF | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
-128 | -128 | Auto Relock On | 0 | 0 | Auto Relock OFF |
| 4 | Wrong Code Entry Limit | 3 to 10 default is 5 times | 0 | 1 | 0 | 0 | 5 | From | To | Description |
|---|
3 | 10 | Times |
| 1 | Silent Mode on/off | Level control, 1, 2, 3 default is 1. Levels are 1 and 3 for models with no spoken prompts default is 1 or high volume | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 3 | Sound level |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Enter the 4-8 master Pin code followed by the gear key.
Press the 7 key followed by the gear key
Press the 1 key followed by the gear key | 2 | Exclusion | Enter the 4-8 digit master pin code followed by the gear key
Press the 7 key followed by the gear key
Press the 3 key followed by the gear key | 5 | Factory Reset | Remove the battery cover and batteries.
Remove the interior escutcheon to access the reset button.
The reset button is located above the PCB cable connector.
While pressing the reset button for a minimum of 3 seconds, reinstall batteries. Release reset button.
Replace battery cover.
Please use this procedure only when the network primary controller is missing or otherwise inoperable |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle | Home Security | (Refer to parameters): State idle | Power Management | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
