Certification Number | ZC10-23027123 |
|---|
Name | Yale Real Living® Assure Lock™ Interconnected |
|---|

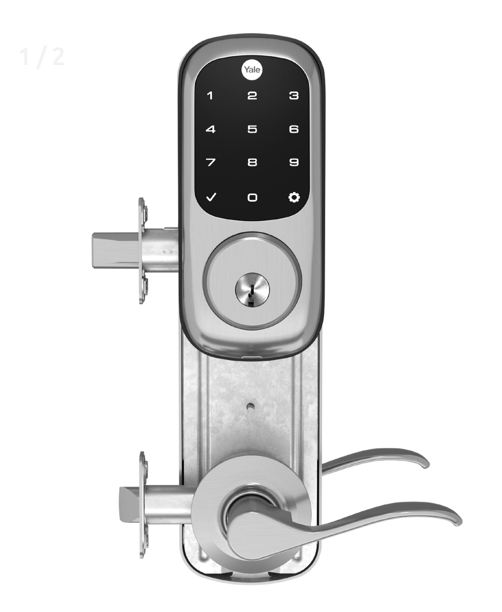

Short Description | Yale Real Living Assure Lock Interconnected combines electronic deadbolts with the convenience of a passage lever for panic proof egress. From the inside, both the latchbolt and the deadbolt are retracted simultaneously in a single motion for a quick and easy exit. This lock works with Z-Wave™ technology and also comes in 12 finishes. |
|---|
Long Description | Yale Real Living Assure Lock Interconnected combines electronic deadbolts with the convenience of a passage lever for panic proof egress. From the inside, both the latchbolt and the deadbolt are retracted simultaneously in a single motion for a quick and easy exit. This lock works with Z-Wave™ technology and also comes in 12 finishes. |
|---|
Brand | Yale |
|---|
Product Identifier | YRC620-ZW2 |
|---|
OEM Version | HW: 255 FW: 1.78:32.33 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0129 |
|---|
Product Type ID | 0x8103 |
|---|
Product ID | 0x12C2 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_TIME_V2 | Time V2 | 0x8A | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta Data V3 | 0x7A | 3 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_DOOR_LOCK_LOGGING | Door Lock Logging | 0x4C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 | COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 | Schedule Entry Lock V3 | 0x4E | 3 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Sensors | | Battery Type | | IP (Ingress Protection) Rated | | Outdoor Use | | Door Lock Type | | Firmware Updatable | | Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 1 | 0 | Lifeline | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Auto Relock on/off | 0x00 = OFF, 0xFF = ON default is 0x00 or OFF | 0 | 1 | 0 | 255 | 0 | From | To | Description |
|---|
255 | 255 | Auto Relock OFF | 0 | 0 | Auto Relock On |
| 1 | Silent Mode on/off | Level control, 1 = High Volume, 2 = Low Volume, 3 = Silent. Default is 1 or High Volume | 0 | 1 | 1 | 3 | 1 | From | To | Description |
|---|
1 | 3 | Sound level |
| 4 | Wrong Code Entry Limit | 3 to 10 default is 5 times | 0 | 1 | 3 | 10 | 5 | From | To | Description |
|---|
3 | 10 | Times |
| 5 | Language | 1=English, 2=Spanish, 3=French default is 1= English | 0 | 1 | 1 | 3 | 1 | From | To | Description |
|---|
2 | 2 | Spanish | 3 | 3 | French | 1 | 1 | English |
| 8 | Operating Mode | 00 = normal mode (this is the default mode)
01 = vacation mode, keypad lockout
02 = privacy mode, no keypad. RF Unlock will work | 0 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
1 | 1 | Vacation mode | 2 | 2 | Privacy mode | 0 | 0 | Normal mode |
| 7 | Shut Down Time (After wrong codes) | 10 to 180 seconds default is 60 seconds | 0 | 1 | 10 | 180 | 60 | From | To | Description |
|---|
10 | 180 | Seconds |
| 11 | One Touch Locking | 0x00 = OFF, 0xFF = ON default is 0xFF or ON. | 0 | 1 | 0 | 255 | 0 | From | To | Description |
|---|
255 | 255 | One Touch Locking Off | 0 | 0 | One Touch Locking On |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | Enter the 4-8 master Pin code followed by the gear key.
Press the 7 key followed by the gear key
Press the 1 key followed by the gear key | 2 | Classic Exclusion | Enter the 4-8 digit master pin code followed by the gear key
Press the 7 key followed by the gear key
Press the 3 key followed by the gear key | 5 | Factory Reset Procedure | Remove the battery cover and batteries.
Remove the interior escutcheon to access the reset button.
The reset button is located above the PCB cable connector.
While pressing the reset button for a minimum of 3 seconds, reinstall batteries. Release reset button.
Replace battery cover.
Please use this procedure only when the network primary controller is missing or otherwise inoperable | 4 | Wake-Up Procedure | Lock Activation |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
