Certification Number | ZC12-21020186 |
|---|

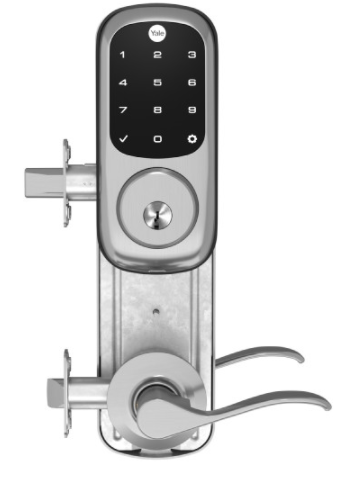

Name | Yale Real Living® Assure Lock™ Interconnected Z-Wave Enabled Touch Screen Deadbolt |
|---|
Short Description | Yale Real Living® Assure Lock® Interconnected combines electronic deadbolts with the convenience of a passage lever for panic proof egress. A key free solution for multi-family housing. |
|---|
Long Description | Yale Real Living® Assure Lock® Interconnect combines electronic deadbolts with the convenience of a passage lever for panic proof egress. A key free solution for multi-family housing. Available with touchscreen or push button keypads and can be customized with 14 different lever choices. |
|---|
Brand | Yale |
|---|
Product Identifier | YRC226-ZW3 |
|---|
Product Line | Yale Assure |
|---|
OEM Version | HW: 2 FW: 2.13:43.19 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.12.2 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Lock |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0129 |
|---|
Product Type ID | 0x8002 |
|---|
Product ID | 0x46C2 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_DOOR_LOCK_V4 | Door Lock V4 | | 0 | COMMAND_CLASS_USER_CODE_V2 | User Code V2 | | 0 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_CLOCK | Clock | 0x81 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TIME_V2 | Time V2 | 0x8A | 2 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_DOOR_LOCK_LOGGING | Door Lock Logging | 0x4C | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 | Schedule Entry Lock V3 | 0x4E | 3 |
|
|---|
S2 Classes | S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Communications Connections | | Communications Protocol | | Battery Quantity | | Controller Supports Multiple Z-Wave Interfaces | | Door Lock Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Battery Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 3 | 0 | Lifeline | the description is lifeline. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Volume | Set Volume Level to high (1), low (2), or silent (3). | 1 | 1 | 1 | 3 | 2 | From | To | Description |
|---|
1 | 3 | Volume |
| 2 | Auto Relock | Set Auto Relock feature to enable or disable. | 2 | 1 | 0 | 255 | 0 | From | To | Description |
|---|
0 | 255 | Auto Relock |
| 4 | Wrong Code Entry Limit | Adjust the limit for wrong code entries allowed by your lock. | 1 | 1 | 0 | 5 | 5 | From | To | Description |
|---|
0 | 5 | Wrong Code Entry Limit |
| 5 | Language | Set the language to English (1), Spanish (2), or French (3). | 1 | 1 | 1 | 3 | 1 | From | To | Description |
|---|
1 | 3 | Language |
| 6 | Shut Down Time | Adjust the time your lock is shutdown after reaching its wrong code entry limit. | 1 | 1 | 0 | 127 | 60 | From | To | Description |
|---|
0 | 127 | Shut Down Time |
| 7 | Operating Mode | Set the Operating Mode to normal mode(0), vacation mode(1) or privacy mode(2). | 1 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 2 | Operating Mode |
| 8 | Reset to Factory Resets | Lock will execute Reset To Factory when parameter is set. | 1 | 1 | 1 | 1 | 1 | From | To | Description |
|---|
1 | 1 | Reset to Factory Resets |
| 11 | One Touch Locking | Set One Touch Locking feature to enable or disable. | 2 | 1 | 0 | 255 | 255 | From | To | Description |
|---|
0 | 255 | One Touch Locking |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | Open Z-Wave system's smart home or alarm app and follow instructions for removing a device
2. On your lock keypad, enter your master entry code followed by the icon
3. Press the 7 key followed by the gear icon
4. Press the 3 key followed by the gear icon | 4 | Wake-Up Procedure | Press Yale logo to wake up lock | 5 | Factory Reset Procedure | Remove the battery cover and batteries.
Remove the interior escutcheon to access the reset button.
The reset button is located above the PCB cable connector.
While pressing the reset button for a minimum of 3 seconds, reinstall batteries. Release reset button.
Replace battery cover.
Please use this procedure only when the network primary controller is missing or otherwise inoperable | 6 | Other Special Features | Paragraph 8. Compability/ Principles for regulation. Water based heating - Electrical heating.
Paragraph 9. Information shown in display. The main screen - Secondary screen - Connecting to an external relay.
Paragraph 10. Hysteresis.
Paragraph 11. Child lock.
Paragraph 12. Standby and main screen. | 8 | Where to find S2 DSK on product | Sticker on module and insert | 1 | Classic Inclusion | Install Yale Smart Module into slot above battery compartment
IMPORTANT: Batteries must be removed before inserting Yale Smart Module:
• Remove battery cover
• Remove batteries
• Insert Yale Smart Module
• Reinstall batteries
• Reinstall battery cover
2. Open Z-Wave system's smart home or alarm app on your smartphone or tablet
3. If you have Smart Start* enabled with your Z-Wave System follow in-app prompts to add a new device
If you don't have smart start or are not sure, follow steps 4 - 6
4. On your lock keypad, enter your master entry code followed by the gear icon
5. Press the 7 key followed by the gear icon
6. Press the 1 key followed by the gear icon |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle | Access Control | Manual lock operation | Access Control | Manual unlock operation | Access Control | RF lock operation | Access Control | RF unlock operation | Access Control | Keypad lock operation | Access Control | Keypad unlock operation | Access Control | Manual not fully locked operation | Access Control | RF not fully locked operation | Access Control | Auto lock locked operation | Access Control | Auto lock not fully locked operation | Access Control | Lock state: Lock jammed | Access Control | All user codes deleted | Access Control | Single user code deleted | Access Control | New user code added | Access Control | New user code not added due to duplicate code | Access Control | Keypad state: Keypad temporary disabled | Access Control | Keypad state: Keypad busy | Access Control | New program code entered : unique code for lock configuration | Access Control | Manually enter user access code exceeds code limit | Access Control | Unlock by RF with invalid user code | Access Control | Locked by RF with invalid user code | Access Control | Door state: Window/door is open | Access Control | Door state: Window/door is closed | Power Management | Power status: Power has been applied | Power Management | Battery maintenance status: Replace battery soon | Power Management | Battery maintenance status: Replace battery now |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
