Product Recognition
Certification Number	ZC10-16095233

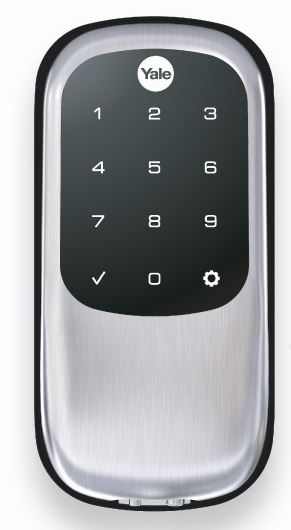

Name	Yale Real Living Key Free Touchscreen Assure Lock with Z-Wave and Bluetooth
Short Description	Lock and unlock your home without the hassle of keys using the backlit, touchscreen keypad. Share digital keys with friends and family, view access history and see the current status of your Assure Lock, all from your Yale Assure app. Integrate into your Z-Wave automation or alarm system for remote access and even more functionality.
Long Description	Lose Your Keys. For Good. Lock and unlock your home without the hassle of keys by simply tapping the keypad when you have your phone, or with a 4-8 digit pin code. Forget lending keys; share digital keys with friends and family using the free Yale Assure app. View access history and battery levels, receive notifications, create pin codes and more all from your smartphone. The lock is simple to install and even easier to use. Features Z-Wave Plus technology for seamless integration into your home's alarm or automation system.
Brand	Yale Locks & Hardware
Product Identifier	YRD446-ZW2
OEM Version	HW: 1 FW: 1.99:02.02
Hardware Platform	ZM5101
Z-Wave Version	6.51.07
Library Type	SLAVE_ENHANCED_232
Device Type	Door Lock - Keypad
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x0129
Product Type ID	0x8002
Product ID	0x0600
User Icon	0x0300
Installer Icon	0x0300
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Locks
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_DOOR_LOCK_V2 Door Lock V2 0x62 2 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_TIME_V2 Time V2 0x8A 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_DOOR_LOCK_LOGGING Door Lock Logging 0x4C 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4 COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 Schedule Entry Lock V3 0x4E 3
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual WGA6ZWManual.pdf
Features	Feature Values Battery Quantity Value 4 Battery Type Value AA Door Lock Type Value Deadbolt Motor Attachment Firmware Updatable Value Updatable by Consumer by RF IP (Ingress Protection) Rated Outdoor Use Sensors Value Open/Closed (Binary)
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Silent Mode on/off Level control, 1, 2, 3 default is 1. Levels are 1 and 3 for models with no spoken prompts default is 1 or high 0 1 0 0 1 From To Description 1 3 Sound level 2 Auto Relock on/off 0x00 = OFF, 0xFF = ON default is 0x00 or OFF 0 1 0 0 0 From To Description 0 0 Auto Relock OFF -128 -128 Auto Relock On 4 Wrong Code Entry Limit 3 to 10 default is 5 times 0 1 0 0 5 From To Description 3 10 Times 7 Shut Down Time (After wrong codes) 10 to 127 seconds default is 60 seconds 0 1 0 0 60 From To Description 10 127 Seconds 11 One Touch Locking 0x00 = OFF, 0xFF = ON default is 0xFF or ON. 0 1 0 0 0 From To Description 0 0 One Touch Locking Off -128 -128 One Touch Locking On 5 Language 1=English, 2=Spanish, 3=French default is 1= English 0 1 0 0 1 From To Description 2 2 Spanish 1 1 English 3 3 French 8 Operating Mode 00 = normal mode (this is the default mode) 01 = vacation mode, keypad lockout 02 = privacy mode, no keypad. RF Unlock will work 0 1 0 0 0 From To Description 0 0 Normal Mode 1 1 Vacation Mode 2 2 Privacy Mode
Texts	ID Description Value 1 Inclusion Enter the 4-8 master Pin code followed by the gear key. Press the 7 key followed by the gear key Press the 1 key followed by the gear key 2 Exclusion Enter the 4-8 digit master pin code followed by the gear key Press the 7 key followed by the gear key Press the 3 key followed by the gear key 5 Factory Reset Remove the battery cover and batteries. Remove the interior escutcheon to access the reset button. The reset button is located above the PCB cable connector. While pressing the reset button for a minimum of 3 seconds, reinstall batteries. Release reset button. Replace battery cover. Please use this procedure only when the network primary controller is missing or otherwise inoperable
Supported Multilevel Sensors	Multilevel Sensor Type 0x02
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
