| Product Recognition | |
|---|
| Certification Number | ZC10-16095227 |
|---|

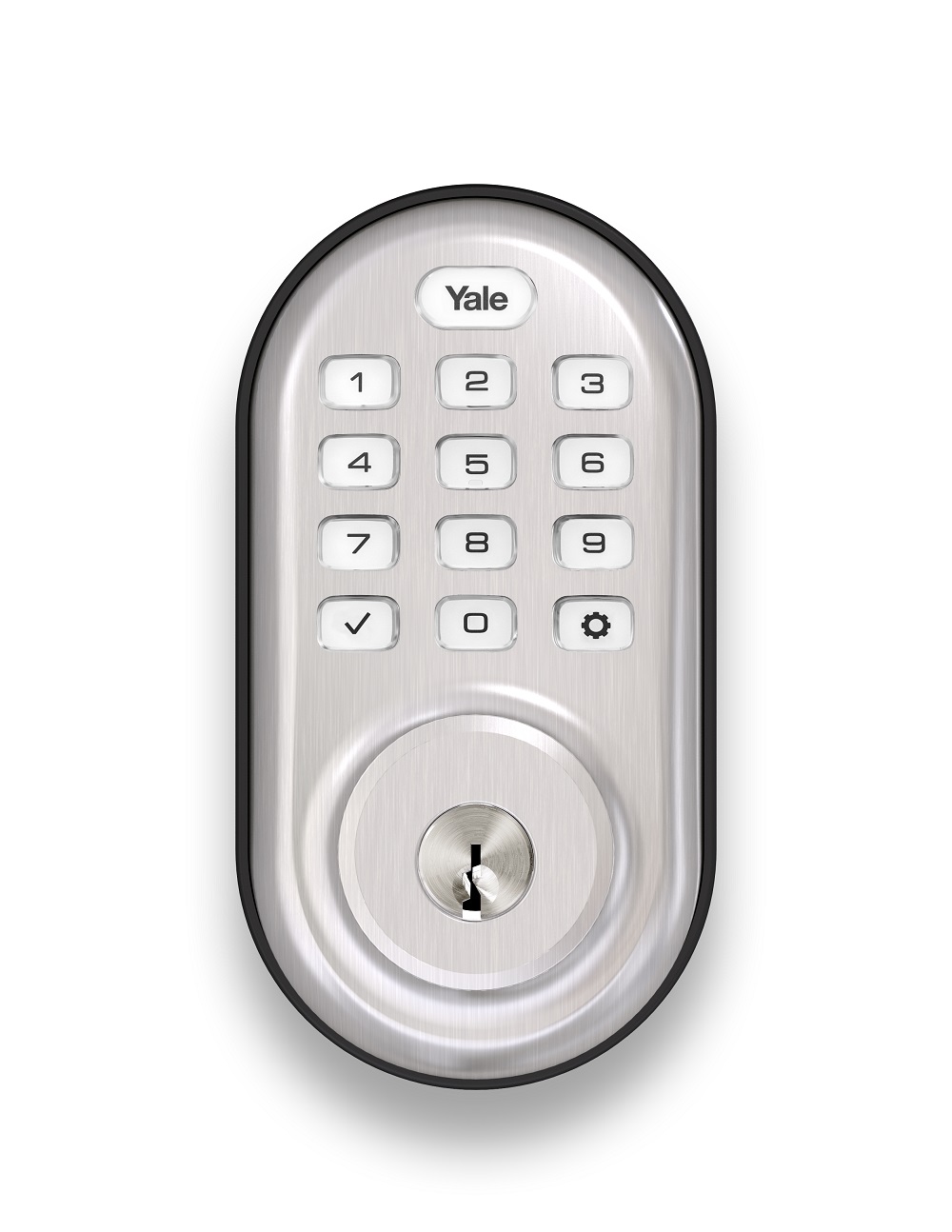

| Name | Yale Real Living Push Button Assure Lock with Z-Wave |
|---|
| Short Description | Lock and unlock your door with ease using the push button keypad. Integrate your Yale lock into your Z-Wave home automation or security system for ultimate convenience. |
|---|
| Long Description | Never worry about carrying around or losing your keys again. Unlock and lock your home with ease from the backlit push button keypad. Create unique pin codes for friends and family and remove codes whenever you need to. This Yale Real Living lock features Z-Wave technology and seamlessly integrates into 50+ home automation and security systems. When added to most Z-Wave automation systems, lock and unlock your door, create pin codes, view access history and receive notifications from anywhere. The lock is tamper resistant, easy to install and even easier to use! |
|---|
| Brand | Yale Locks & Hardware |
|---|
| Product Identifier | YRD216-ZW2 |
|---|
| OEM Version | HW: 1 FW: 1.63:02.02 |
|---|
| Hardware Platform | ZM5101 |
|---|
| Z-Wave Version | 6.51.07 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | Door Lock Keypad |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
| Manufacturer ID | 0x0129 |
|---|
| Product Type ID | 0x8004 |
|---|
| Product ID | 0x0600 |
|---|
| User Icon | 0300 |
|---|
| Installer Icon | 0300 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | Locks |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | | Category | Description | File |
|---|
| Manual_Primary_Lang | Product or Owner's Manual | WGA6ZWManual.pdf |
|
|---|
| Features | | Feature | Values |
|---|
| Battery Quantity | | | Battery Type | | | Door Lock Type | | Value |
|---|
| Deadbolt Motor Attachment |
| | Firmware Updatable | | Value |
|---|
| Updatable by Manufacturer |
| | Outdoor Use | |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Configuration Parameters | | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
| 2 | Auto Relock On/Off | 0x00 = OFF, 0xFF = ON default is 0x00 or OFF | 0 | 1 | 0 | 0 | 0 | | From | To | Description |
|---|
| 0 | 0 | Auto Relock Off | | -128 | -128 | Auto Relock On |
| | 4 | Wrong Code Entry Limit | 3 to 10 default is 5 times | 0 | 1 | 0 | 0 | 5 | | From | To | Description |
|---|
| 3 | 10 | Times |
| | 5 | Language | Set the lock language. Default is 1= English | 0 | 1 | 0 | 0 | 1 | | From | To | Description |
|---|
| 1 | 1 | English Language | | 2 | 2 | Spanish Language | | 3 | 3 | French Language |
| | 7 | Shut Down Time (after wrong code entries) | 10 to 127 seconds default is 60 seconds | 0 | 1 | 0 | 0 | 60 | | From | To | Description |
|---|
| 10 | 127 | Seconds |
| | 8 | Operating Mode | This sets the operating mode for the lock. | 0 | 1 | 0 | 0 | 0 | | From | To | Description |
|---|
| 0 | 0 | Normal Mode (Default) | | 1 | 1 | Vacation Mode (Keypad Locked Out) | | 2 | 2 | Privacy Mode (Keypad Locked, RF Unlock Functional) |
| | 11 | One Touch Locking | 0x00 = OFF, 0xFF = ON default is 0xFF or ON. | 0 | 1 | 0 | 0 | 0 | | From | To | Description |
|---|
| 0 | 0 | One Touch Locking Off | | -128 | -128 | One Touch Locking On |
| | 1 | Silent Mode on/off | Level control, 1, 2, 3 default is 1. Levels are 1 and 3 for models with no spoken prompts default is 1 or high | 0 | 1 | 0 | 0 | 1 | |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | 1. Enter the 4-8 digit master PIN code followed by the gear key.
2. Press the 7 key followed by the gear key.
3. Press the 1 key followed by the gear key. | | 2 | Exclusion | 1. Enter the 4-8 digit master PIN code followed by the gear key.
2. Press the 7 key followed by the gear key.
3. Press the 3 key followed by the gear key. | | 5 | Factory Reset | Please use this procedure only when the network primary controller is missing or otherwise inoperable.
1. Remove the inside lever with the lever removal tool.
2. Remove battery cover using hex wrench provided with lock.
3. Remove four (4) AA batteries.
4. Remove the 10-32 x 3/4"" pan head screw from the center of the battery housing into the barrel nut of the outside assembly.
5. Remove inside escutcheon. Cables may stay connected.
6. Reinstall batteries
7. On the back of the PC board, push and hold the Reset Button with the lever removal tool for 3 seconds.
8. While continuing the press the reset button, temporarily remove one AA battery.
9. Reinstall the battery
10. Release reset button and wait 15 seconds. Speaker will announce ""Welcome to Yale""
11. Reassemble escutcheon |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
| Is Flirs | Yes |
|---|
