Product Recognition | |
|---|---|
Certification Number | ZC14-22110165 |

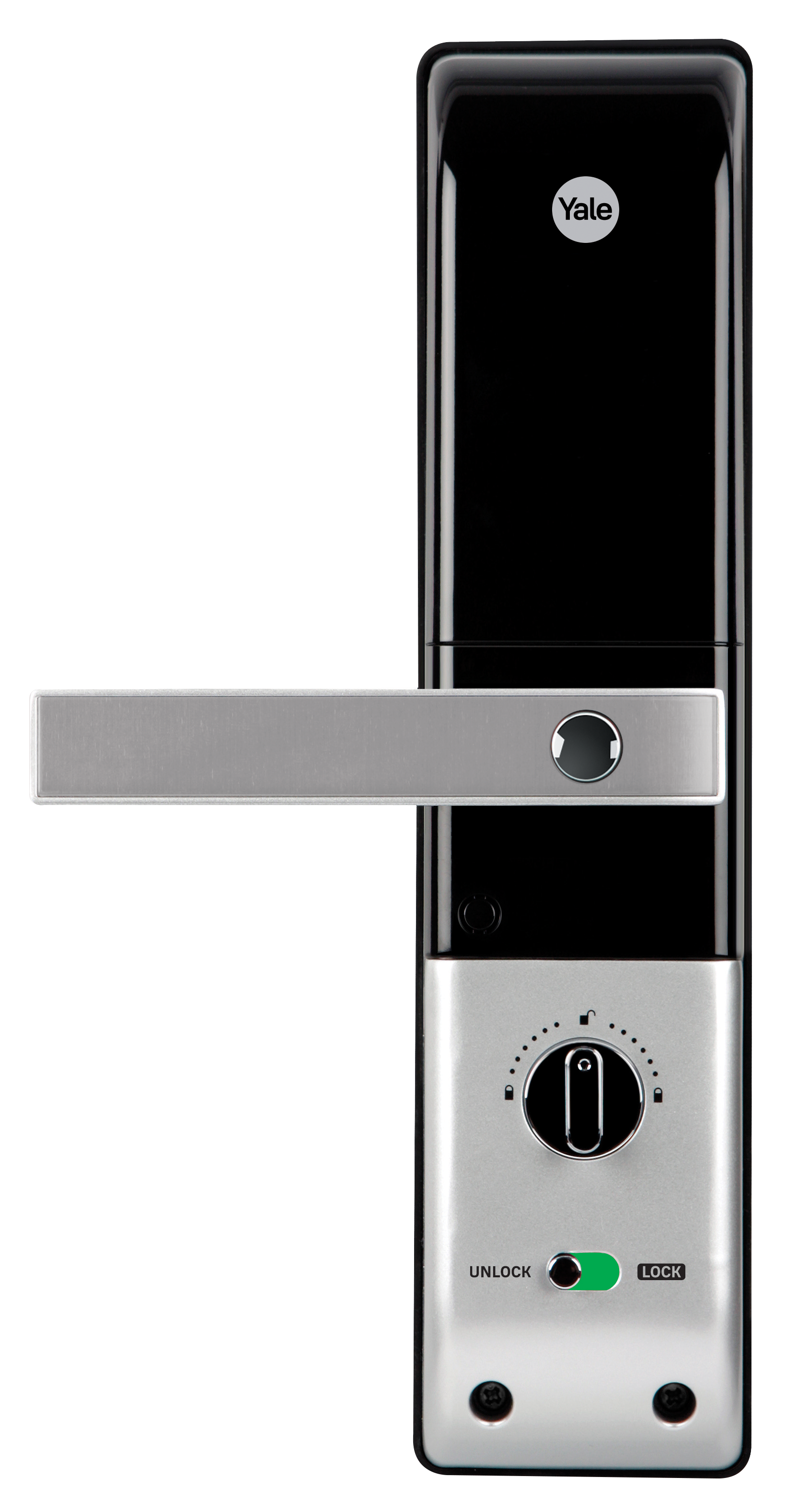

Name | Yale YDM3109A |
Short Description | Never worry about carrying around or losing your keys again. Unlock and lock your home with ease from the backlit touchscreen keypad. |
Long Description | Never worry about carrying around or losing your keys again. Unlock and lock your home with ease from the backlit touchscreen keypad. Create unique pin codes for friends and family and remove codes whenever you need to. This Yale YDM3109A lock features assembled with Z-Wave™ technology and seamlessly integrates into 50+ home automation and security systems. When added to most Z-Wave™ automation systems, lock and unlock your door, create pin codes, view access history and receive notifications from anywhere. The lock is tamper resistant, easy to install and even easier to use! |
Brand | Yale |
Product Identifier | YDM3109A |
Product Line | Yale |
OEM Version | HW: 02 FW: 02.38:02.32 |
Hardware Platform | ZGM130S037HGN2 / ZGM130S037HGN1 |
Z-Wave Version | 7.18.1 |
Library Type | END_NODE_ENHANCED_232 |
Device Type | Lock DT |
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
Manufacturer ID | 0x0129 |
Product Type ID | 0xC006 |
Product ID | 0x5904 |
User Icon | 0x0300 |
Installer Icon | 0x0300 |
Frequency Plans | ANZ: 919.80MHz, 921.40MHz |
Categories | Locks |
Countries / Regions | Malaysia |
Supported Command Classes | |
S2 Classes | S2_ACCESS_CONTROL |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported Notification Types | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Is Flirs | Yes |
Supports SmartStart | Yes |
Radio Range Z-Wave (m) | 40 |
